Trend Line Polynomial

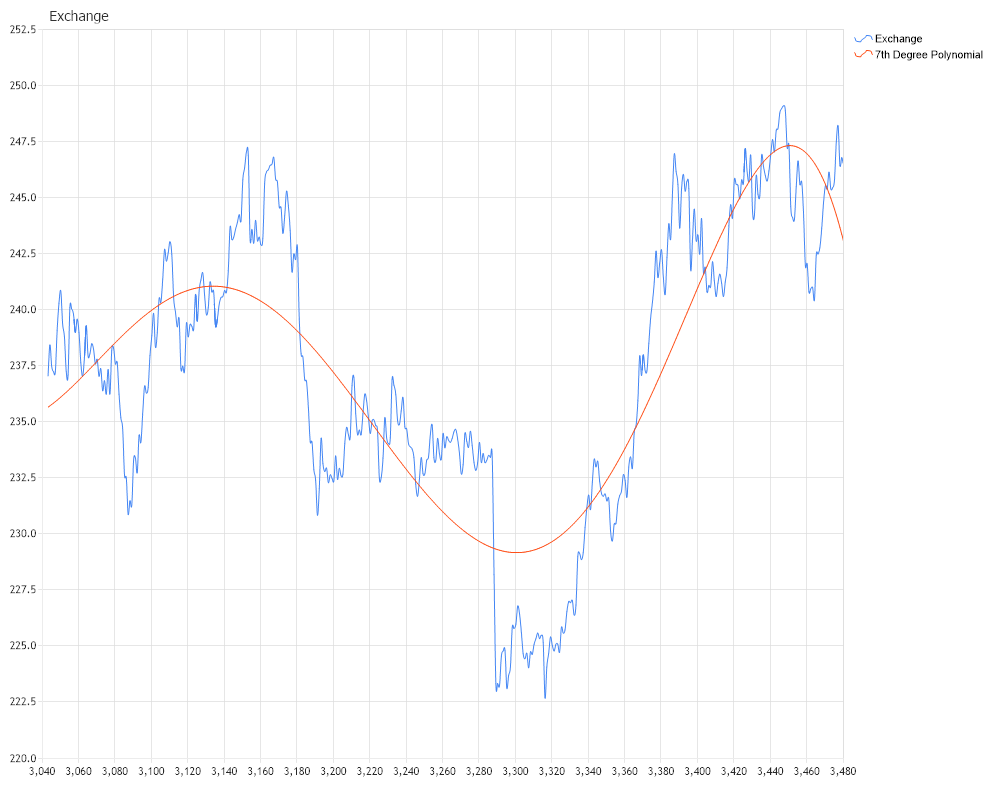

Demonstrates the use of TrendLine Forecasting engine in order to find the function of best fit for the seventh degree polynomial.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING"%>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Forecasting Sample</title>
<script runat="server">

void Page_Load(Object sender,EventArgs e)
{
// Demonstrates the use of TrendLine Forecasting engine in order to
// find the function of best fit for the seventh degree polynom. The data used for which
// the polynom is fit is a set of data which represents a FX exchange rate over a given
// period of time.

// The Forecast Chart
ForecastChart.Title="Exchange";
ForecastChart.TempDirectory="temp";
ForecastChart.Debug=true;
ForecastChart.Size = "1000x800";
ForecastChart.LegendBox.Template ="%icon %name";

ForecastChart.YAxis.ScaleRange.ValueLow = 220;

ForecastChart.Type = ChartType.Scatter;
ForecastChart.XAxis.Minimum = 3040;
ForecastChart.XAxis.Maximum = 3480;
ForecastChart.XAxis.Interval = 20;

// The Forecast data
DataEngine de = new DataEngine ();
de.ConnectionString = ConfigurationManager.AppSettings["DNCConnectionString"];
de.DateGrouping = TimeInterval.Days;
de.StartDate = new DateTime(1983,3,10,0,0,0);
de.EndDate = new DateTime(1984,12,10,23,59,59);
de.SqlStatement= @"SELECT ID, Value AS q FROM Exchange WHERE Data >= #STARTDATE# AND Data <= #ENDDATE# ORDER BY Data ";

//Add a series
SeriesCollection scForecast = de.GetSeries ();
ForecastChart.SeriesCollection.Add (scForecast);

scForecast[0].Name = "Exchange";
scForecast[0].Type = SeriesType.Spline;

/*
* Takes off the marker off the line and spline series.
*/
ForecastChart.DefaultSeries.DefaultElement.Marker = new ElementMarker (ElementMarkerType.None);
ForecastChart.ChartAreaLayout.Mode = ChartAreaLayoutMode.Vertical;

// We generate the best fitting curve of a 7th degree polynom.
Series trendLine = new Series();
trendLine = ForecastEngine.TrendLinePolynomial(scForecast[0], 7);
trendLine.Name = "7th Degree Polynomial";
trendLine.Type = SeriesType.Spline;
ForecastChart.SeriesCollection.Add(trendLine);
}
</script>
</head>
<body>
<div style="text-align:center">

<dotnet:Chart id="ForecastChart" runat="server"/>

</div>
</body>
</html>

<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING"%>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Forecasting Sample</title>
<script runat="server">

Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates the use of TrendLine Forecasting engine in order to
' find the function of best fit for the seventh degree polynom. The data used for which
' the polynom is fit is a set of data which represents a FX exchange rate over a given
' period of time.

' The Forecast Chart
ForecastChart.Title="Exchange"
ForecastChart.TempDirectory="temp"
ForecastChart.Debug=True
ForecastChart.Size = "1000x800"
ForecastChart.LegendBox.Template ="%icon %name"

ForecastChart.YAxis.ScaleRange.ValueLow = 220

ForecastChart.Type = ChartType.Scatter
ForecastChart.XAxis.Minimum = 3040
ForecastChart.XAxis.Maximum = 3480
ForecastChart.XAxis.Interval = 20

' The Forecast data
Dim de As DataEngine = New DataEngine ()
de.ConnectionString = ConfigurationManager.AppSettings("DNCConnectionString")
de.DateGrouping = TimeInterval.Days
de.StartDate = New DateTime(1983,3,10,0,0,0)
de.EndDate = New DateTime(1984,12,10,23,59,59)
de.SqlStatement= "SELECT ID, Value AS q FROM Exchange WHERE Data >= #STARTDATE# AND Data <= #ENDDATE# ORDER BY Data "

'Add a series
Dim scForecast As SeriesCollection = de.GetSeries ()
ForecastChart.SeriesCollection.Add (scForecast)

scForecast(0).Name = "Exchange"
scForecast(0).Type = SeriesType.Spline

'
'* Takes off the marker off the line and spline series.
'
ForecastChart.DefaultSeries.DefaultElement.Marker = New ElementMarker (ElementMarkerType.None)
ForecastChart.ChartAreaLayout.Mode = ChartAreaLayoutMode.Vertical

' We generate the best fitting curve of a 7th degree polynom.
Dim trendLine As Series = New Series()
trendLine = ForecastEngine.TrendLinePolynomial(scForecast(0), 7)
trendLine.Name = "7th Degree Polynomial"
trendLine.Type = SeriesType.Spline
ForecastChart.SeriesCollection.Add(trendLine)
End Sub
</script>
</head>
<body>
<div style="text-align:center">

<dotnet:Chart id="ForecastChart" runat="server"/>

</div>
</body>
</html>

Sample FilenameTrendLinePolynomial.aspx
VersionLegacy (Pre 3.0)
Uses DatabaseYes
