Org DB

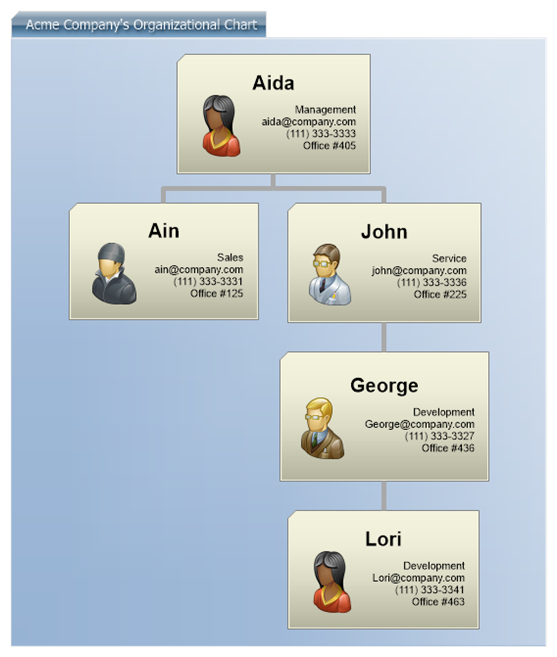

Demonstrates usage of an organizational chart using custom attributes populated from an existing user table by adding instance and parent IDs to establish the org hierarchy.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Trace="false" Description="dotnetCHARTING Component" %>

<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>

<script runat="server">
void Page_Load(Object sender, EventArgs e)
{

// Demonstrates usage of an organizational chart using custom attributes populated from an existing user table by adding instance and parent IDs to establish the org hierarchy.

// Set global properties
Chart.Type = ChartType.Organizational;
Chart.TempDirectory = "temp";
Chart.Debug = true;
Chart.Size = "550X650";

Chart.ChartArea.Background.ShadingEffectMode = ShadingEffectMode.Five;
Chart.ChartArea.Background.Color = Color.FromArgb(250, Color.FromArgb(180, 200, 224));

// TitleBox Customization
Chart.TitleBox.Label.Text = " Acme Company's Organizational Chart";
Chart.TitleBox.Label.Color = Color.White;
Chart.TitleBox.Label.Shadow.Color = Color.FromArgb(105, 0, 0, 0);
Chart.TitleBox.Label.Shadow.Depth = 2;
Chart.TitleBox.Background.ShadingEffectMode = ShadingEffectMode.Two;
Chart.TitleBox.Background.Color = Color.SteelBlue;

// Set the org line style
Chart.DefaultSeries.Line.Width = 5;
Chart.DefaultSeries.Line.Color = Color.DarkGray;

// Set the org annotation visual appearance, shading and layout
Chart.DefaultElement.Annotation = new Annotation();
Chart.DefaultElement.Annotation.Label.Alignment = StringAlignment.Center;
Chart.DefaultElement.Annotation.Background.ShadingEffectMode = ShadingEffectMode.Seven;
Chart.DefaultElement.Annotation.Background.Color = Chart.Palette[2];
Chart.DefaultElement.Annotation.Padding = 15;
Chart.DefaultElement.Annotation.Label.Text = "<block fStyle='bold' fSize='15'>%name<row><img:../../images/Org%picture><block halign='right'>%Department<br>%Email<br>%phone<br>Office #%office";

// Controls the padding of the annotations within the chart area
Chart.ChartArea.Padding = 30;

// Obtain series data from the database. Note this was created by adding PID (parentid)
// to an existing table only, then populating the parentid based on the hiearchy in place.
DataEngine de = new DataEngine(ConfigurationManager.AppSettings["DNCConnectionString"]);
de.SqlStatement = @"SELECT * FROM Employees";
//Select only some users
de.SqlStatement += " WHERE Name LIKE 'Aida' OR Name LIKE 'Ain' OR Name LIKE 'John' OR Name LIKE 'George' OR Name LIKE 'Lori' ";

de.DataFields = "InstanceID=ID,InstanceParentID=PID,Name=Name,office,Department,Email,Phone,Picture";
Chart.SeriesCollection.Add(de.GetSeries());

}
</script>

<html>
<head>
<title>Database Driven Organizational Chart</title>
</head>
<body>
<div style="text-align: center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>

<%@ Page Language="vb" Trace="false" Description="dotnetCHARTING Component" %>

<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>

<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)

' Demonstrates usage of an organizational chart using custom attributes populated from an existing user table by adding instance and parent IDs to establish the org hierarchy.

' Set global properties
Chart.Type = ChartType.Organizational
Chart.TempDirectory = "temp"
Chart.Debug = True
Chart.Size = "550X650"

Chart.ChartArea.Background.ShadingEffectMode = ShadingEffectMode.Five
Chart.ChartArea.Background.Color = Color.FromArgb(250, Color.FromArgb(180, 200, 224))

' TitleBox Customization
Chart.TitleBox.Label.Text = " Acme Company's Organizational Chart"
Chart.TitleBox.Label.Color = Color.White
Chart.TitleBox.Label.Shadow.Color = Color.FromArgb(105, 0, 0, 0)
Chart.TitleBox.Label.Shadow.Depth = 2
Chart.TitleBox.Background.ShadingEffectMode = ShadingEffectMode.Two
Chart.TitleBox.Background.Color = Color.SteelBlue

' Set the org line style
Chart.DefaultSeries.Line.Width = 5
Chart.DefaultSeries.Line.Color = Color.DarkGray

' Set the org annotation visual appearance, shading and layout
Chart.DefaultElement.Annotation = New Annotation()
Chart.DefaultElement.Annotation.Label.Alignment = StringAlignment.Center
Chart.DefaultElement.Annotation.Background.ShadingEffectMode = ShadingEffectMode.Seven
Chart.DefaultElement.Annotation.Background.Color = Chart.Palette(2)
Chart.DefaultElement.Annotation.Padding = 15
Chart.DefaultElement.Annotation.Label.Text = "<block fStyle='bold' fSize='15'>%name<row><img:../../images/Org%picture><block halign='right'>%Department<br>%Email<br>%phone<br>Office #%office"

' Controls the padding of the annotations within the chart area
Chart.ChartArea.Padding = 30

' Obtain series data from the database. Note this was created by adding PID (parentid)
' to an existing table only, then populating the parentid based on the hiearchy in place.
Dim de As DataEngine = New DataEngine(ConfigurationManager.AppSettings("DNCConnectionString"))
de.SqlStatement = "SELECT * FROM Employees"
'Select only some users
de.SqlStatement &= " WHERE Name LIKE 'Aida' OR Name LIKE 'Ain' OR Name LIKE 'John' OR Name LIKE 'George' OR Name LIKE 'Lori' "

de.DataFields = "InstanceID=ID,InstanceParentID=PID,Name=Name,office,Department,Email,Phone,Picture"
Chart.SeriesCollection.Add(de.GetSeries())

End Sub
</script>

<html>
<head>
<title>Database Driven Organizational Chart</title>
</head>
<body>
<div style="text-align: center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>

Sample FilenameOrgDB.aspx
Version5.1
Uses DatabaseYes
