Iterating Shapes

Demonstrates iterating a layer of shape files.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING.Mapping" %>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
<script runat="server">

// Demonstrates iterating through and customizing individual shapes.
void Page_Load(Object sender,EventArgs e)
{
Chart.Type = ChartType.Map;
Chart.Size = "600x600";

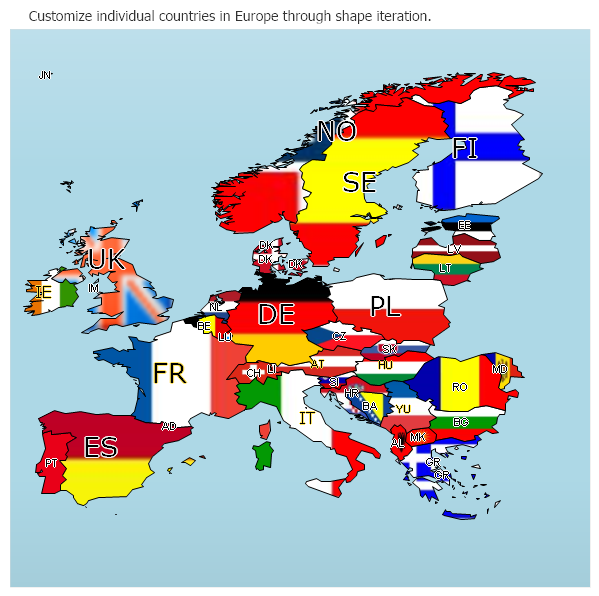

Chart.Title = " Customize individual countries in Europe through shape iteration.";
Chart.TempDirectory = "temp";
Chart.Debug=true;
Chart.TitleBox.Position = TitleBoxPosition.Full;

Chart.ChartArea.Background.Color = Color.LightBlue;
Chart.Mapping.ZoomPercentage = 134;

Chart.Mapping.ZoomCenterPoint = new PointF(52,12);
MapLayer layer = MapDataEngine.LoadLayer("../../images/MapFiles/europe.shp");

Chart.Mapping.DefaultShape.Label.Text = "%Code";
Chart.Mapping.DefaultShape.Label.OutlineColor = Color.White;
Chart.Mapping.DefaultShape.Label.Hotspot.ToolTip = "%Cntry_Name";

Chart.Mapping.MapLayerCollection.Add(layer);

foreach(Shape shape in layer.Shapes)
{
shape.Background.Mode = BackgroundMode.ImageStretch;
string code = (string)shape["code"];
if(code==null)
break;
switch(code.Trim())
{
case "FR":
shape.Background.ImagePath = "../../images/MapFiles/fr.Png";
shape.Label.Font = new Font("Verdana",20);
shape.Label.OutlineColor = Color.Gold;

break;
case "FI":
shape.Background.ImagePath = "../../images/MapFiles/fi.Png";
shape.Label.Font = new Font("Verdana",20);
break;
case "NO":
shape.Background.ImagePath = "../../images/MapFiles/no.Png";
shape.Label.Font = new Font("Verdana",20);
break;
case "SE":
shape.Background.ImagePath = "../../images/MapFiles/se.Png";
shape.Label.Font = new Font("Verdana",20);
break;
case "EE":
shape.Background.ImagePath = "../../images/MapFiles/ee.Png";
break;
case "LV":
shape.Background.ImagePath = "../../images/MapFiles/lv.Png";
break;
case "LT":
shape.Background.ImagePath = "../../images/MapFiles/lt.Png";
break;
case "PL":
shape.Background.ImagePath = "../../images/MapFiles/pl.Png";
shape.Label.Font = new Font("Verdana",20);
break;
case "SK":
shape.Background.ImagePath = "../../images/MapFiles/sk.Png";
break;
case "RO":
shape.Background.ImagePath = "../../images/MapFiles/ro.Png";
break;
case "HU":
shape.Background.ImagePath = "../../images/MapFiles/hu.Png";
shape.Label.OutlineColor = Color.Gold;

break;
case "BG":
shape.Background.ImagePath = "../../images/MapFiles/bg.Png";
break;
case "YU":
shape.Background.ImagePath = "../../images/MapFiles/yu.Png";
shape.Label.OutlineColor = Color.Gold;

break;
case "AL":
shape.Background.ImagePath = "../../images/MapFiles/al.Png";
break;
case "BA":
shape.Background.ImagePath = "../../images/MapFiles/ba.Png";
break;
case "SI":
shape.Background.ImagePath = "../../images/MapFiles/si.Png";
break;
case "AT":
shape.Background.ImagePath = "../../images/MapFiles/at.Png";
shape.Label.OutlineColor = Color.Gold;
break;
case "CZ":
shape.Background.ImagePath = "../../images/MapFiles/cz.Png";
break;
case "DE":
shape.Background.ImagePath = "../../images/MapFiles/de.Png";
shape.Label.Font = new Font("Verdana",20);
break;
case "DK":
shape.Background.ImagePath = "../../images/MapFiles/dk.Png";
break;
case "NL":
shape.Background.ImagePath = "../../images/MapFiles/nl.Png";
break;
case "BE":
shape.Background.ImagePath = "../../images/MapFiles/be.Png";
break;
case "CH":
shape.Background.ImagePath = "../../images/MapFiles/ch.Png";
break;
case "ES":
shape.Background.ImagePath = "../../images/MapFiles/es.Png";
shape.Label.Font = new Font("Verdana",20);
break;
case "PT":
shape.Background.ImagePath = "../../images/MapFiles/pt.Png";
break;
case "UK":
shape.Background.ImagePath = "../../images/MapFiles/uk.Png";
shape.Label.Font = new Font("Verdana",20);
break;
case "IE":
shape.Background.ImagePath = "../../images/MapFiles/ie.Png";
shape.Label.Font = new Font("Verdana",12);
shape.Label.OutlineColor = Color.Gold;
break;
case "IT":
shape.Background.ImagePath = "../../images/MapFiles/it.Png";
shape.Label.Font = new Font("Verdana",12);
shape.Label.OutlineColor = Color.Gold;

break;
case "VA":
shape.Background.ImagePath = "../../images/MapFiles/va.Png";
break;
case "HR":
shape.Background.ImagePath = "../../images/MapFiles/hr.Png";
break;
case "GR":
shape.Background.ImagePath = "../../images/MapFiles/gr.Png";
break;
case "MD":
shape.Background.ImagePath = "../../images/MapFiles/md.Png";
break;
case "LU":
shape.Background.ImagePath = "../../images/MapFiles/lu.Png";
break;
case "MK":
shape.Background.ImagePath = "../../images/MapFiles/mk.Png";
break;
default:
shape.Background.Mode = BackgroundMode.Brush;
break;

}

}
}

</script>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server" >
</dotnet:Chart>
</div>
</body>
</html>

<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING.Mapping" %>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
<script runat="server">

' Demonstrates iterating through and customizing individual shapes.
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
Chart.Type = ChartType.Map
Chart.Size = "600x600"
Chart.Title = " Customize individual countries in Europe through shape iteration."
Chart.TempDirectory = "temp"
Chart.Debug=True
Chart.TitleBox.Position = TitleBoxPosition.Full

Chart.ChartArea.Background.Color = Color.LightBlue
Chart.Mapping.ZoomPercentage = 134

Chart.Mapping.ZoomCenterPoint = New PointF(52,12)
Dim layer As MapLayer = MapDataEngine.LoadLayer("../../images/MapFiles/europe.shp")

Chart.Mapping.DefaultShape.Label.Text = "%Code"
Chart.Mapping.DefaultShape.Label.OutlineColor = Color.White
Chart.Mapping.DefaultShape.Label.Hotspot.ToolTip = "%Cntry_Name"

Chart.Mapping.MapLayerCollection.Add(layer)

For Each shape As Shape In layer.Shapes
shape.Background.Mode = BackgroundMode.ImageStretch
Dim code As String = CStr(shape("code"))
If code Is Nothing Then
Exit For
End If
Select Case code.Trim()
Case "FR"
shape.Background.ImagePath = "../../images/MapFiles/fr.Png"
shape.Label.Font = New Font("Verdana",20)
shape.Label.OutlineColor = Color.Gold

Case "FI"
shape.Background.ImagePath = "../../images/MapFiles/fi.Png"
shape.Label.Font = New Font("Verdana",20)
Case "NO"
shape.Background.ImagePath = "../../images/MapFiles/no.Png"
shape.Label.Font = New Font("Verdana",20)
Case "SE"
shape.Background.ImagePath = "../../images/MapFiles/se.Png"
shape.Label.Font = New Font("Verdana",20)
Case "EE"
shape.Background.ImagePath = "../../images/MapFiles/ee.Png"
Case "LV"
shape.Background.ImagePath = "../../images/MapFiles/lv.Png"
Case "LT"
shape.Background.ImagePath = "../../images/MapFiles/lt.Png"
Case "PL"
shape.Background.ImagePath = "../../images/MapFiles/pl.Png"
shape.Label.Font = New Font("Verdana",20)
Case "SK"
shape.Background.ImagePath = "../../images/MapFiles/sk.Png"
Case "RO"
shape.Background.ImagePath = "../../images/MapFiles/ro.Png"
Case "HU"
shape.Background.ImagePath = "../../images/MapFiles/hu.Png"
shape.Label.OutlineColor = Color.Gold

Case "BG"
shape.Background.ImagePath = "../../images/MapFiles/bg.Png"
Case "YU"
shape.Background.ImagePath = "../../images/MapFiles/yu.Png"
shape.Label.OutlineColor = Color.Gold

Case "AL"
shape.Background.ImagePath = "../../images/MapFiles/al.Png"
Case "BA"
shape.Background.ImagePath = "../../images/MapFiles/ba.Png"
Case "SI"
shape.Background.ImagePath = "../../images/MapFiles/si.Png"
Case "AT"
shape.Background.ImagePath = "../../images/MapFiles/at.Png"
shape.Label.OutlineColor = Color.Gold
Case "CZ"
shape.Background.ImagePath = "../../images/MapFiles/cz.Png"
Case "DE"
shape.Background.ImagePath = "../../images/MapFiles/de.Png"
shape.Label.Font = New Font("Verdana",20)
Case "DK"
shape.Background.ImagePath = "../../images/MapFiles/dk.Png"
Case "NL"
shape.Background.ImagePath = "../../images/MapFiles/nl.Png"
Case "BE"
shape.Background.ImagePath = "../../images/MapFiles/be.Png"
Case "CH"
shape.Background.ImagePath = "../../images/MapFiles/ch.Png"
Case "ES"
shape.Background.ImagePath = "../../images/MapFiles/es.Png"
shape.Label.Font = New Font("Verdana",20)
Case "PT"
shape.Background.ImagePath = "../../images/MapFiles/pt.Png"
Case "UK"
shape.Background.ImagePath = "../../images/MapFiles/uk.Png"
shape.Label.Font = New Font("Verdana",20)
Case "IE"
shape.Background.ImagePath = "../../images/MapFiles/ie.Png"
shape.Label.Font = New Font("Verdana",12)
shape.Label.OutlineColor = Color.Gold
Case "IT"
shape.Background.ImagePath = "../../images/MapFiles/it.Png"
shape.Label.Font = New Font("Verdana",12)
shape.Label.OutlineColor = Color.Gold

Case "VA"
shape.Background.ImagePath = "../../images/MapFiles/va.Png"
Case "HR"
shape.Background.ImagePath = "../../images/MapFiles/hr.Png"
Case "GR"
shape.Background.ImagePath = "../../images/MapFiles/gr.Png"
Case "MD"
shape.Background.ImagePath = "../../images/MapFiles/md.Png"
Case "LU"
shape.Background.ImagePath = "../../images/MapFiles/lu.Png"
Case "MK"
shape.Background.ImagePath = "../../images/MapFiles/mk.Png"
Case Else
shape.Background.Mode = BackgroundMode.Brush

End Select

Next shape
End Sub

</script>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server" >
</dotnet:Chart>
</div>
</body>
</html>
