Import Shapefile Data

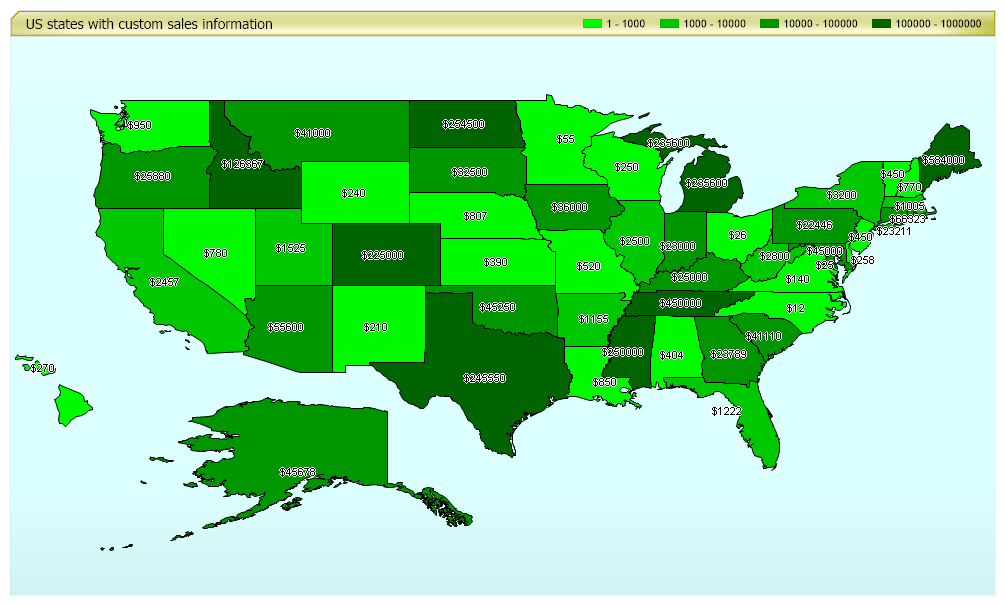

Demonstrates loading a shapefile map.
<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Data" %>
<%@ Import Namespace="System.Data.OleDb" %>
<%@ Import Namespace="dotnetCHARTING.Mapping" %>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
<script runat="server">
void Page_Load(Object sender,EventArgs e)
{
Chart.Type = ChartType.Map;
Chart.Size = "1000x600";
Chart.Title = " US states with custom sales information";
Chart.TempDirectory = "temp";
Chart.Mapping.DefaultShape.Label.OutlineColor = Color.White;
Chart.ChartArea.Background.Color = Color.FromArgb(220,255,255);
Chart.TitleBox.Label.Color = Color.Black;
Chart.TitleBox.Background.Color = Color.LightYellow;
Chart.TitleBox.Background.GlassEffect = true;
// Demonstrates how to integrate custom data from a database with a map layer.
MapLayer layer = MapDataEngine.LoadLayer("../../images/MapFiles/primusa.shp");
layer.ImportData(CreateDataTable(),"STATE_ABBR","Code");
SmartPalette sp = Chart.SmartPalette = new SmartPalette();
sp.Add("SALES",new SmartColor(Color.FromArgb(0,250,0), new ScaleRange(1,1000)));
sp.Add("SALES",new SmartColor(Color.FromArgb(0,200,0), new ScaleRange(1000,10000)));
sp.Add("SALES",new SmartColor(Color.FromArgb(0,150,0), new ScaleRange(10000,100000)));
sp.Add("SALES",new SmartColor(Color.FromArgb(0,100,0), new ScaleRange(100000,1000000)));
Chart.Mapping.ZoomPercentage = 120;
Chart.Mapping.ZoomCenterPoint = new PointF(35,-98);
Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend;
Chart.Mapping.MapLayerCollection.Add(layer);
Chart.Mapping.DefaultShape.Label.Text = "$%Sales";
Chart.Mapping.DefaultShape.Label.Hotspot.ToolTip = "%State_Name";
}
private DataTable CreateDataTable()
{
DataTable dt = new DataTable();
string connString = "Provider=Microsoft.Jet.OLEDB.4.0;user id=admin;password=;data source=" + Server.MapPath("../../data/chartsample.mdb");
OleDbConnection conn = new OleDbConnection(connString);
OleDbDataAdapter adapter = new OleDbDataAdapter();
string selectQuery = @"SELECT [Code],[Sales] FROM Locations";
adapter.SelectCommand = new OleDbCommand(selectQuery, conn);
adapter.Fill(dt);
return dt;
}
</script>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server" >
</dotnet:Chart>
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Data" %>
<%@ Import Namespace="System.Data.OleDb" %>
<%@ Import Namespace="dotnetCHARTING.Mapping" %>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
Chart.Type = ChartType.Map
Chart.Size = "1000x600"
Chart.Title = " US states with custom sales information"
Chart.TempDirectory = "temp"
Chart.Mapping.DefaultShape.Label.OutlineColor = Color.White
Chart.ChartArea.Background.Color = Color.FromArgb(220,255,255)
Chart.TitleBox.Label.Color = Color.Black
Chart.TitleBox.Background.Color = Color.LightYellow
Chart.TitleBox.Background.GlassEffect = True
' Demonstrates how to integrate custom data from a database with a map layer.
Dim layer As MapLayer = MapDataEngine.LoadLayer("../../images/MapFiles/primusa.shp")
layer.ImportData(CreateDataTable(),"STATE_ABBR","Code")
Dim sp As SmartPalette = New SmartPalette()
sp = Chart.SmartPalette
sp.Add("SALES",New SmartColor(Color.FromArgb(0,250,0), New ScaleRange(1,1000)))
sp.Add("SALES",New SmartColor(Color.FromArgb(0,200,0), New ScaleRange(1000,10000)))
sp.Add("SALES",New SmartColor(Color.FromArgb(0,150,0), New ScaleRange(10000,100000)))
sp.Add("SALES",New SmartColor(Color.FromArgb(0,100,0), New ScaleRange(100000,1000000)))
Chart.Mapping.ZoomPercentage = 120
Chart.Mapping.ZoomCenterPoint = New PointF(35,-98)
Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend
Chart.Mapping.MapLayerCollection.Add(layer)
Chart.Mapping.DefaultShape.Label.Text = "$%Sales"
Chart.Mapping.DefaultShape.Label.Hotspot.ToolTip = "%State_Name"
End Sub
Private Function CreateDataTable() As DataTable
Dim dt As DataTable = New DataTable()
Dim connString As String = "Provider=Microsoft.Jet.OLEDB.4.0;user id=admin;password=;data source=" & Server.MapPath("../../data/chartsample.mdb")
Dim conn As OleDbConnection = New OleDbConnection(connString)
Dim adapter As OleDbDataAdapter = New OleDbDataAdapter()
Dim selectQuery As String = "SELECT [Code],[Sales] FROM Locations"
adapter.SelectCommand = New OleDbCommand(selectQuery, conn)
adapter.Fill(dt)
Return dt
End Function
</script>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server" >
</dotnet:Chart>
</div>
</body>
</html>
