Mapping

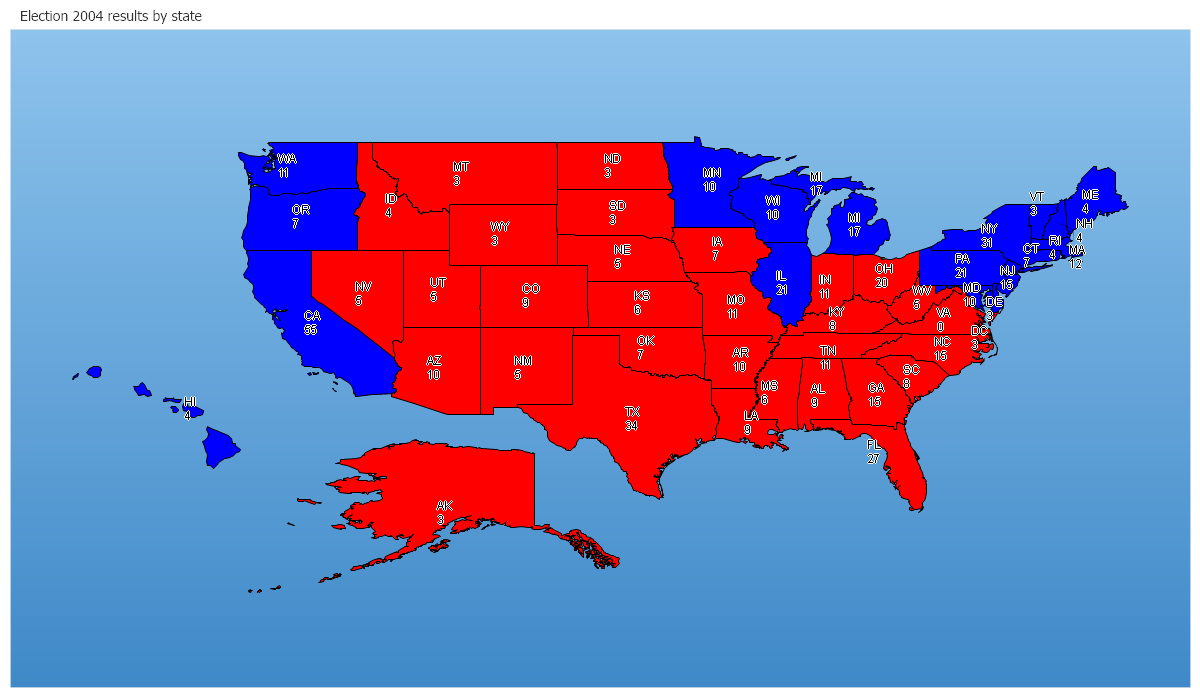

Election 2004 results by states.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING.Mapping" %>
<%@ Import Namespace="System.Data" %>
<%@ Import Namespace="System.Data.OleDb" %>

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
<script runat="server">
// Demonstrates how to iterate a layer of shape files.
void Page_Load(Object sender,EventArgs e)
{
Chart.Type = ChartType.Map;
Chart.Size = "1200x700";
Chart.Title = "Election 2004 results by state";
Chart.TempDirectory = "temp";
Chart.Debug=true;
Chart.TitleBox.Position = TitleBoxPosition.Full;
Chart.ChartArea.Background =new Background(Color.FromArgb(142,195,236),Color.FromArgb(63,137,200),90);
MapLayer layer = MapDataEngine.LoadLayer("../../../Images/MapFiles/primusa.shp");
layer.ImportData(CreateDataTable(),"STATE_ABBR", "Code");
Chart.Mapping.DefaultShape.Background.Color = Color.Red;
Chart.Mapping.DefaultShape.Label.Text = "%STATE_ABBR\n%Seats2004";
Chart.Mapping.DefaultShape.Label.OutlineColor = Color.White;
Chart.Mapping.DefaultShape.Label.Font = new Font("Arial", 9);
Chart.Mapping.DefaultShape.Label.Hotspot.ToolTip = "%STATE_NAME";

Chart.Mapping.MapLayerCollection.Add(layer);

//Set different colors to each state
foreach(Shape shape in layer.Shapes)
{
string code =(string) shape["STATE_ABBR"];
if(code=="WA"||code=="OR"||code=="CA"||code=="MN"||code=="WI"||code=="MI"||code=="PA"||
code=="IL"||code=="NY"||code=="MA"||code=="NH"||code=="MA"||code=="RI"||code=="NJ"||
code=="ME"||code=="DL"||code=="MD"||code=="DE"||code=="HI"||code=="VT"||code=="ME"||code=="CT")

shape.Background.Color = Color.Blue;

}
}
private DataTable CreateDataTable()
{
DataTable dt = new DataTable();
string connString = "Provider=Microsoft.Jet.OLEDB.4.0;user id=admin;password=;data source=" + Server.MapPath("../../../data/chartsample.mdb");
OleDbConnection conn = new OleDbConnection(connString);
OleDbDataAdapter adapter = new OleDbDataAdapter();
string selectQuery = @"SELECT [Code],[Seats2004] FROM Locations";
adapter.SelectCommand = new OleDbCommand(selectQuery, conn);
adapter.Fill(dt);
return dt;
}

</script>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server" >
</dotnet:Chart>
</div>
</body>
</html>

<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING.Mapping" %>
<%@ Import Namespace="System.Data" %>
<%@ Import Namespace="System.Data.OleDb" %>

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
<script runat="server">
' Demonstrates how to iterate a layer of shape files.
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
Chart.Type = ChartType.Map
Chart.Size = "1200x700"
Chart.Title = "Election 2004 results by state"
Chart.TempDirectory = "temp"
Chart.Debug=True
Chart.TitleBox.Position = TitleBoxPosition.Full
Chart.ChartArea.Background = New Background(Color.FromArgb(142,195,236),Color.FromArgb(63,137,200),90)
Dim layer As MapLayer = MapDataEngine.LoadLayer("../../../Images/MapFiles/primusa.shp")
layer.ImportData(CreateDataTable(),"STATE_ABBR", "Code")
Chart.Mapping.DefaultShape.Background.Color = Color.Red
Chart.Mapping.DefaultShape.Label.Text = "%STATE_ABBR" & Constants.vbLf & "%Seats2004"
Chart.Mapping.DefaultShape.Label.OutlineColor = Color.White
Chart.Mapping.DefaultShape.Label.Font = New Font("Arial", 9)
Chart.Mapping.DefaultShape.Label.Hotspot.ToolTip = "%STATE_NAME"

Chart.Mapping.MapLayerCollection.Add(layer)

'Set different colors to each state
For Each shape As Shape In layer.Shapes
Dim code As String =CStr(shape("STATE_ABBR"))
If code="WA" OrElse code="OR" OrElse code="CA" OrElse code="MN" OrElse code="WI" OrElse code="MI" OrElse code="PA" OrElse code="IL" OrElse code="NY" OrElse code="MA" OrElse code="NH" OrElse code="MA" OrElse code="RI" OrElse code="NJ" OrElse code="ME" OrElse code="DL" OrElse code="MD" OrElse code="DE" OrElse code="HI" OrElse code="VT" OrElse code="ME" OrElse code="CT" Then

shape.Background.Color = Color.Blue
End If

Next shape
End Sub
Private Function CreateDataTable() As DataTable
Dim dt As DataTable = New DataTable()
Dim connString As String = "Provider=Microsoft.Jet.OLEDB.4.0;user id=admin;password=;data source=" & Server.MapPath("../../../data/chartsample.mdb")
Dim conn As OleDbConnection = New OleDbConnection(connString)
Dim adapter As OleDbDataAdapter = New OleDbDataAdapter()
Dim selectQuery As String = "SELECT [Code],[Seats2004] FROM Locations"
adapter.SelectCommand = New OleDbCommand(selectQuery, conn)
adapter.Fill(dt)
Return dt
End Function

</script>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server" >
</dotnet:Chart>
</div>
</body>
</html>

Sample FilenameGallery/j07.aspx
