Xml XPath
<%@ Page Language="C#" trace="false" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Data" %>
<%@ Import Namespace="System.Data.OleDb" %>
<script runat="server">
void Page_Load(Object sender,EventArgs e)
{

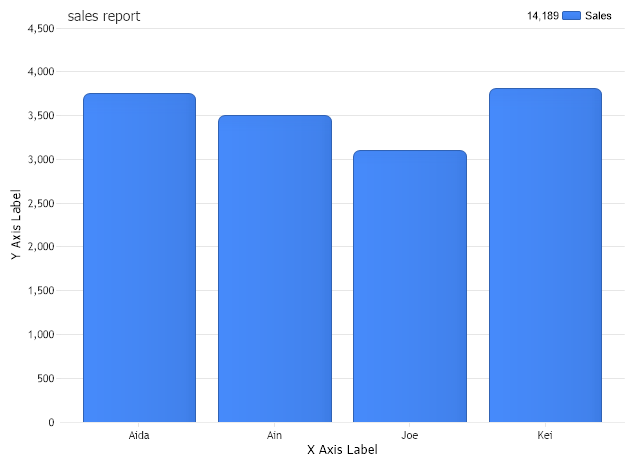

// Demonstrates how to use XPath to get data fields from an xml file for generating a chart.
//set Title
Chart.Title="sales report";
// Set the x axis label
Chart.ChartArea.XAxis.Label.Text="X Axis Label";
Chart.XAxis.FormatString = "MMM d";
// Set the y axis label
Chart.ChartArea.YAxis.Label.Text="Y Axis Label";
Chart.TempDirectory="temp";
Chart.Debug=true;
Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend;
//Adding series programatically
Chart.Series.Name = "Sales";
Chart.Series.DataFields="xaxis=//Customers/Customer/Name,yaxis=//Customers/Customer/Total";
Chart.Series.Data = "../../data/Orders.xml";
Chart.SeriesCollection.Add();
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>XML XPath Sample</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
<%@ Page Language="vb" trace="false" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Data" %>
<%@ Import Namespace="System.Data.OleDb" %>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates how to use XPath to get data fields from an xml file for generating a chart.
'set Title
Chart.Title="sales report"
' Set the x axis label
Chart.ChartArea.XAxis.Label.Text="X Axis Label"
Chart.XAxis.FormatString = "MMM d"
' Set the y axis label
Chart.ChartArea.YAxis.Label.Text="Y Axis Label"
Chart.TempDirectory="temp"
Chart.Debug=True
Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend
'Adding series programatically
Chart.Series.Name = "Sales"
Chart.Series.DataFields="xaxis=//Customers/Customer/Name,yaxis=//Customers/Customer/Total"
Chart.Series.Data = "../../data/Orders.xml"
Chart.SeriesCollection.Add()
End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>XML XPath Sample</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
- Sample FilenamexmlXPath.aspx
- Version4.1
- Uses DatabaseNo
