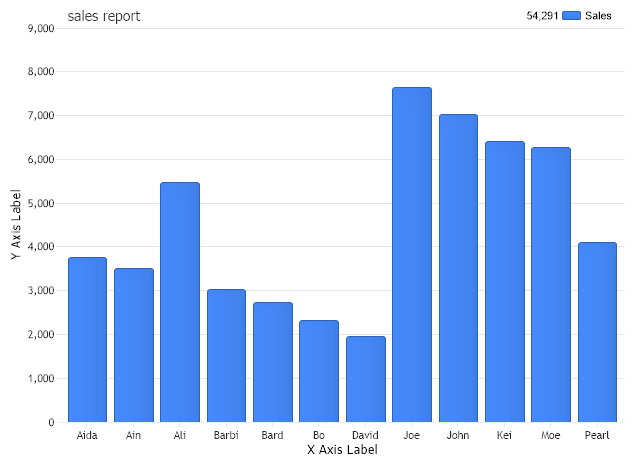

<%@ Page Language="C#" trace="false" Description="dotnetCHARTING Component" %><%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%><%@ Import Namespace="System.Drawing" %><%@ Import Namespace="System.Data" %><%@ Import Namespace="System.Xml" %><script runat="server">void Page_Load(Object sender,EventArgs e){ // Demonstrates how to use an xml string to generate a chart. //set Title Chart.Title="sales report"; // Set the x axis label Chart.ChartArea.XAxis.Label.Text="X Axis Label"; Chart.XAxis.FormatString = "MMM d"; // Set the y axis label Chart.ChartArea.YAxis.Label.Text="Y Axis Label"; Chart.TempDirectory="temp"; Chart.Debug=true; Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend; //Adding series programatically Chart.Series.Name = "Sales"; Chart.Series.Data = GetXmlString(); Chart.Series.DataFields="xaxis=Name,yaxis=Total"; Chart.SeriesCollection.Add(); }string GetXmlString(){ StringBuilder xmlString = new StringBuilder("<?xml version=\"1.0\" standalone=\"yes\"?>"); xmlString.Append(@"<NewDataSet> <OrderTable> <Name>Aida</Name> <Total>3759</Total></OrderTable><OrderTable> <Name>Ain</Name> <Total>3510</Total></OrderTable><OrderTable><Name>Ali</Name> <Total>5478</Total></OrderTable><OrderTable> <Name>Barbi</Name> <Total>3029</Total></OrderTable><OrderTable><Name>Bard</Name> <Total>2743</Total></OrderTable><OrderTable> <Name>Bo</Name> <Total>2331</Total></OrderTable><OrderTable><Name>David</Name> <Total>1954</Total></OrderTable><OrderTable> <Name>Joe</Name> <Total>7661</Total></OrderTable><OrderTable><Name>John</Name> <Total>7026</Total></OrderTable><OrderTable> <Name>Kei</Name> <Total>6408</Total> </OrderTable> <OrderTable> <Name>Moe</Name> <Total>6287</Total> </OrderTable><OrderTable> <Name>Pearl</Name> <Total>4105</Total> </OrderTable></NewDataSet>");return xmlString.ToString();}</script><html xmlns="http://www.w3.org/1999/xhtml"><head><title>XmlString Sample</title></head><body><div style="text-align:center"> <dotnet:Chart id="Chart" runat="server"/></div></body></html>
<%@ Page Language="vb" trace="false" Description="dotnetCHARTING Component" %><%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%><%@ Import Namespace="System.Drawing" %><%@ Import Namespace="System.Data" %><%@ Import Namespace="System.Xml" %><script runat="server">Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs) ' Demonstrates how to use an xml string to generate a chart. 'set Title Chart.Title="sales report" ' Set the x axis label Chart.ChartArea.XAxis.Label.Text="X Axis Label" Chart.XAxis.FormatString = "MMM d" ' Set the y axis label Chart.ChartArea.YAxis.Label.Text="Y Axis Label" Chart.TempDirectory="temp" Chart.Debug=True Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend 'Adding series programatically Chart.Series.Name = "Sales" Chart.Series.Data = GetXmlString() Chart.Series.DataFields="xaxis=Name,yaxis=Total" Chart.SeriesCollection.Add()End SubFunction GetXmlString() As String Dim xmlString As StringBuilder = New StringBuilder("<?xml version=""1.0"" standalone=""yes""?>") xmlString.Append("<NewDataSet>" & ControlChars.CrLf & " <OrderTable>" & ControlChars.CrLf & " <Name>Aida</Name>" & ControlChars.CrLf & " <Total>3759</Total>" & ControlChars.CrLf & "</OrderTable>" & ControlChars.CrLf & "<OrderTable>" & ControlChars.CrLf & " <Name>Ain</Name>" & ControlChars.CrLf & " <Total>3510</Total>" & ControlChars.CrLf & "</OrderTable>" & ControlChars.CrLf & "<OrderTable>" & ControlChars.CrLf & "<Name>Ali</Name>" & ControlChars.CrLf & " <Total>5478</Total>" & ControlChars.CrLf & "</OrderTable>" & ControlChars.CrLf & "<OrderTable>" & ControlChars.CrLf & " <Name>Barbi</Name>" & ControlChars.CrLf & " <Total>3029</Total>" & ControlChars.CrLf & "</OrderTable>" & ControlChars.CrLf & "<OrderTable>" & ControlChars.CrLf & "<Name>Bard</Name>" & ControlChars.CrLf & " <Total>2743</Total>" & ControlChars.CrLf & "</OrderTable>" & ControlChars.CrLf & "<OrderTable>" & ControlChars.CrLf & " <Name>Bo</Name>" & ControlChars.CrLf & " <Total>2331</Total>" & ControlChars.CrLf & "</OrderTable>" & ControlChars.CrLf & "<OrderTable>" & ControlChars.CrLf & "<Name>David</Name>" & ControlChars.CrLf & " <Total>1954</Total>" & ControlChars.CrLf & "</OrderTable>" & ControlChars.CrLf & "<OrderTable>" & ControlChars.CrLf & " <Name>Joe</Name>" & ControlChars.CrLf & " <Total>7661</Total>" & ControlChars.CrLf & "</OrderTable>" & ControlChars.CrLf & "<OrderTable>" & ControlChars.CrLf & "<Name>John</Name>" & ControlChars.CrLf & " <Total>7026</Total>" & ControlChars.CrLf & "</OrderTable>" & ControlChars.CrLf & "<OrderTable>" & ControlChars.CrLf & " <Name>Kei</Name>" & ControlChars.CrLf & " <Total>6408</Total>" & ControlChars.CrLf & " </OrderTable>" & ControlChars.CrLf & " <OrderTable>" & ControlChars.CrLf & " <Name>Moe</Name>" & ControlChars.CrLf & " <Total>6287</Total>" & ControlChars.CrLf & " </OrderTable>" & ControlChars.CrLf & "<OrderTable>" & ControlChars.CrLf & " <Name>Pearl</Name>" & ControlChars.CrLf & " <Total>4105</Total>" & ControlChars.CrLf & " </OrderTable>" & ControlChars.CrLf & "</NewDataSet>")Return xmlString.ToString()End Function</script><html xmlns="http://www.w3.org/1999/xhtml"><head><title>XmlString Sample</title></head><body><div style="text-align:center"> <dotnet:Chart id="Chart" runat="server"/></div></body></html>
