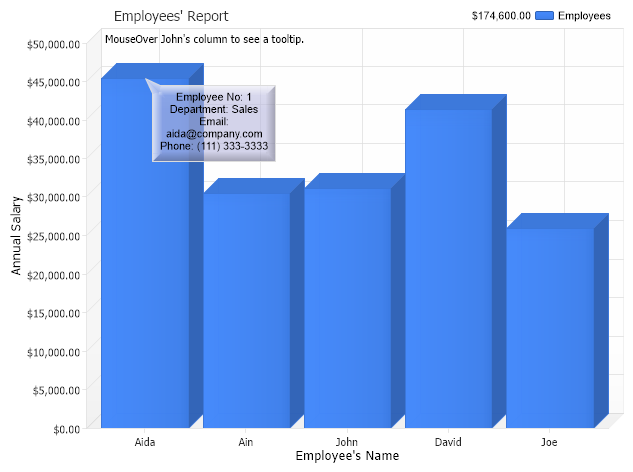

Demonstrates how to use an xml file for adding custom attributes for generating a chart.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Trace="false" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Data" %>
<%@ Import Namespace="System.Data.OleDb" %>
<%@ Import Namespace="System.IO" %>

<script runat="server">
void Page_Load(Object sender,EventArgs e)
{
// Demonstrates how to use an xml file for adding custom attributes for generating a chart.

Chart.Title=" Employees' Report";
Chart.ChartArea.Label.Text = "MouseOver John's column to see a tooltip.";
Chart.XAxis.Label.Text="Employee's Name";
Chart.YAxis.Label.Text="Annual Salary";
Chart.YAxis.FormatString="currency";
Chart.TempDirectory="temp";
Chart.Debug=true;
Chart.Use3D=true;
Chart.DefaultSeries.DefaultElement.URL = "customAttributeTarget.aspx?name=%name&salary=%yvalue&id=%EmployeeID&department=%Department&email=%email&phone=%PhoneNumber";

//Create a series
DataEngine de = new DataEngine();
de.Data= "../../data/Orders.xml";
//Set predefined data fields and some custom fields as attributes for x-Axis. (Employee�s name)
de.DataFields="table=Employees,xAxis=name,yAxis=salary,id=EmployeeID,department=Department,email,phone=PhoneNumber";
SeriesCollection sc = de.GetSeries();

if(sc.Count>0)
{
Series ser1 = sc[0];
ser1.Name = "Employees";
for(int i=0;i<3;i++)
{
switch(i)
{
case 0:
//set employees' information to annotation
// we can use all the element tokens in the text, toolTip and even url of this annotation.
Annotation a = new Annotation("Employee No: %EmployeeID\nDepartment: %Department\nEmail: %email\nPhone: %PhoneNumber");
a.Background.Bevel = true;
a.Background.Color = Color.FromArgb(150,180,180,220);
// Assign the annotation to an element in the sc collection.
ser1.Elements[0].Annotation = a;
break;
case 2:
//set employees' information to Tooltip
ser1.Elements[2].ToolTip = "Employee No: %EmployeeID\nDepartment: %Department\nEmail: %email\nPhone: %PhoneNumber";
break;
default:
break;
}
}
}
Chart.SeriesCollection.Add(sc);

}
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>XML Custom Attributes</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" TitleBox-Position = "FullWithLegend" runat="server"/>
</div>
</body>

</html>

<%@ Page Language="vb" Trace="false" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Data" %>
<%@ Import Namespace="System.Data.OleDb" %>
<%@ Import Namespace="System.IO" %>

<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates how to use an xml file for adding custom attributes for generating a chart.

Chart.Title=" Employees' Report"
Chart.ChartArea.Label.Text = "MouseOver John's column to see a tooltip."
Chart.XAxis.Label.Text="Employee's Name"
Chart.YAxis.Label.Text="Annual Salary"
Chart.YAxis.FormatString="currency"
Chart.TempDirectory="temp"
Chart.Debug=True
Chart.Use3D=True
Chart.DefaultSeries.DefaultElement.URL = "customAttributeTarget.aspx?name=%name&salary=%yvalue&id=%EmployeeID&department=%Department&email=%email&phone=%PhoneNumber"

'Create a series
Dim de As DataEngine = New DataEngine()
de.Data= "../../data/Orders.xml"
'Set predefined data fields and some custom fields as attributes for x-Axis. (Employee�s name)
de.DataFields="table=Employees,xAxis=name,yAxis=salary,id=EmployeeID,department=Department,email,phone=PhoneNumber"
Dim sc As SeriesCollection = de.GetSeries()

If sc.Count>0 Then
Dim ser1 As Series = sc(0)
ser1.Name = "Employees"
For i As Integer = 0 To 2
Select Case i
Case 0
'set employees' information to annotation
' we can use all the element tokens in the text, toolTip and even url of this annotation.
Dim a As Annotation = New Annotation("Employee No: %EmployeeID" & Constants.vbLf & "Department: %Department" & Constants.vbLf & "Email: %email" & Constants.vbLf & "Phone: %PhoneNumber")
a.Background.Bevel = True
a.Background.Color = Color.FromArgb(150,180,180,220)
' Assign the annotation to an element in the sc collection.
ser1.Elements(0).Annotation = a
Case 2
'set employees' information to Tooltip
ser1.Elements(2).ToolTip = "Employee No: %EmployeeID" & Constants.vbLf & "Department: %Department" & Constants.vbLf & "Email: %email" & Constants.vbLf & "Phone: %PhoneNumber"
Case Else
End Select
Next i
End If
Chart.SeriesCollection.Add(sc)

End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>XML Custom Attributes</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" TitleBox-Position = "FullWithLegend" runat="server"/>
</div>
</body>

</html>
