<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING"%>
<script runat="server">
void Page_Load(Object sender,EventArgs e)
{

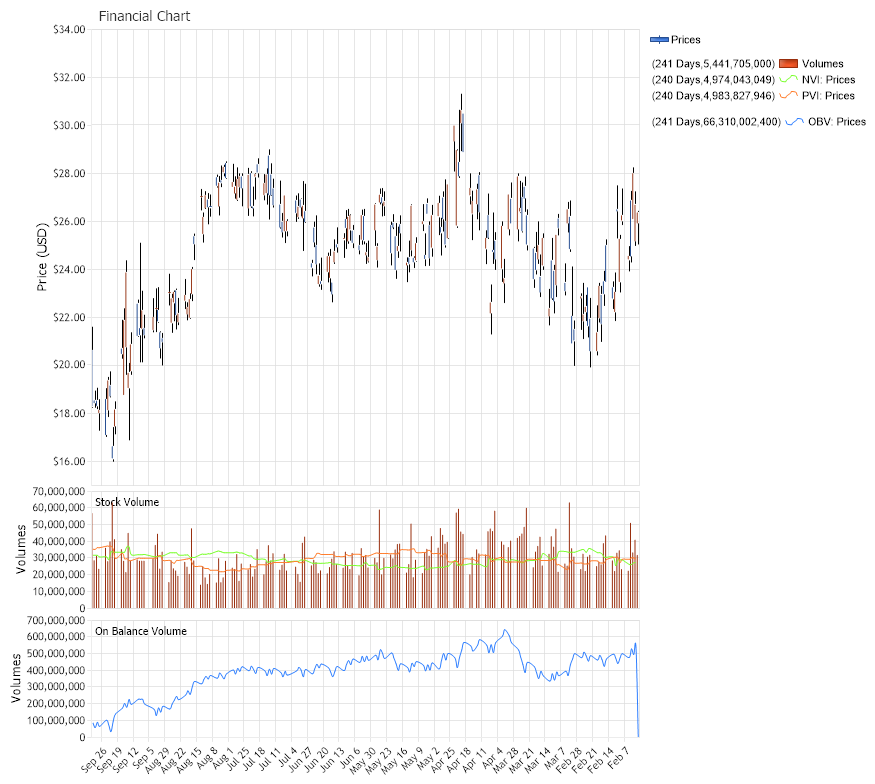

// Demonstrates the use of the Volume indicators
// First we declare a chart of type FinancialChart
// The Financial Chart
FinancialChart.Title="Financial Chart";
FinancialChart.TempDirectory="temp";
FinancialChart.Debug=true;
FinancialChart.ShadingEffect = true;
FinancialChart.LegendBox.Template ="%icon %name";
FinancialChart.Size="900X800";
FinancialChart.XAxis.Scale = Scale.Time;
FinancialChart.XAxis.FormatString = "MMM d";
FinancialChart.XAxis.TimeInterval = TimeInterval.Week;
// For financial indicators the time scale is inverted (i.e. the first element of the series is the newest)
FinancialChart.XAxis.InvertScale = true;
FinancialChart.YAxis.Label.Text = "Price (USD)";
FinancialChart.YAxis.FormatString = "currency";
FinancialChart.YAxis.ScaleRange.ValueLow = 15;
// Here we load data samples from the FinancialCompany table from within chartsample.mdb
DataEngine priceDataEngine = new DataEngine ();
priceDataEngine.ChartType = ChartType.Financial;
priceDataEngine.ConnectionString = ConfigurationManager.AppSettings["DNCConnectionString"];
priceDataEngine.DateGrouping = TimeInterval.Day;
priceDataEngine.StartDate = new DateTime (2021,2,1);
priceDataEngine.EndDate = new DateTime (2021,9,30);
priceDataEngine.SqlStatement = @"SELECT TransDate, HighPrice, LowPrice, OpenPrice, ClosePrice,Volume FROM FinancialCompany WHERE TransDate >= #STARTDATE# AND TransDate <= #ENDDATE# ORDER BY TransDate DESC ";
priceDataEngine.DataFields = "xAxis=TransDate,High=HighPrice,Low=LowPrice,Open=OpenPrice,Close=ClosePrice,Volume=Volume";
SeriesCollection sc = priceDataEngine.GetSeries ();
Series prices = null;
if(sc.Count>0)
prices = sc[0];
else
return;
prices.DefaultElement.ToolTip="L:%Low-H:%High";
prices.DefaultElement.SmartLabel.Font = new Font("Arial", 6);
prices.DefaultElement.SmartLabel.Text="O:%Open-C:%Close";
prices.Type = SeriesTypeFinancial.CandleStick;
CalendarPattern cp = new CalendarPattern (TimeInterval.Day, TimeInterval.Week, "0000001");
cp.AdjustmentUnit = TimeInterval.Day;
prices.Trim (cp, ElementValue.XDateTime);
prices.Name = "Prices";
FinancialChart.SeriesCollection.Add (prices);
// Create the second chart area
ChartArea volumeChartArea = new ChartArea();
volumeChartArea.Label.Text = "Stock Volume";
volumeChartArea.YAxis.Label.Text = "Volumes";
volumeChartArea.Series.Name="Stock Volume";
volumeChartArea.HeightPercentage = 17;
volumeChartArea.Series.DefaultElement.ToolTip="%YValue";
FinancialChart.ExtraChartAreas.Add(volumeChartArea);
// Add a volume series to the chart area
DataEngine volumeDataEngine = new DataEngine ();
volumeDataEngine.ConnectionString = ConfigurationManager.AppSettings["DNCConnectionString"];
volumeDataEngine.DateGrouping = TimeInterval.Days;
volumeDataEngine.StartDate=new DateTime (2021,2,1);
volumeDataEngine.EndDate = new DateTime (2021,9,30);
volumeDataEngine.SqlStatement= @"SELECT TransDate,volume FROM FinancialCompany WHERE TransDate >= #STARTDATE# AND TransDate <= #ENDDATE# ORDER BY TransDate DESC";
volumeDataEngine.DataFields="xAxis=TransDate,yAxis=Volume";
Series volumes = volumeDataEngine.GetSeries () [0];
volumes.Trim (cp, ElementValue.XDateTime);
volumes.Name = "Volumes";
volumes.Type = SeriesType.Bar;
volumeChartArea.SeriesCollection.Add (volumes);
// Financial Volume Indicators
FinancialChart.DefaultSeries.DefaultElement.Marker = new ElementMarker (ElementMarkerType.None);
FinancialChart.ChartAreaLayout.Mode = ChartAreaLayoutMode.Vertical;
FinancialChart.DefaultSeries.Type = SeriesType.Spline;
// Negative Volume Index
Series negativeVolume = FinancialEngine.NegativeVolumeIndex(prices);
negativeVolume.Type = SeriesType.Spline;
negativeVolume.DefaultElement.Color = Color.FromArgb(122,255,45);
volumeChartArea.SeriesCollection.Add(negativeVolume);
// Positive Volume Index
Series positiveVolume = FinancialEngine.PositiveVolumeIndex(prices);
positiveVolume.Type = SeriesType.Spline;
positiveVolume.DefaultElement.Color = Color.FromArgb(255,125,45);
volumeChartArea.SeriesCollection.Add(positiveVolume);
// Create a new char area for the indicator OnBalanceVolume
ChartArea balanceChartArea = new ChartArea();
balanceChartArea.Label.Text = "On Balance Volume";
balanceChartArea.YAxis.Label.Text = "Volumes";
balanceChartArea.HeightPercentage = 17;
FinancialChart.ExtraChartAreas.Add(balanceChartArea);
// On Balance Volume indicator
Series onBalanceVolume = FinancialEngine.OnBalanceVolume(prices);
onBalanceVolume.Type = SeriesType.Spline;
onBalanceVolume.DefaultElement.Color = Color.FromArgb(45,125,255);
balanceChartArea.SeriesCollection.Add(onBalanceVolume);
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Financial Volume Indicators Sample</title>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="FinancialChart" runat="server"/>
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING"%>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates the use of the Volume indicators
' First we declare a chart of type FinancialChart
' The Financial Chart
FinancialChart.Title="Financial Chart"
FinancialChart.TempDirectory="temp"
FinancialChart.Debug=True
FinancialChart.ShadingEffect = True
FinancialChart.LegendBox.Template ="%icon %name"
FinancialChart.Size="900X800"
FinancialChart.XAxis.Scale = Scale.Time
FinancialChart.XAxis.FormatString = "MMM d"
FinancialChart.XAxis.TimeInterval = TimeInterval.Week
' For financial indicators the time scale is inverted (i.e. the first element of the series is the newest)
FinancialChart.XAxis.InvertScale = True
FinancialChart.YAxis.Label.Text = "Price (USD)"
FinancialChart.YAxis.FormatString = "currency"
FinancialChart.YAxis.ScaleRange.ValueLow = 15
' Here we load data samples from the FinancialCompany table from within chartsample.mdb
Dim priceDataEngine As DataEngine = New DataEngine ()
priceDataEngine.ChartType = ChartType.Financial
priceDataEngine.ConnectionString = ConfigurationManager.AppSettings("DNCConnectionString")
priceDataEngine.DateGrouping = TimeInterval.Day
priceDataEngine.StartDate = New DateTime (2021,2,1)
priceDataEngine.EndDate = New DateTime (2021,9,30)
priceDataEngine.SqlStatement = "SELECT TransDate, HighPrice, LowPrice, OpenPrice, ClosePrice,Volume FROM FinancialCompany WHERE TransDate >= #STARTDATE# AND TransDate <= #ENDDATE# ORDER BY TransDate DESC "
priceDataEngine.DataFields = "xAxis=TransDate,High=HighPrice,Low=LowPrice,Open=OpenPrice,Close=ClosePrice,Volume=Volume"
Dim sc As SeriesCollection = priceDataEngine.GetSeries ()
Dim prices As Series = Nothing
If sc.Count>0 Then
prices = sc(0)
Else
Return
End If
prices.DefaultElement.ToolTip="L:%Low-H:%High"
prices.DefaultElement.SmartLabel.Font = New Font("Arial", 6)
prices.DefaultElement.SmartLabel.Text="O:%Open-C:%Close"
prices.Type = SeriesTypeFinancial.CandleStick
Dim cp As CalendarPattern = New CalendarPattern (TimeInterval.Day, TimeInterval.Week, "0000001")
cp.AdjustmentUnit = TimeInterval.Day
prices.Trim (cp, ElementValue.XDateTime)
prices.Name = "Prices"
FinancialChart.SeriesCollection.Add (prices)
' Create the second chart area
Dim volumeChartArea As ChartArea = New ChartArea()
volumeChartArea.Label.Text = "Stock Volume"
volumeChartArea.YAxis.Label.Text = "Volumes"
volumeChartArea.Series.Name="Stock Volume"
volumeChartArea.HeightPercentage = 17
volumeChartArea.Series.DefaultElement.ToolTip="%YValue"
FinancialChart.ExtraChartAreas.Add(volumeChartArea)
' Add a volume series to the chart area
Dim volumeDataEngine As DataEngine = New DataEngine ()
volumeDataEngine.ConnectionString = ConfigurationManager.AppSettings("DNCConnectionString")
volumeDataEngine.DateGrouping = TimeInterval.Days
volumeDataEngine.StartDate = New DateTime (2021,2,1)
volumeDataEngine.EndDate = New DateTime (2021,9,30)
volumeDataEngine.SqlStatement= "SELECT TransDate,volume FROM FinancialCompany WHERE TransDate >= #STARTDATE# AND TransDate <= #ENDDATE# ORDER BY TransDate DESC"
volumeDataEngine.DataFields="xAxis=TransDate,yAxis=Volume"
Dim volumes As Series = volumeDataEngine.GetSeries ()(0)
volumes.Trim (cp, ElementValue.XDateTime)
volumes.Name = "Volumes"
volumes.Type = SeriesType.Bar
volumeChartArea.SeriesCollection.Add (volumes)
' Financial Volume Indicators
FinancialChart.DefaultSeries.DefaultElement.Marker = New ElementMarker (ElementMarkerType.None)
FinancialChart.ChartAreaLayout.Mode = ChartAreaLayoutMode.Vertical
FinancialChart.DefaultSeries.Type = SeriesType.Spline
' Negative Volume Index
Dim negativeVolume As Series = FinancialEngine.NegativeVolumeIndex(prices)
negativeVolume.Type = SeriesType.Spline
negativeVolume.DefaultElement.Color = Color.FromArgb(122,255,45)
volumeChartArea.SeriesCollection.Add(negativeVolume)
' Positive Volume Index
Dim positiveVolume As Series = FinancialEngine.PositiveVolumeIndex(prices)
positiveVolume.Type = SeriesType.Spline
positiveVolume.DefaultElement.Color = Color.FromArgb(255,125,45)
volumeChartArea.SeriesCollection.Add(positiveVolume)
' Create a new char area for the indicator OnBalanceVolume
Dim balanceChartArea As ChartArea = New ChartArea()
balanceChartArea.Label.Text = "On Balance Volume"
balanceChartArea.YAxis.Label.Text = "Volumes"
balanceChartArea.HeightPercentage = 17
FinancialChart.ExtraChartAreas.Add(balanceChartArea)
' On Balance Volume indicator
Dim onBalanceVolume As Series = FinancialEngine.OnBalanceVolume(prices)
onBalanceVolume.Type = SeriesType.Spline
onBalanceVolume.DefaultElement.Color = Color.FromArgb(45,125,255)
balanceChartArea.SeriesCollection.Add(onBalanceVolume)
End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Financial Volume Indicators Sample</title>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="FinancialChart" runat="server"/>
</div>
</body>
</html>
- Sample FilenameVolumeIndicators.aspx
- VersionLegacy (Pre 3.0)
- Uses DatabaseYes
