SMAUsage

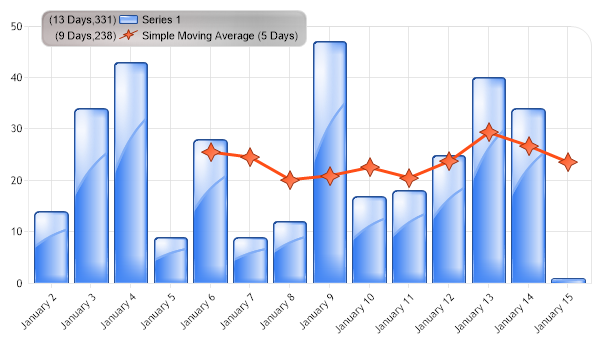

Demonstrates using a simple moving average over an n number of days.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Description="dotnetCHARTING Component" %>

<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>

<script runat="server">

void Page_Load(Object sender, EventArgs e)
{
// Demonstrates using a simple moving average over an n number of days.

Chart.Type = ChartType.Combo;
Chart.Width = 600;
Chart.Height = 350;
Chart.TempDirectory = "temp";
Chart.Debug = true;

// Set some styling properties.
Chart.ShadingEffectMode = ShadingEffectMode.Four;
Chart.LegendBox.Position = new Point(40, 15);
Chart.LegendBox.Background.ShadingEffectMode = ShadingEffectMode.Background2;
Chart.LegendBox.DefaultCorner = BoxCorner.Round;
Chart.ChartArea.DefaultCorner = BoxCorner.Round;
Chart.ChartArea.CornerSize = 20;
Chart.MarginTop = 25;
Chart.DefaultElement.Marker.Size = 15;
Chart.DefaultSeries.Line.Width = 3;

Chart.XAxis.TimeInterval = TimeInterval.Day;

// *DYNAMIC DATA NOTE*
// This sample uses random data to populate the chart. To populate
// a chart with database data see the following resources:
// - Use the getLiveData() method using the dataEngine to query a database.
// - Help File > Getting Started > Data Tutorials
// - DataEngine Class in the help file
// - Sample: features/DataEngine.aspx
SeriesCollection sc = getRandomData(3);

// Because the simple moving average calculation takes elements starting with the latest, the series is reversed using the sort method.
sc.Sort(ElementValue.XDateTime, "Desc");

// Get the moving average
SeriesCollection ma = FinancialEngine.SimpleMovingAverage(sc, ElementValue.YValue, 5);

ma[0].Type = SeriesType.Line;
ma[0].Name = "Simple Moving Average (5 Days)";

// Add the random data.
Chart.SeriesCollection.Add(sc);

// Add the moving average.
Chart.SeriesCollection.Add(ma);
}

SeriesCollection getRandomData(int seed)
{
Random myR = new Random(seed);
SeriesCollection SC = new SeriesCollection();
DateTime dt = new DateTime(2020, 1, 1);
Series s = new Series("Series 1");
for (int b = 1; b < 15; b++)
{
Element e = new Element();
e.XDateTime = dt = dt.AddDays(1);
e.YValue = myR.Next(50);
s.Elements.Add(e);
}
SC.Add(s);
return SC;
}

SeriesCollection getLiveData()
{
DataEngine de = new DataEngine("ConnectionString goes here");
de.ChartObject = Chart; // Necessary to view any errors the dataEngine may throw.
de.SqlStatement = "SELECT XAxisColumn, YAxisColumn FROM ....";
return de.GetSeries();
}
</script>

<html>
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>

<%@ Page Language="vb" Description="dotnetCHARTING Component" %>

<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>

<script runat="server">

Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates using a simple moving average over an n number of days.

Chart.Type = ChartType.Combo
Chart.Width = 600
Chart.Height = 350
Chart.TempDirectory = "temp"
Chart.Debug = True

' Set some styling properties.
Chart.ShadingEffectMode = ShadingEffectMode.Four
Chart.LegendBox.Position = New Point(40, 15)
Chart.LegendBox.Background.ShadingEffectMode = ShadingEffectMode.Background2
Chart.LegendBox.DefaultCorner = BoxCorner.Round
Chart.ChartArea.DefaultCorner = BoxCorner.Round
Chart.ChartArea.CornerSize = 20
Chart.MarginTop = 25
Chart.DefaultElement.Marker.Size = 15
Chart.DefaultSeries.Line.Width = 3

Chart.XAxis.TimeInterval = TimeInterval.Day

' *DYNAMIC DATA NOTE*
' This sample uses random data to populate the chart. To populate
' a chart with database data see the following resources:
' - Use the getLiveData() method using the dataEngine to query a database.
' - Help File > Getting Started > Data Tutorials
' - DataEngine Class in the help file
' - Sample: features/DataEngine.aspx
Dim sc As SeriesCollection = getRandomData(3)

' Because the simple moving average calculation takes elements starting with the latest, the series is reversed using the sort method.
sc.Sort(ElementValue.XDateTime, "Desc")

' Get the moving average
Dim ma As SeriesCollection = FinancialEngine.SimpleMovingAverage(sc, ElementValue.YValue, 5)

ma(0).Type = SeriesType.Line
ma(0).Name = "Simple Moving Average (5 Days)"

' Add the random data.
Chart.SeriesCollection.Add(sc)

' Add the moving average.
Chart.SeriesCollection.Add(ma)
End Sub

Function getRandomData(ByVal seed As Integer) As SeriesCollection
Dim myR As Random = New Random(seed)
Dim SC As SeriesCollection = New SeriesCollection()
Dim dt As DateTime = New DateTime(2020, 1, 1)
Dim s As Series = New Series("Series 1")
For b As Integer = 1 To 14
Dim e As Element = New Element()
dt = dt.AddDays(1)
e.XDateTime = dt
e.YValue = myR.Next(50)
s.Elements.Add(e)
Next b
SC.Add(s)
Return SC
End Function

Function getLiveData() As SeriesCollection
Dim de As DataEngine = New DataEngine("ConnectionString goes here")
de.ChartObject = Chart ' Necessary to view any errors the dataEngine may throw.
de.SqlStatement = "SELECT XAxisColumn, YAxisColumn FROM ...."
Return de.GetSeries()
End Function
</script>

<html>
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>

Sample FilenameSMAUsage.aspx
Version5.3
Uses DatabaseNo
