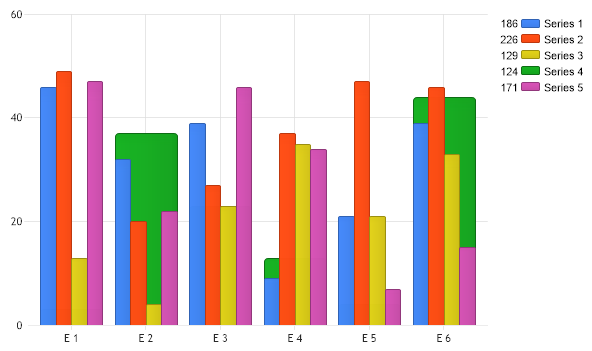

Invisible Axis
<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
SeriesCollection getRandomData()
{
SeriesCollection SC = new SeriesCollection();
Random myR = new Random();
for(int a = 1; a < 6; a++)
{
Series s = new Series();
s.Name = "Series " + a;
for(int b = 1; b < 7; b++)
{
Element e = new Element();
e.Name = "E " + b;
e.YValue = myR.Next(50);
s.Elements.Add(e);
}
SC.Add(s);
}
return SC;
}
void Page_Load(Object sender,EventArgs e)
{
// Set the title.
//Chart.Title="My Chart";
Chart.Type = ChartType.Combo;
Chart.TempDirectory="temp";
// Set the chart size.
Chart.Width = 600;
Chart.Height = 350;
// Get the data.
SeriesCollection sc = getRandomData();
//Set one of the series on a different axis
Axis newAxis = new Axis();
sc[3].XAxis = newAxis;
//Clear method makes the original axis invisible.
Chart.XAxis.Clear();
// Add the random data.
Chart.SeriesCollection.Add(sc);
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>Invisible Axis Sample</title>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
Function getRandomData() As SeriesCollection
Dim SC As SeriesCollection = New SeriesCollection()
Dim myR As Random = New Random()
For a As Integer = 1 To 5
Dim s As Series = New Series()
s.Name = "Series " & a
For b As Integer = 1 To 6
Dim e As Element = New Element()
e.Name = "E " & b
e.YValue = myR.Next(50)
s.Elements.Add(e)
Next b
SC.Add(s)
Next a
Return SC
End Function
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Set the title.
'Chart.Title="My Chart";
Chart.Type = ChartType.Combo
Chart.TempDirectory="temp"
' Set the chart size.
Chart.Width = 600
Chart.Height = 350
' Get the data.
Dim sc As SeriesCollection = getRandomData()
'Set one of the series on a different axis
Dim newAxis As Axis = New Axis()
sc(3).XAxis = newAxis
'Clear method makes the original axis invisible.
Chart.XAxis.Clear()
' Add the random data.
Chart.SeriesCollection.Add(sc)
End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>Invisible Axis Sample</title>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
- Sample FilenameInvisibleAxis.aspx
- VersionLegacy (Pre 3.0)
- Uses DatabaseNo
