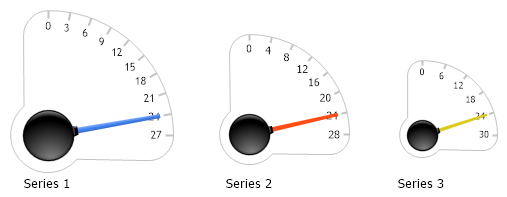

Gauge Sizing

Demonstrates specifying a gauge's size.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>

<script runat="server">

void Page_Load(Object sender, EventArgs e)
{
// Demonstrates specifying a gauge's size.

Chart.TempDirectory = "temp";
Chart.Debug = true;

Chart.Type = ChartType.Gauges;
Chart.Size = "600x250";
//Chart.Title = ".netCHARTING Sample";
Chart.LegendBox.Visible = false;
Chart.DefaultSeries.GaugeBorderBox.Background.Color = Color.White;

// *DYNAMIC DATA NOTE*
// This sample uses random data to populate the chart. To populate
// a chart with database data see the following resources:
// - Use the getLiveData() method using the dataEngine to query a database.
// - Help File > Getting Started > Data Tutorials
// - DataEngine Class in the help file
// - Sample: features/DataEngine.aspx

SeriesCollection mySC = getRandomData();
mySC[0].YAxis = new Axis();
mySC[1].YAxis = new Axis();
mySC[2].YAxis = new Axis();
mySC[0].YAxis.SweepAngle = 90;
mySC[1].YAxis.SweepAngle = 90;
mySC[2].YAxis.SweepAngle = 90;
mySC[0].GaugeBorderBox.Position = new Size(250, 250);
mySC[1].GaugeBorderBox.Position = new Size(200, 200);
mySC[2].GaugeBorderBox.Position = new Size(150, 150);

mySC[0].YAxis.Interval = 3;
mySC[1].YAxis.Interval = 4;
mySC[2].YAxis.Interval = 6;

mySC[0].YAxis.DefaultTick.Line.Length = 8;
mySC[1].YAxis.DefaultTick.Line.Length = 6;
mySC[2].YAxis.DefaultTick.Line.Length = 5;

mySC[1].YAxis.DefaultTick.Label.Font = new Font("tahoma", 8F);
mySC[2].YAxis.DefaultTick.Label.Font = new Font("tahoma", 7F);
// Add the random data.
Chart.SeriesCollection.Add(mySC);
}

SeriesCollection getRandomData()
{
SeriesCollection SC = new SeriesCollection();
int a = 0;
int b = 0;
for (a = 1; a < 4; a++)
{
Series s = new Series("Series " + a.ToString());
for (b = 1; b < 2; b++)
{
Element e = new Element("Element " + b.ToString());
e.YValue = 24;
s.Elements.Add(e);
}
SC.Add(s);
}
return SC;
}

SeriesCollection getLiveData()
{
DataEngine de = new DataEngine("ConnectionString goes here");
de.ChartObject = Chart; // Necessary to view any errors the dataEngine may throw.
de.SqlStatement = "SELECT XAxisColumn, YAxisColumn FROM ....";
return de.GetSeries();
}

</script>

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>

<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>

<script runat="server">

Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates specifying a gauge's size.

Chart.TempDirectory = "temp"
Chart.Debug = True

Chart.Type = ChartType.Gauges
Chart.Size = "600x250"
'Chart.Title = ".netCHARTING Sample";
Chart.LegendBox.Visible = False
Chart.DefaultSeries.GaugeBorderBox.Background.Color = Color.White

' *DYNAMIC DATA NOTE*
' This sample uses random data to populate the chart. To populate
' a chart with database data see the following resources:
' - Use the getLiveData() method using the dataEngine to query a database.
' - Help File > Getting Started > Data Tutorials
' - DataEngine Class in the help file
' - Sample: features/DataEngine.aspx

Dim mySC As SeriesCollection = getRandomData()
mySC(0).YAxis = New Axis()
mySC(1).YAxis = New Axis()
mySC(2).YAxis = New Axis()
mySC(0).YAxis.SweepAngle = 90
mySC(1).YAxis.SweepAngle = 90
mySC(2).YAxis.SweepAngle = 90
mySC(0).GaugeBorderBox.Position = New Size(250, 250)
mySC(1).GaugeBorderBox.Position = New Size(200, 200)
mySC(2).GaugeBorderBox.Position = New Size(150, 150)

mySC(0).YAxis.Interval = 3
mySC(1).YAxis.Interval = 4
mySC(2).YAxis.Interval = 6

mySC(0).YAxis.DefaultTick.Line.Length = 8
mySC(1).YAxis.DefaultTick.Line.Length = 6
mySC(2).YAxis.DefaultTick.Line.Length = 5

mySC(1).YAxis.DefaultTick.Label.Font = New Font("tahoma", 8F)
mySC(2).YAxis.DefaultTick.Label.Font = New Font("tahoma", 7F)
' Add the random data.
Chart.SeriesCollection.Add(mySC)
End Sub

Function getRandomData() As SeriesCollection
Dim SC As SeriesCollection = New SeriesCollection()
Dim a As Integer = 0
Dim b As Integer = 0
For a = 1 To 3
Dim s As Series = New Series("Series " & a.ToString())
For b = 1 To 1
Dim e As Element = New Element("Element " & b.ToString())
e.YValue = 24
s.Elements.Add(e)
Next b
SC.Add(s)
Next a
Return SC
End Function

Function getLiveData() As SeriesCollection
Dim de As DataEngine = New DataEngine("ConnectionString goes here")
de.ChartObject = Chart ' Necessary to view any errors the dataEngine may throw.
de.SqlStatement = "SELECT XAxisColumn, YAxisColumn FROM ...."
Return de.GetSeries()
End Function

</script>

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>

Sample FilenameGaugeSizing.aspx
Version4.4
Uses DatabaseNo
