PreviousFinancial One Value Indicators
<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
<script runat="server">
void Page_Load(Object sender,EventArgs e)
{

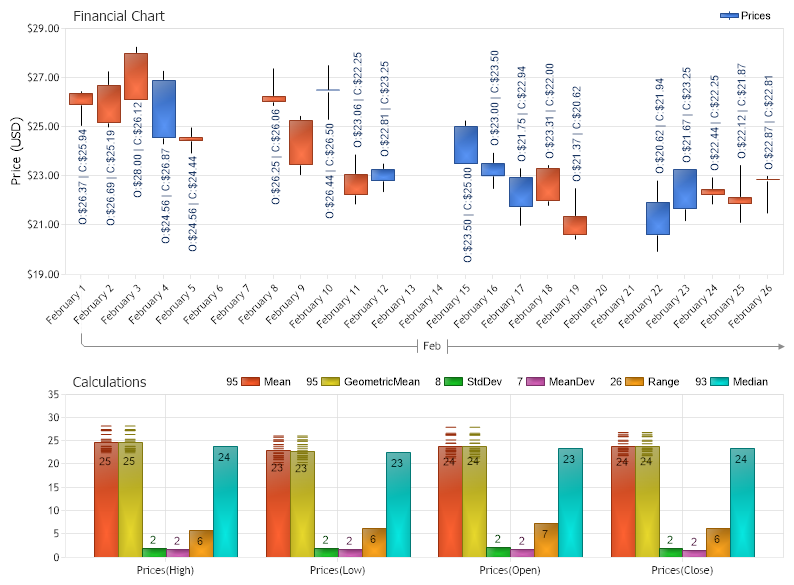

// Demonstrates the use of one-value financial indicators arithmeticMean ,
// geometric mean, standard deviation, mean deviation, range, median.
// The Financial Chart
FinancialChart.Title="Financial Chart";
FinancialChart.TempDirectory="temp";
FinancialChart.Debug=true;
FinancialChart.ShadingEffect = true;
FinancialChart.LegendBox.Template ="%icon %name";
FinancialChart.Size="800X600";
FinancialChart.YAxis.Label.Text = "Price (USD)";
FinancialChart.YAxis.FormatString = "currency";
FinancialChart.YAxis.Scale = Scale.Range;
FinancialChart.TitleBox.Position = TitleBoxPosition.FullWithLegend;
FinancialChart.DefaultElement.ShowValue = true;
FinancialChart.DefaultElement.Marker.Visible = false;
// Modify the x axis labels.
FinancialChart.XAxis.Scale = Scale.Time;
FinancialChart.XAxis.TimeInterval = TimeInterval.Day;
FinancialChart.XAxis.TimeScaleLabels.DayFormatString = "o";
FinancialChart.XAxis.TimeScaleLabels.RangeIntervals.Add(TimeInterval.Month);
FinancialChart.XAxis.TimeScaleLabels.MonthFormatString = "MMM";
DataEngine priceDataEngine = new DataEngine ();
priceDataEngine.ChartObject = FinancialChart;
priceDataEngine.ChartType = ChartType.Financial;
priceDataEngine.ConnectionString = ConfigurationManager.AppSettings["DNCConnectionString"];
priceDataEngine.DateGrouping = TimeInterval.Day;
priceDataEngine.StartDate = new DateTime (2021,2,1);
priceDataEngine.EndDate = new DateTime (2021,2,28);
// Here we import financial data sample from the FinancialCompany table from within chartsample.mdb
priceDataEngine.SqlStatement = @"SELECT TransDate, HighPrice, LowPrice, OpenPrice, ClosePrice FROM FinancialCompany WHERE TransDate >= #STARTDATE# AND TransDate <= #ENDDATE# ORDER BY TransDate";
priceDataEngine.DataFields = "xAxis=TransDate,High=HighPrice,Low=LowPrice,Open=OpenPrice,Close=ClosePrice";
SeriesCollection sc = priceDataEngine.GetSeries ();
Series prices = null;
if(sc.Count>0)
prices = sc[0];
else
return;
prices.DefaultElement.ToolTip="L:%Low | H:%High";
prices.DefaultElement.SmartLabel.Text="O:%Open | C:%Close";
prices.Type = SeriesTypeFinancial.CandleStick;
CalendarPattern cp = new CalendarPattern (TimeInterval.Day, TimeInterval.Week, "0000001");
prices.Trim (cp, ElementValue.XDateTime);
prices.Name = "Prices";
FinancialChart.SeriesCollection.Add (prices);
FinancialChart.ChartAreaLayout.Mode = ChartAreaLayoutMode.Vertical;
/*
* One-Value Indicators
*/
ChartArea indicatorsChartArea = new ChartArea ("Calculations");
indicatorsChartArea.TitleBox.Position = TitleBoxPosition.FullWithLegend;
indicatorsChartArea.XAxis = new Axis ();
indicatorsChartArea.YAxis = new Axis ();
indicatorsChartArea.HeightPercentage = 40;
indicatorsChartArea.DefaultElement.DefaultSubValue.Type = SubValueType.Line;
indicatorsChartArea.DefaultElement.DefaultSubValue.Line.Length = 10;
FinancialChart.ExtraChartAreas.Add (indicatorsChartArea);
// Mean - calculates the arithmetic mean of the currently registered data set.
Series mean = new Series ("Mean");
// If this option is setted true it will allow the user to place all the source values
// into the element�s subValues collection
FinancialEngine.Options.PopulateSubValues = true;
mean.Elements.Add (FinancialEngine.Mean (prices, ElementValue.High));
mean.Elements.Add (FinancialEngine.Mean (prices, ElementValue.Low));
mean.Elements.Add (FinancialEngine.Mean (prices, ElementValue.Open));
mean.Elements.Add (FinancialEngine.Mean (prices, ElementValue.Close));
mean.Type = SeriesType.Bar;
indicatorsChartArea.SeriesCollection.Add (mean);
// GeometricMean - calculates the geometric mean of the currently registered data set.
Series GeometricMean = new Series ("GeometricMean");
GeometricMean.Elements.Add (FinancialEngine.GeometricMean (prices, ElementValue.High));
GeometricMean.Elements.Add (FinancialEngine.GeometricMean (prices, ElementValue.Low));
GeometricMean.Elements.Add (FinancialEngine.GeometricMean (prices, ElementValue.Open));
GeometricMean.Elements.Add (FinancialEngine.GeometricMean (prices, ElementValue.Close));
GeometricMean.Type = SeriesType.Bar;
indicatorsChartArea.SeriesCollection.Add (GeometricMean);
// StdDev - calculates the sample standard variance of the currently registered data set.
Series stdDev = new Series ("StdDev");
// Here we set the value of the option WithSubValues to false.
FinancialEngine.Options.Reset();
stdDev.Elements.Add (FinancialEngine.StandardDeviation (prices, ElementValue.High));
stdDev.Elements.Add (FinancialEngine.StandardDeviation (prices, ElementValue.Low));
stdDev.Elements.Add (FinancialEngine.StandardDeviation (prices, ElementValue.Open));
stdDev.Elements.Add (FinancialEngine.StandardDeviation (prices, ElementValue.Close));
stdDev.Type = SeriesType.Bar;
indicatorsChartArea.SeriesCollection.Add (stdDev);
// MeanDev - calculates the mean deviation of the currently registered data set.
Series meanDev = new Series ("MeanDev");
meanDev.Elements.Add (FinancialEngine.MeanDeviation (prices, ElementValue.High));
meanDev.Elements.Add (FinancialEngine.MeanDeviation (prices, ElementValue.Low));
meanDev.Elements.Add (FinancialEngine.MeanDeviation (prices, ElementValue.Open));
meanDev.Elements.Add (FinancialEngine.MeanDeviation (prices, ElementValue.Close));
meanDev.Type = SeriesType.Bar;
indicatorsChartArea.SeriesCollection.Add (meanDev);
// Range - calculates the range of the currently registered data set.
Series range = new Series("Range");
range.Elements.Add (FinancialEngine.Range (prices, ElementValue.High));
range.Elements.Add (FinancialEngine.Range (prices, ElementValue.Low));
range.Elements.Add (FinancialEngine.Range (prices, ElementValue.Open));
range.Elements.Add (FinancialEngine.Range (prices, ElementValue.Close));
range.Type = SeriesType.Bar;
indicatorsChartArea.SeriesCollection.Add (range);
// Median - calculates the median of the currently registered data set.
Series median = new Series ("Median");
median.Elements.Add (FinancialEngine.Median (prices, ElementValue.High));
median.Elements.Add (FinancialEngine.Median (prices, ElementValue.Low));
median.Elements.Add (FinancialEngine.Median (prices, ElementValue.Open));
median.Elements.Add (FinancialEngine.Median (prices, ElementValue.Close));
median.Type = SeriesType.Bar;
indicatorsChartArea.SeriesCollection.Add (median);
}
</script>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="FinancialChart" runat="server"/>
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates the use of one-value financial indicators arithmeticMean ,
' geometric mean, standard deviation, mean deviation, range, median.
' The Financial Chart
FinancialChart.Title="Financial Chart"
FinancialChart.TempDirectory="temp"
FinancialChart.Debug=True
FinancialChart.ShadingEffect = True
FinancialChart.LegendBox.Template ="%icon %name"
FinancialChart.Size="800X600"
FinancialChart.YAxis.Label.Text = "Price (USD)"
FinancialChart.YAxis.FormatString = "currency"
FinancialChart.YAxis.Scale = Scale.Range
FinancialChart.TitleBox.Position = TitleBoxPosition.FullWithLegend
FinancialChart.DefaultElement.ShowValue = True
FinancialChart.DefaultElement.Marker.Visible = False
' Modify the x axis labels.
FinancialChart.XAxis.Scale = Scale.Time
FinancialChart.XAxis.TimeInterval = TimeInterval.Day
FinancialChart.XAxis.TimeScaleLabels.DayFormatString = "o"
FinancialChart.XAxis.TimeScaleLabels.RangeIntervals.Add(TimeInterval.Month)
FinancialChart.XAxis.TimeScaleLabels.MonthFormatString = "MMM"
Dim priceDataEngine As DataEngine = New DataEngine ()
priceDataEngine.ChartObject = FinancialChart
priceDataEngine.ChartType = ChartType.Financial
priceDataEngine.ConnectionString = ConfigurationManager.AppSettings("DNCConnectionString")
priceDataEngine.DateGrouping = TimeInterval.Day
priceDataEngine.StartDate = New DateTime (2021,2,1)
priceDataEngine.EndDate = New DateTime (2021,2,28)
' Here we import financial data sample from the FinancialCompany table from within chartsample.mdb
priceDataEngine.SqlStatement = "SELECT TransDate, HighPrice, LowPrice, OpenPrice, ClosePrice FROM FinancialCompany WHERE TransDate >= #STARTDATE# AND TransDate <= #ENDDATE# ORDER BY TransDate"
priceDataEngine.DataFields = "xAxis=TransDate,High=HighPrice,Low=LowPrice,Open=OpenPrice,Close=ClosePrice"
Dim sc As SeriesCollection = priceDataEngine.GetSeries ()
Dim prices As Series = Nothing
If sc.Count>0 Then
prices = sc(0)
Else
Return
End If
prices.DefaultElement.ToolTip="L:%Low | H:%High"
prices.DefaultElement.SmartLabel.Text="O:%Open | C:%Close"
prices.Type = SeriesTypeFinancial.CandleStick
Dim cp As CalendarPattern = New CalendarPattern (TimeInterval.Day, TimeInterval.Week, "0000001")
prices.Trim (cp, ElementValue.XDateTime)
prices.Name = "Prices"
FinancialChart.SeriesCollection.Add (prices)
FinancialChart.ChartAreaLayout.Mode = ChartAreaLayoutMode.Vertical
'
'* One-Value Indicators
'
Dim indicatorsChartArea As ChartArea = New ChartArea ("Calculations")
indicatorsChartArea.TitleBox.Position = TitleBoxPosition.FullWithLegend
indicatorsChartArea.XAxis = New Axis ()
indicatorsChartArea.YAxis = New Axis ()
indicatorsChartArea.HeightPercentage = 40
indicatorsChartArea.DefaultElement.DefaultSubValue.Type = SubValueType.Line
indicatorsChartArea.DefaultElement.DefaultSubValue.Line.Length = 10
FinancialChart.ExtraChartAreas.Add (indicatorsChartArea)
' Mean - calculates the arithmetic mean of the currently registered data set.
Dim mean As Series = New Series ("Mean")
' If this option is setted true it will allow the user to place all the source values
' into the element�s subValues collection
FinancialEngine.Options.PopulateSubValues = True
mean.Elements.Add (FinancialEngine.Mean (prices, ElementValue.High))
mean.Elements.Add (FinancialEngine.Mean (prices, ElementValue.Low))
mean.Elements.Add (FinancialEngine.Mean (prices, ElementValue.Open))
mean.Elements.Add (FinancialEngine.Mean (prices, ElementValue.Close))
mean.Type = SeriesType.Bar
indicatorsChartArea.SeriesCollection.Add (mean)
' GeometricMean - calculates the geometric mean of the currently registered data set.
Dim GeometricMean As Series = New Series ("GeometricMean")
GeometricMean.Elements.Add (FinancialEngine.GeometricMean (prices, ElementValue.High))
GeometricMean.Elements.Add (FinancialEngine.GeometricMean (prices, ElementValue.Low))
GeometricMean.Elements.Add (FinancialEngine.GeometricMean (prices, ElementValue.Open))
GeometricMean.Elements.Add (FinancialEngine.GeometricMean (prices, ElementValue.Close))
GeometricMean.Type = SeriesType.Bar
indicatorsChartArea.SeriesCollection.Add (GeometricMean)
' StdDev - calculates the sample standard variance of the currently registered data set.
Dim stdDev As Series = New Series ("StdDev")
' Here we set the value of the option WithSubValues to false.
FinancialEngine.Options.Reset()
stdDev.Elements.Add (FinancialEngine.StandardDeviation (prices, ElementValue.High))
stdDev.Elements.Add (FinancialEngine.StandardDeviation (prices, ElementValue.Low))
stdDev.Elements.Add (FinancialEngine.StandardDeviation (prices, ElementValue.Open))
stdDev.Elements.Add (FinancialEngine.StandardDeviation (prices, ElementValue.Close))
stdDev.Type = SeriesType.Bar
indicatorsChartArea.SeriesCollection.Add (stdDev)
' MeanDev - calculates the mean deviation of the currently registered data set.
Dim meanDev As Series = New Series ("MeanDev")
meanDev.Elements.Add (FinancialEngine.MeanDeviation (prices, ElementValue.High))
meanDev.Elements.Add (FinancialEngine.MeanDeviation (prices, ElementValue.Low))
meanDev.Elements.Add (FinancialEngine.MeanDeviation (prices, ElementValue.Open))
meanDev.Elements.Add (FinancialEngine.MeanDeviation (prices, ElementValue.Close))
meanDev.Type = SeriesType.Bar
indicatorsChartArea.SeriesCollection.Add (meanDev)
' Range - calculates the range of the currently registered data set.
Dim range As Series = New Series("Range")
range.Elements.Add (FinancialEngine.Range (prices, ElementValue.High))
range.Elements.Add (FinancialEngine.Range (prices, ElementValue.Low))
range.Elements.Add (FinancialEngine.Range (prices, ElementValue.Open))
range.Elements.Add (FinancialEngine.Range (prices, ElementValue.Close))
range.Type = SeriesType.Bar
indicatorsChartArea.SeriesCollection.Add (range)
' Median - calculates the median of the currently registered data set.
Dim median As Series = New Series ("Median")
median.Elements.Add (FinancialEngine.Median (prices, ElementValue.High))
median.Elements.Add (FinancialEngine.Median (prices, ElementValue.Low))
median.Elements.Add (FinancialEngine.Median (prices, ElementValue.Open))
median.Elements.Add (FinancialEngine.Median (prices, ElementValue.Close))
median.Type = SeriesType.Bar
indicatorsChartArea.SeriesCollection.Add (median)
End Sub
</script>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="FinancialChart" runat="server"/>
</div>
</body>
</html>
- Sample FilenameFinancialOneValueIndicators.aspx
- VersionLegacy (Pre 3.0)
- Uses DatabaseYes
