FinancialMA

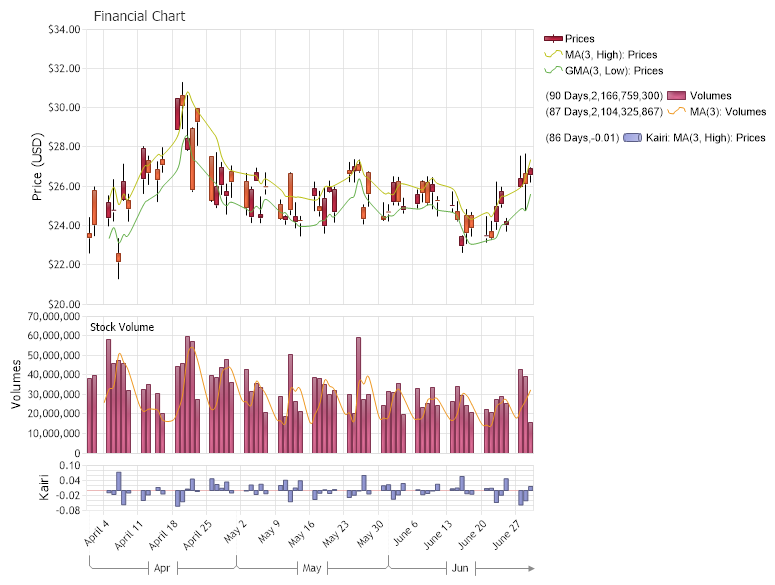

Demonstrates the use of the SimpleMovingAverages and GeometricalMovingAverage.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Financial Moving Average Sample</title>
<script runat="server">

void Page_Load(Object sender,EventArgs e)
{
// Demonstrates the use of the SimpleMovingAverages and GeometricalMovingAverage

// First we declare a chart of type FinancialChart
// The Financial Chart
FinancialChart.Title="Financial Chart";
FinancialChart.TempDirectory="temp";
FinancialChart.Debug=true;
FinancialChart.ShadingEffect = true;
FinancialChart.LegendBox.Template ="%icon %name";
FinancialChart.Size="800X600";
FinancialChart.PaletteName = Palette.Three;
FinancialChart.YAxis.Label.Text = "Price (USD)";
FinancialChart.YAxis.FormatString = "currency";
FinancialChart.YAxis.Scale = Scale.Range;
//FinancialChart.TitleBox.Position = TitleBoxPosition.FullWithLegend;
FinancialChart.DefaultSeries.DefaultElement.Marker.Visible = false;
FinancialChart.DefaultSeries.Type = SeriesType.Spline;

// Modify the x axis labels.
FinancialChart.XAxis.Scale = Scale.Time;
FinancialChart.XAxis.TimeInterval = TimeInterval.Week;
FinancialChart.XAxis.TimeScaleLabels.DayFormatString = "o";
FinancialChart.XAxis.TimeScaleLabels.RangeIntervals.Add(TimeInterval.Month);
FinancialChart.XAxis.TimeScaleLabels.MonthFormatString = "MMM";

// Here we load data samples from the FinancialCompany table from within chartsample.mdb
DataEngine priceDataEngine = new DataEngine(ConfigurationManager.AppSettings["DNCConnectionString"]);
priceDataEngine.ChartObject = FinancialChart;
priceDataEngine.ChartType = ChartType.Financial;
priceDataEngine.DateGrouping = TimeInterval.Week;
priceDataEngine.StartDate = new DateTime(2021,4,1);
priceDataEngine.EndDate = new DateTime(2021,6,30);
priceDataEngine.SqlStatement = @"SELECT TransDate, HighPrice, LowPrice, OpenPrice, ClosePrice FROM FinancialCompany WHERE TransDate >= #STARTDATE# AND TransDate <= #ENDDATE# ORDER BY TransDate";
priceDataEngine.DataFields = "xAxis=TransDate,High=HighPrice,Low=LowPrice,Open=OpenPrice,Close=ClosePrice";

SeriesCollection sc = priceDataEngine.GetSeries ();
Series prices = null;
if(sc.Count>0)
prices = sc[0];
else
return;

prices.DefaultElement.ToolTip="L:%Low-H:%High";
prices.DefaultElement.SmartLabel.Font = new Font("Arial", 6);
prices.DefaultElement.SmartLabel.Text="O:%Open-C:%Close";
prices.Type = SeriesTypeFinancial.CandleStick;

CalendarPattern cp = new CalendarPattern (TimeInterval.Day, TimeInterval.Week, "0000001");
prices.Trim (cp, ElementValue.XDateTime);
prices.Name = "Prices";
FinancialChart.SeriesCollection.Add (prices);

// Create the second chart area
ChartArea volumeChartArea = new ChartArea();
volumeChartArea.Label.Text = "Stock Volume";
volumeChartArea.YAxis.Label.Text = "Volumes";
volumeChartArea.Series.Name="Stock Volume";
volumeChartArea.HeightPercentage = 30;
volumeChartArea.Series.DefaultElement.ToolTip="%YValue";
FinancialChart.ExtraChartAreas.Add(volumeChartArea);

// Add a volume series to the chart area
DataEngine volumeDataEngine = new DataEngine(ConfigurationManager.AppSettings["DNCConnectionString"]);
volumeDataEngine.DateGrouping = TimeInterval.Days;
volumeDataEngine.StartDate=new DateTime (2021,4,1);
volumeDataEngine.EndDate = new DateTime (2021,6,30);
volumeDataEngine.SqlStatement= @"SELECT TransDate,volume FROM FinancialCompany WHERE TransDate >= #STARTDATE# AND TransDate <= #ENDDATE# ORDER BY TransDate";
volumeDataEngine.DataFields="xAxis=TransDate,yAxis=Volume";

Series volumes = volumeDataEngine.GetSeries()[0];
volumes.Trim (cp, ElementValue.XDateTime);
volumes.Name = "Volumes";
volumes.Type = SeriesType.Bar;
volumeChartArea.SeriesCollection.Add (volumes);

/*
* Financial Series Moving Average Indicators
*/

// Here we display the financial simple moving average over a period of three days for the Prices Series
FinancialChart.SeriesCollection.Add (FinancialEngine.SimpleMovingAverage (prices, ElementValue.High, 3));

// Here we display the statistical simple moving average for the Volumes Series
volumeChartArea.SeriesCollection.Add (StatisticalEngine.SimpleMovingAverage (volumes, 3));

// Here we display the financial geometrical moving avereage over a period of three days for the Prices Series
FinancialChart.SeriesCollection.Add (FinancialEngine.GeometricMovingAverage (prices, ElementValue.Low, 3));

// NOTE: The other moving average indicators can be displayed in a similar way

// Kairi indicator - measures as a percentage of the price the divergence between the a moving
// average (generally the simple moving average) of the price and the price itself.
ChartArea kairiChartArea = new ChartArea();
kairiChartArea.YAxis.Label.Text = "Kairi";
kairiChartArea.HeightPercentage = 10;
FinancialChart.ExtraChartAreas.Add (kairiChartArea);

Series kairi = FinancialEngine.Kairi (prices, ElementValue.High,
FinancialEngine.SimpleMovingAverage (prices, ElementValue.High, 3));
kairi.Type = SeriesType.Cylinder;
kairiChartArea.SeriesCollection.Add (kairi);

}

</script>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="FinancialChart" runat="server"/>
</div>
</body>
</html>

<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Financial Moving Average Sample</title>
<script runat="server">

Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates the use of the SimpleMovingAverages and GeometricalMovingAverage

' First we declare a chart of type FinancialChart
' The Financial Chart
FinancialChart.Title="Financial Chart"
FinancialChart.TempDirectory="temp"
FinancialChart.Debug=True
FinancialChart.ShadingEffect = True
FinancialChart.LegendBox.Template ="%icon %name"
FinancialChart.Size="800X600"
FinancialChart.PaletteName = Palette.Three
FinancialChart.YAxis.Label.Text = "Price (USD)"
FinancialChart.YAxis.FormatString = "currency"
FinancialChart.YAxis.Scale = Scale.Range
'FinancialChart.TitleBox.Position = TitleBoxPosition.FullWithLegend;
FinancialChart.DefaultSeries.DefaultElement.Marker.Visible = False
FinancialChart.DefaultSeries.Type = SeriesType.Spline

' Modify the x axis labels.
FinancialChart.XAxis.Scale = Scale.Time
FinancialChart.XAxis.TimeInterval = TimeInterval.Week
FinancialChart.XAxis.TimeScaleLabels.DayFormatString = "o"
FinancialChart.XAxis.TimeScaleLabels.RangeIntervals.Add(TimeInterval.Month)
FinancialChart.XAxis.TimeScaleLabels.MonthFormatString = "MMM"

' Here we load data samples from the FinancialCompany table from within chartsample.mdb
Dim priceDataEngine As DataEngine = New DataEngine(ConfigurationManager.AppSettings("DNCConnectionString"))
priceDataEngine.ChartObject = FinancialChart
priceDataEngine.ChartType = ChartType.Financial
priceDataEngine.DateGrouping = TimeInterval.Week
priceDataEngine.StartDate = New DateTime(2021,4,1)
priceDataEngine.EndDate = New DateTime(2021,6,30)
priceDataEngine.SqlStatement = "SELECT TransDate, HighPrice, LowPrice, OpenPrice, ClosePrice FROM FinancialCompany WHERE TransDate >= #STARTDATE# AND TransDate <= #ENDDATE# ORDER BY TransDate"
priceDataEngine.DataFields = "xAxis=TransDate,High=HighPrice,Low=LowPrice,Open=OpenPrice,Close=ClosePrice"

Dim sc As SeriesCollection = priceDataEngine.GetSeries ()
Dim prices As Series = Nothing
If sc.Count>0 Then
prices = sc(0)
Else
Return
End If

prices.DefaultElement.ToolTip="L:%Low-H:%High"
prices.DefaultElement.SmartLabel.Font = New Font("Arial", 6)
prices.DefaultElement.SmartLabel.Text="O:%Open-C:%Close"
prices.Type = SeriesTypeFinancial.CandleStick

Dim cp As CalendarPattern = New CalendarPattern (TimeInterval.Day, TimeInterval.Week, "0000001")
prices.Trim (cp, ElementValue.XDateTime)
prices.Name = "Prices"
FinancialChart.SeriesCollection.Add (prices)

' Create the second chart area
Dim volumeChartArea As ChartArea = New ChartArea()
volumeChartArea.Label.Text = "Stock Volume"
volumeChartArea.YAxis.Label.Text = "Volumes"
volumeChartArea.Series.Name="Stock Volume"
volumeChartArea.HeightPercentage = 30
volumeChartArea.Series.DefaultElement.ToolTip="%YValue"
FinancialChart.ExtraChartAreas.Add(volumeChartArea)

' Add a volume series to the chart area
Dim volumeDataEngine As DataEngine = New DataEngine(ConfigurationManager.AppSettings("DNCConnectionString"))
volumeDataEngine.DateGrouping = TimeInterval.Days
volumeDataEngine.StartDate = New DateTime (2021,4,1)
volumeDataEngine.EndDate = New DateTime (2021,6,30)
volumeDataEngine.SqlStatement= "SELECT TransDate,volume FROM FinancialCompany WHERE TransDate >= #STARTDATE# AND TransDate <= #ENDDATE# ORDER BY TransDate"
volumeDataEngine.DataFields="xAxis=TransDate,yAxis=Volume"

Dim volumes As Series = volumeDataEngine.GetSeries()(0)
volumes.Trim (cp, ElementValue.XDateTime)
volumes.Name = "Volumes"
volumes.Type = SeriesType.Bar
volumeChartArea.SeriesCollection.Add (volumes)

'
'* Financial Series Moving Average Indicators
'

' Here we display the financial simple moving average over a period of three days for the Prices Series
FinancialChart.SeriesCollection.Add (FinancialEngine.SimpleMovingAverage (prices, ElementValue.High, 3))

' Here we display the statistical simple moving average for the Volumes Series
volumeChartArea.SeriesCollection.Add (StatisticalEngine.SimpleMovingAverage (volumes, 3))

' Here we display the financial geometrical moving avereage over a period of three days for the Prices Series
FinancialChart.SeriesCollection.Add (FinancialEngine.GeometricMovingAverage (prices, ElementValue.Low, 3))

' NOTE: The other moving average indicators can be displayed in a similar way

' Kairi indicator - measures as a percentage of the price the divergence between the a moving
' average (generally the simple moving average) of the price and the price itself.
Dim kairiChartArea As ChartArea = New ChartArea()
kairiChartArea.YAxis.Label.Text = "Kairi"
kairiChartArea.HeightPercentage = 10
FinancialChart.ExtraChartAreas.Add (kairiChartArea)

Dim kairi As Series = FinancialEngine.Kairi (prices, ElementValue.High, FinancialEngine.SimpleMovingAverage (prices, ElementValue.High, 3))
kairi.Type = SeriesType.Cylinder
kairiChartArea.SeriesCollection.Add (kairi)

End Sub

</script>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="FinancialChart" runat="server"/>
</div>
</body>
</html>

Sample FilenameFinancialMA.aspx
VersionLegacy (Pre 3.0)
Uses DatabaseYes
