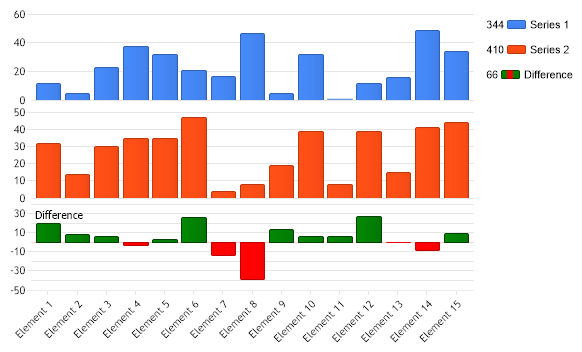

// Demonstrates how a calculated series can be created and placed in a chart area.
// *DYNAMIC DATA NOTE* // This sample uses random data to populate the chart. To populate // a chart with database data see the following resources: // - Classic samples folder // - Help File > Data Tutorials // - Sample: features/DataEngine.aspx SeriesCollection mySC = getRandomData();
ChartArea ca1 = new ChartArea(); ChartArea ca2 = new ChartArea(); ca2.Label.Text = "Difference";
// Create the difference series. Series diffSeries = mySC[1] - mySC[0]; diffSeries.DefaultElement.Color = Color.Red; diffSeries.Name = "Difference";
// Iterate the elements and change their colors based on value. foreach(Element el in diffSeries.Elements) if(el.YValue > 0) el.Color = Color.Green; else el.Color = Color.Red;
// Add the series and chart areas to the chart. Chart.SeriesCollection.Add(mySC[0]); ca1.SeriesCollection.Add(mySC[1]); ca2.SeriesCollection.Add(diffSeries);
Chart.ExtraChartAreas.Add(ca1, ca2);
}
SeriesCollection getRandomData() { SeriesCollection SC = new SeriesCollection(); Random myR = new Random(1); for(int a = 1; a < 3; a++) { Series s = new Series(); s.Name = "Series " + a; for(int b = 1; b < 16; b++) { Element e = new Element(); e.Name = "Element " + b; e.YValue = myR.Next(50); s.Elements.Add(e); } SC.Add(s); }
' Demonstrates how a calculated series can be created and placed in a chart area.
' *DYNAMIC DATA NOTE* ' This sample uses random data to populate the chart. To populate ' a chart with database data see the following resources: ' - Classic samples folder ' - Help File > Data Tutorials ' - Sample: features/DataEngine.aspx Dim mySC As SeriesCollection = getRandomData()
Dim ca1 As ChartArea = New ChartArea() Dim ca2 As ChartArea = New ChartArea() ca2.Label.Text = "Difference"
' Create the difference series. Dim diffSeries As Series = mySC(1) - mySC(0) diffSeries.DefaultElement.Color = Color.Red diffSeries.Name = "Difference"
' Iterate the elements and change their colors based on value. For Each el As Element In diffSeries.Elements If el.YValue > 0 Then el.Color = Color.Green Else el.Color = Color.Red End If Next el
' Add the series and chart areas to the chart. Chart.SeriesCollection.Add(mySC(0)) ca1.SeriesCollection.Add(mySC(1)) ca2.SeriesCollection.Add(diffSeries)
Chart.ExtraChartAreas.Add(ca1, ca2)
End Sub
Function getRandomData() As SeriesCollection Dim SC As SeriesCollection = New SeriesCollection() Dim myR As Random = New Random(1) For a As Integer = 1 To 2 Dim s As Series = New Series() s.Name = "Series " & a For b As Integer = 1 To 15 Dim e As Element = New Element() e.Name = "Element " & b e.YValue = myR.Next(50) s.Elements.Add(e) Next b SC.Add(s) Next a
Return SC End Function </script> </head> <body> <div style="text-align:center"> <dotnet:Chart id="Chart" runat="server" Width="568px" Height="344px"> </dotnet:Chart> </div> </body> </html>
