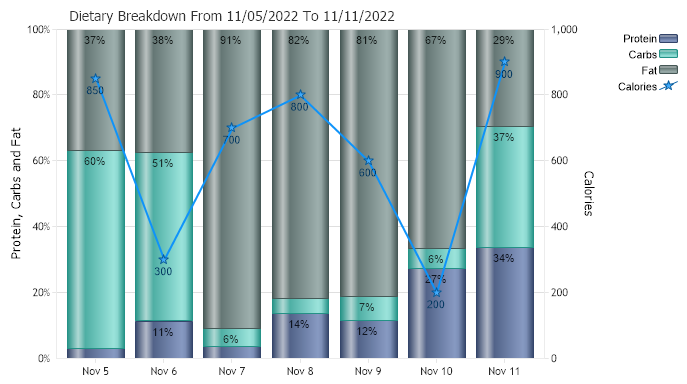

Demonstrates real world combination chart with independently bound axis.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>

<script runat="server">
void Page_Load(Object sender,EventArgs e)
{
//set global properties
Chart.Title="Dietary Breakdown";
Chart.TempDirectory="temp";
Chart.Size = "700X400";
Chart.DateGrouping = TimeInterval.Days;
Chart.ChartArea.YAxis.Scale = Scale.FullStacked;
Chart.XAxis.FormatString="MMM d";
Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings["DNCConnectionString"];
Chart.YAxis.Label.Text = "Protein, Carbs and Fat";

//Add visual effect, set colors and tooltip on mouseover
Chart.ShadingEffectMode = ShadingEffectMode.Three;
Chart.PaletteName = Palette.Two;
Chart.LegendBox.Template = "%name %icon";

Chart.DefaultSeries.DefaultElement.ShowValue = true;

//Add series
Chart.Series.Name="Protein";
Chart.Series.SqlStatement= @"SELECT EatenDate,Sum(Protein) FROM Eaten GROUP BY EatenDate";
Chart.SeriesCollection.Add();

Chart.Series.Name="Carbs";
Chart.Series.SqlStatement= @"SELECT EatenDate,Sum(Carbs) FROM Eaten GROUP BY EatenDate";
Chart.SeriesCollection.Add();

Chart.Series.Name="Fat";
Chart.Series.SqlStatement= @"SELECT EatenDate,Sum(Fat) FROM Eaten GROUP BY EatenDate";
Chart.SeriesCollection.Add();

Chart.Series.Name="Calories";
Chart.Series.Type = SeriesType.Line;
Chart.Series.Line.Width = 2;
Chart.Series.SqlStatement= @"SELECT EatenDate,Sum(Calories) FROM Eaten GROUP BY EatenDate";
//Bind Calories series to second Y axis
Axis CalTotal = new Axis();
CalTotal.Orientation = dotnetCHARTING.Orientation.Right;
CalTotal.Label.Text = "Calories";
Chart.Series.YAxis = CalTotal;
Chart.SeriesCollection.Add();

}
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>Date Grouping By Days Sample</title>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>

Sample FilenameDietDB.aspx
VersionLegacy (Pre 3.0)
Uses DatabaseYes
