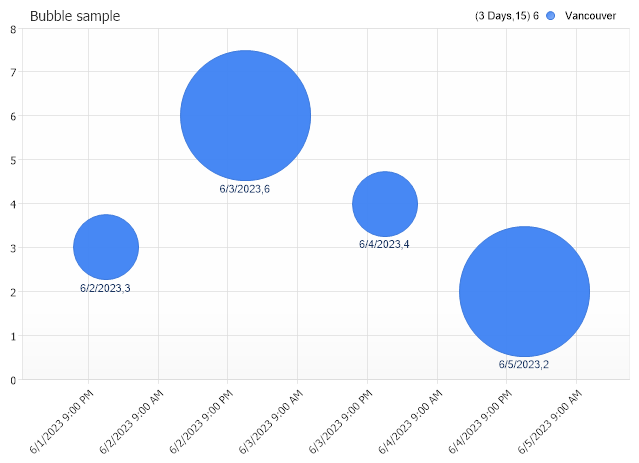

Bubble Date Time
Demonstrates 1 series using the bubble type (x Axis date time)
<%@ Page Language="C#" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
void Page_Load(Object sender,EventArgs e)
{
//set global properties
Chart.Title="Bubble sample";
Chart.TempDirectory="temp";
Chart.Debug=true;
Chart.Type = ChartType.Bubble;
Chart.Use3D=true;
Chart.XAxis.Scale = Scale.Time;
Chart.DefaultSeries.DefaultElement.ShowValue=true;
Chart.DefaultSeries.DefaultElement.LabelTemplate="%Xvalue,%Yvalue";
Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend;
//Adding series programatically
Chart.Series.Name="Vancouver";
Chart.Series.Element = new Element("",new System.DateTime(2023,6,2,0,0,0),3,1);
Chart.Series.Elements.Add();
Chart.Series.Element = new Element("",new System.DateTime(2023,6,3,0,0,0),6,2);
Chart.Series.Elements.Add();
Chart.Series.Name="Vancouver";
Chart.Series.Element = new Element("",new System.DateTime(2023,6,4,0,0,0),4,1);
Chart.Series.Elements.Add();
Chart.Series.Element = new Element("",new System.DateTime(2023,6,5,0,0,0),2,2);
Chart.Series.Elements.Add();
Chart.SeriesCollection.Add();
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Bubble sample</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
'set global properties
Chart.Title="Bubble sample"
Chart.TempDirectory="temp"
Chart.Debug=True
Chart.Type = ChartType.Bubble
Chart.Use3D=True
Chart.XAxis.Scale = Scale.Time
Chart.DefaultSeries.DefaultElement.ShowValue=True
Chart.DefaultSeries.DefaultElement.LabelTemplate="%Xvalue,%Yvalue"
Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend
'Adding series programatically
Chart.Series.Name="Vancouver"
Chart.Series.Element = New Element("",New System.DateTime(2023,6,2,0,0,0),3,1)
Chart.Series.Elements.Add()
Chart.Series.Element = New Element("",New System.DateTime(2023,6,3,0,0,0),6,2)
Chart.Series.Elements.Add()
Chart.Series.Name="Vancouver"
Chart.Series.Element = New Element("",New System.DateTime(2023,6,4,0,0,0),4,1)
Chart.Series.Elements.Add()
Chart.Series.Element = New Element("",New System.DateTime(2023,6,5,0,0,0),2,2)
Chart.Series.Elements.Add()
Chart.SeriesCollection.Add()
End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Bubble sample</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
