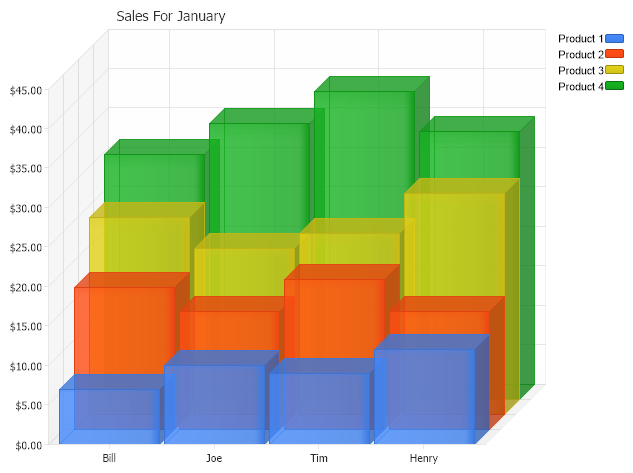

Cluster
Demonstrates use of the cluster property, formatting the y axis, and setting data manually through Series.Data.
<%@ Page Language="C#" trace="false" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
void Page_Load(Object sender,EventArgs e)
{
//set global properties
Chart.Title="Sales For January";
Chart.TempDirectory="temp";
Chart.Debug=true;
Chart.LegendBox.Template = "%Name%icon";
Chart.YAxis.FormatString = "currency";
Chart.Use3D = true;
Chart.DefaultSeries.DefaultElement.Transparency = 20;
Chart.XAxis.ClusterColumns = false;
Chart.XAxis.ReverseSeries=true;
Chart.Depth=15;
//Add a series
Chart.Series.Name = "Product 1";
//Chart.Series.Element = new Element("Bill",7);
Chart.Series.Element.Name="Bill";
Chart.Series.Element.YValue=7;
Chart.Series.Elements.Add();
//Chart.Series.Elements.Add(new Element("Bill",7));
Chart.Series.Elements.Add(new Element("Joe",10));
Chart.Series.Elements.Add(new Element("Tim",9));
Chart.Series.Elements.Add(new Element("Henry",12));
Chart.SeriesCollection.Add();
//Add a series
Chart.Series.Name = "Product 2";
Chart.Series.Elements.Add(new Element("Bill",18));
Chart.Series.Elements.Add(new Element("Joe",15));
Chart.Series.Elements.Add(new Element("Tim",19));
Chart.Series.Elements.Add(new Element("Henry",15));
Chart.SeriesCollection.Add();
//Add a series
Chart.Series.Name = "Product 3";
Chart.Series.Elements.Add(new Element("Bill",25));
Chart.Series.Elements.Add(new Element("Joe",21));
Chart.Series.Elements.Add(new Element("Tim",23));
Chart.Series.Elements.Add(new Element("Henry",28));
Chart.SeriesCollection.Add();
//Add a series
Chart.Series.Name = "Product 4";
Chart.Series.Elements.Add(new Element("Bill",31));
Chart.Series.Elements.Add(new Element("Joe",35));
Chart.Series.Elements.Add(new Element("Tim",39));
Chart.Series.Elements.Add(new Element("Henry",34));
Chart.SeriesCollection.Add();
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Sales Report</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
<%@ Page Language="vb" trace="false" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
'set global properties
Chart.Title="Sales For January"
Chart.TempDirectory="temp"
Chart.Debug=True
Chart.LegendBox.Template = "%Name%icon"
Chart.YAxis.FormatString = "currency"
Chart.Use3D = True
Chart.DefaultSeries.DefaultElement.Transparency = 20
Chart.XAxis.ClusterColumns = False
Chart.XAxis.ReverseSeries=True
Chart.Depth=15
'Add a series
Chart.Series.Name = "Product 1"
'Chart.Series.Element = new Element("Bill",7);
Chart.Series.Element.Name="Bill"
Chart.Series.Element.YValue=7
Chart.Series.Elements.Add()
'Chart.Series.Elements.Add(new Element("Bill",7));
Chart.Series.Elements.Add(New Element("Joe",10))
Chart.Series.Elements.Add(New Element("Tim",9))
Chart.Series.Elements.Add(New Element("Henry",12))
Chart.SeriesCollection.Add()
'Add a series
Chart.Series.Name = "Product 2"
Chart.Series.Elements.Add(New Element("Bill",18))
Chart.Series.Elements.Add(New Element("Joe",15))
Chart.Series.Elements.Add(New Element("Tim",19))
Chart.Series.Elements.Add(New Element("Henry",15))
Chart.SeriesCollection.Add()
'Add a series
Chart.Series.Name = "Product 3"
Chart.Series.Elements.Add(New Element("Bill",25))
Chart.Series.Elements.Add(New Element("Joe",21))
Chart.Series.Elements.Add(New Element("Tim",23))
Chart.Series.Elements.Add(New Element("Henry",28))
Chart.SeriesCollection.Add()
'Add a series
Chart.Series.Name = "Product 4"
Chart.Series.Elements.Add(New Element("Bill",31))
Chart.Series.Elements.Add(New Element("Joe",35))
Chart.Series.Elements.Add(New Element("Tim",39))
Chart.Series.Elements.Add(New Element("Henry",34))
Chart.SeriesCollection.Add()
End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Sales Report</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
