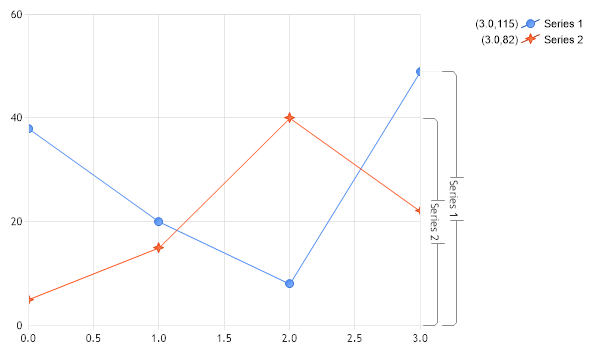

Chart.Type = ChartType.Combo;//Horizontal; Chart.Width = 600; Chart.Height = 350; Chart.TempDirectory = "temp"; Chart.Debug = true; Chart.DefaultSeries.Type = SeriesType.Line; // Demonstrates using axis ticks to identify series and show their values.
// *DYNAMIC DATA NOTE* // This sample uses random data to populate the chart. To populate // a chart with database data see the following resources: // - Classic samples folder // - Help File > Data Tutorials // - Sample: features/DataEngine.aspx SeriesCollection mySC = getRandomData();
// Get the x axis closer to the second axis. Chart.XAxis.Maximum = 3;
// Setup the shadow axis and add it. Axis shadow = Chart.YAxis.Calculate(""); shadow.Orientation = dotnetCHARTING.Orientation.Right; shadow.ClearValues = true; Chart.AxisCollection.Add(shadow);
// Add a tick for each series. foreach(Series s in mySC) { AxisTick tick = new AxisTick(0,s.Calculate("",Calculation.Maximum).YValue); tick.Label.Text = s.Name; tick.Line.Color= Color.FromArgb(140, 140, 140); shadow.ExtraTicks.Add(tick); }
// Add the random data. Chart.SeriesCollection.Add(mySC);
}
SeriesCollection getRandomData() { SeriesCollection SC = new SeriesCollection(); Random myR = new Random(2); for(int a = 1; a < 3; a++) { Series s = new Series(); s.Name = "Series " + a; for(int b = 1; b < 5; b++) { Element e = new Element(); //e.Name = "Element " + b; e.XValue = b-1; e.YValue = myR.Next(50); s.Elements.Add(e); } SC.Add(s); }
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
Chart.Type = ChartType.Combo 'Horizontal; Chart.Width = 600 Chart.Height = 350 Chart.TempDirectory = "temp" Chart.Debug = True Chart.DefaultSeries.Type = SeriesType.Line ' Demonstrates using axis ticks to identify series and show their values.
' *DYNAMIC DATA NOTE* ' This sample uses random data to populate the chart. To populate ' a chart with database data see the following resources: ' - Classic samples folder ' - Help File > Data Tutorials ' - Sample: features/DataEngine.aspx Dim mySC As SeriesCollection = getRandomData()
' Get the x axis closer to the second axis. Chart.XAxis.Maximum = 3
' Setup the shadow axis and add it. Dim shadow As Axis = Chart.YAxis.Calculate("") shadow.Orientation = dotnetCHARTING.Orientation.Right shadow.ClearValues = True Chart.AxisCollection.Add(shadow)
' Add a tick for each series. For Each s As Series In mySC Dim tick As AxisTick = New AxisTick(0,s.Calculate("",Calculation.Maximum).YValue) tick.Label.Text = s.Name tick.Line.Color= Color.FromArgb(140, 140, 140) shadow.ExtraTicks.Add(tick) Next s
' Add the random data. Chart.SeriesCollection.Add(mySC)
End Sub
Function getRandomData() As SeriesCollection Dim SC As SeriesCollection = New SeriesCollection() Dim myR As Random = New Random(2) For a As Integer = 1 To 2 Dim s As Series = New Series() s.Name = "Series " & a For b As Integer = 1 To 4 Dim e As Element = New Element() 'e.Name = "Element " + b; e.XValue = b-1 e.YValue = myR.Next(50) s.Elements.Add(e) Next b SC.Add(s) Next a
Return SC End Function </script> </head> <body> <div style="text-align:center"> <dotnet:Chart id="Chart" runat="server" Width="568px" Height="344px"> </dotnet:Chart> </div> </body> </html>
