Gallery > Title Box

Title Shading

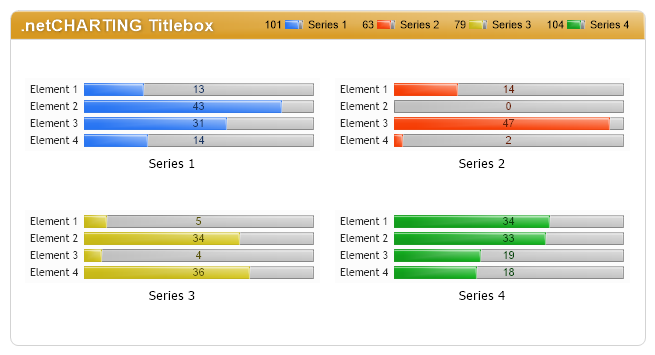

Demonstrates shading the title box using ShadingEffectMode.Five.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>

<script runat="server">

void Page_Load(Object sender, EventArgs e)
{
// Demonstrates shading the title box using ShadingEffectMode.Five.
Chart.TempDirectory = "temp";
Chart.Debug = true;

Chart.Type = ChartType.Gauges;
Chart.Size = "650x350";

Chart.DefaultSeries.GaugeType = GaugeType.Bars;
Chart.DefaultSeries.Type = GaugeType.Horizontal;
Chart.ShadingEffectMode = ShadingEffectMode.Five;
Chart.ChartArea.Line = new Line(Color.LightGray, 1);
Chart.ChartArea.CornerBottomRight = BoxCorner.Round;
Chart.ChartArea.CornerBottomLeft = BoxCorner.Round;
Chart.DefaultElement.SmartLabel.Alignment = LabelAlignment.Center;

Chart.TitleBox.Label = new dotnetCHARTING.Label(".netCHARTING Titlebox", new Font("Arial", 13, FontStyle.Bold), Color.White);
// TitleBox Customization
Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend;
Chart.TitleBox.CornerTopLeft = BoxCorner.Round;
Chart.TitleBox.CornerTopRight = BoxCorner.Round;
Chart.TitleBox.Label.Shadow.Color = Color.FromArgb(100, 0, 0, 0);
Chart.TitleBox.Label.Shadow.Depth = 1;
Chart.TitleBox.Background.ShadingEffectMode = ShadingEffectMode.Five;
Chart.TitleBox.Label.Color = Color.White;
Chart.TitleBox.Background.Color = Color.FromArgb(100, 225, 165, 50);

// *DYNAMIC DATA NOTE*
// This sample uses random data to populate the chart. To populate
// a chart with database data see the following resources:
// - Help File > Getting Started > Data Tutorials
// - DataEngine Class in the help file
// - Sample: features/DataEngine.aspx

SeriesCollection mySC = getRandomData();

// Add the random data.
Chart.SeriesCollection.Add(mySC);
}

SeriesCollection getRandomData()
{
Random myR = new Random();
SeriesCollection SC = new SeriesCollection();
for (int a = 1; a < 5; a++)
{
Series s = new Series("Series " + a.ToString());
for (int b = 1; b < 5; b++)
{
Element e = new Element("Element " + b.ToString());
e.YValue = myR.Next(50);
s.Elements.Add(e);
}
SC.Add(s);
}
return SC;
}

</script>

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>

<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>

<script runat="server">

Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates shading the title box using ShadingEffectMode.Five.
Chart.TempDirectory = "temp"
Chart.Debug = True

Chart.Type = ChartType.Gauges
Chart.Size = "650x350"

Chart.DefaultSeries.GaugeType = GaugeType.Bars
Chart.DefaultSeries.Type = GaugeType.Horizontal
Chart.ShadingEffectMode = ShadingEffectMode.Five
Chart.ChartArea.Line = New Line(Color.LightGray, 1)
Chart.ChartArea.CornerBottomRight = BoxCorner.Round
Chart.ChartArea.CornerBottomLeft = BoxCorner.Round
Chart.DefaultElement.SmartLabel.Alignment = LabelAlignment.Center

Chart.TitleBox.Label = New dotnetCHARTING.Label(".netCHARTING Titlebox", New Font("Arial", 13, FontStyle.Bold), Color.White)
' TitleBox Customization
Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend
Chart.TitleBox.CornerTopLeft = BoxCorner.Round
Chart.TitleBox.CornerTopRight = BoxCorner.Round
Chart.TitleBox.Label.Shadow.Color = Color.FromArgb(100, 0, 0, 0)
Chart.TitleBox.Label.Shadow.Depth = 1
Chart.TitleBox.Background.ShadingEffectMode = ShadingEffectMode.Five
Chart.TitleBox.Label.Color = Color.White
Chart.TitleBox.Background.Color = Color.FromArgb(100, 225, 165, 50)

' *DYNAMIC DATA NOTE*
' This sample uses random data to populate the chart. To populate
' a chart with database data see the following resources:
' - Help File > Getting Started > Data Tutorials
' - DataEngine Class in the help file
' - Sample: features/DataEngine.aspx

Dim mySC As SeriesCollection = getRandomData()

' Add the random data.
Chart.SeriesCollection.Add(mySC)
End Sub

Function getRandomData() As SeriesCollection
Dim myR As Random = New Random()
Dim SC As SeriesCollection = New SeriesCollection()
For a As Integer = 1 To 4
Dim s As Series = New Series("Series " & a.ToString())
For b As Integer = 1 To 4
Dim e As Element = New Element("Element " & b.ToString())
e.YValue = myR.Next(50)
s.Elements.Add(e)
Next b
SC.Add(s)
Next a
Return SC
End Function

</script>

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>
