Sub Value Bar

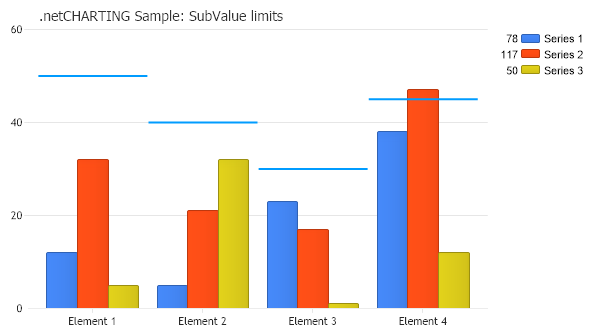

Demonstrates using subvalues to draw limit lines above a group of bars.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>

<script runat="server">

void Page_Load(Object sender, EventArgs e)
{
// Demonstrates using subvalues to draw limit lines above a group of bars.

Chart.TempDirectory = "temp";
Chart.Debug = true;

Chart.Type = ChartType.Combo;
Chart.Size = "600x350";
//Chart.ShadingEffectMode = ShadingEffectMode.Three;
Chart.Title = ".netCHARTING Sample: SubValue limits";

// *DYNAMIC DATA NOTE*
// This sample uses random data to populate the chart. To populate
// a chart with database data see the following resources:
// - Use the getLiveData() method using the dataEngine to query a database.
// - Help File > Getting Started > Data Tutorials
// - DataEngine Class in the help file
// - Sample: features/DataEngine.aspx

SeriesCollection mySC = getRandomData();

// Set defaults for sub values.
Chart.DefaultElement.DefaultSubValue.Type = SubValueType.Line;
Chart.DefaultElement.DefaultSubValue.Line.Length = 109;
Chart.DefaultElement.DefaultSubValue.Line.Width = 2;
Chart.DefaultElement.DefaultSubValue.Line.Color = Color.FromArgb(0, 156, 255);

// Add subvalues to the middle series.
mySC[1][0].SubValues.Add(SubValue.FromValue(50));
mySC[1][1].SubValues.Add(SubValue.FromValue(40));
mySC[1][2].SubValues.Add(SubValue.FromValue(30));
mySC[1][3].SubValues.Add(SubValue.FromValue(45));

// Add the random data.
Chart.SeriesCollection.Add(mySC);
}

SeriesCollection getRandomData()
{
Random myR = new Random(1);
SeriesCollection SC = new SeriesCollection();
int a = 0;
int b = 0;
for (a = 1; a < 4; a++)
{
Series s = new Series("Series " + a.ToString());
for (b = 1; b < 5; b++)
{
Element e = new Element("Element " + b.ToString());
e.YValue = myR.Next(50);
s.Elements.Add(e);
}
SC.Add(s);
}
return SC;
}

SeriesCollection getLiveData()
{
DataEngine de = new DataEngine("ConnectionString goes here");
de.ChartObject = Chart; // Necessary to view any errors the dataEngine may throw.
de.SqlStatement = "SELECT XAxisColumn, YAxisColumn FROM ....";
return de.GetSeries();
}

</script>

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>

<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>

<script runat="server">

Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates using subvalues to draw limit lines above a group of bars.

Chart.TempDirectory = "temp"
Chart.Debug = True

Chart.Type = ChartType.Combo
Chart.Size = "600x350"
'Chart.ShadingEffectMode = ShadingEffectMode.Three;
Chart.Title = ".netCHARTING Sample: SubValue limits"

' *DYNAMIC DATA NOTE*
' This sample uses random data to populate the chart. To populate
' a chart with database data see the following resources:
' - Use the getLiveData() method using the dataEngine to query a database.
' - Help File > Getting Started > Data Tutorials
' - DataEngine Class in the help file
' - Sample: features/DataEngine.aspx

Dim mySC As SeriesCollection = getRandomData()

' Set defaults for sub values.
Chart.DefaultElement.DefaultSubValue.Type = SubValueType.Line
Chart.DefaultElement.DefaultSubValue.Line.Length = 109
Chart.DefaultElement.DefaultSubValue.Line.Width = 2
Chart.DefaultElement.DefaultSubValue.Line.Color = Color.FromArgb(0, 156, 255)

' Add subvalues to the middle series.
mySC(1)(0).SubValues.Add(SubValue.FromValue(50))
mySC(1)(1).SubValues.Add(SubValue.FromValue(40))
mySC(1)(2).SubValues.Add(SubValue.FromValue(30))
mySC(1)(3).SubValues.Add(SubValue.FromValue(45))

' Add the random data.
Chart.SeriesCollection.Add(mySC)
End Sub

Function getRandomData() As SeriesCollection
Dim myR As Random = New Random(1)
Dim SC As SeriesCollection = New SeriesCollection()
Dim a As Integer = 0
Dim b As Integer = 0
For a = 1 To 3
Dim s As Series = New Series("Series " & a.ToString())
For b = 1 To 4
Dim e As Element = New Element("Element " & b.ToString())
e.YValue = myR.Next(50)
s.Elements.Add(e)
Next b
SC.Add(s)
Next a
Return SC
End Function

Function getLiveData() As SeriesCollection
Dim de As DataEngine = New DataEngine("ConnectionString goes here")
de.ChartObject = Chart ' Necessary to view any errors the dataEngine may throw.
de.SqlStatement = "SELECT XAxisColumn, YAxisColumn FROM ...."
Return de.GetSeries()
End Function

</script>

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>

Sample FilenameSubValueBar.aspx
Version5.1
