Sales 7

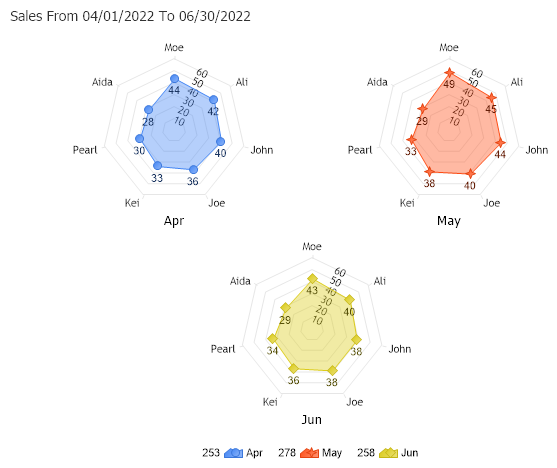

Sales by customer for second quarter of 2002 with MultiRadars graph type and set Limit and Transparency.
<%@ Page Language="C#" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
void Page_Load(Object sender,EventArgs e)
{
//set global properties
Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings["DNCConnectionString"];
Chart.Title="Sales";
Chart.Type = ChartType.Radars;
Chart.LegendBox.Position = LegendBoxPosition.BottomMiddle;
Chart.TempDirectory="temp";
Chart.Debug=true;
Chart.YAxis.Minimum = 0;
Chart.YAxis.Interval = 10;
Chart.DefaultSeries.Limit="7";
Chart.DefaultSeries.DefaultElement.ShowValue=true;
Chart.DefaultSeries.DefaultElement.Transparency=60;
//Add Apr series
Chart.Series.Name="Apr";
Chart.Series.StartDate=new System.DateTime(2022,4,1,0,0,0);
Chart.Series.EndDate = new System.DateTime(2022,4,30,23,59,59);
Chart.Series.SqlStatement= @"SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name";
Chart.SeriesCollection.Add();
//Add May series
Chart.Series.Name="May";
Chart.Series.StartDate=new System.DateTime(2022,5,1,0,0,0);
Chart.Series.EndDate = new System.DateTime(2022,5,31,23,59,59);
Chart.Series.SqlStatement= @"SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name";
Chart.SeriesCollection.Add();
//Add June series
Chart.Series.Name="Jun";
Chart.Series.StartDate=new System.DateTime(2022,6,1,0,0,0);
Chart.Series.EndDate = new System.DateTime(2022,6,30,23,59,59);
Chart.Series.SqlStatement= @"SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name";
Chart.SeriesCollection.Add();
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Sales Report</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
'set global properties
Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings("DNCConnectionString")
Chart.Title="Sales"
Chart.Type = ChartType.Radars
Chart.LegendBox.Position = LegendBoxPosition.BottomMiddle
Chart.TempDirectory="temp"
Chart.Debug=True
Chart.YAxis.Minimum = 0
Chart.YAxis.Interval = 10
Chart.DefaultSeries.Limit="7"
Chart.DefaultSeries.DefaultElement.ShowValue=True
Chart.DefaultSeries.DefaultElement.Transparency=60
'Add Apr series
Chart.Series.Name="Apr"
Chart.Series.StartDate = New System.DateTime(2022,4,1,0,0,0)
Chart.Series.EndDate = New System.DateTime(2022,4,30,23,59,59)
Chart.Series.SqlStatement= "SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name"
Chart.SeriesCollection.Add()
'Add May series
Chart.Series.Name="May"
Chart.Series.StartDate = New System.DateTime(2022,5,1,0,0,0)
Chart.Series.EndDate = New System.DateTime(2022,5,31,23,59,59)
Chart.Series.SqlStatement= "SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name"
Chart.SeriesCollection.Add()
'Add June series
Chart.Series.Name="Jun"
Chart.Series.StartDate = New System.DateTime(2022,6,1,0,0,0)
Chart.Series.EndDate = New System.DateTime(2022,6,30,23,59,59)
Chart.Series.SqlStatement= "SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name"
Chart.SeriesCollection.Add()
End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Sales Report</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
