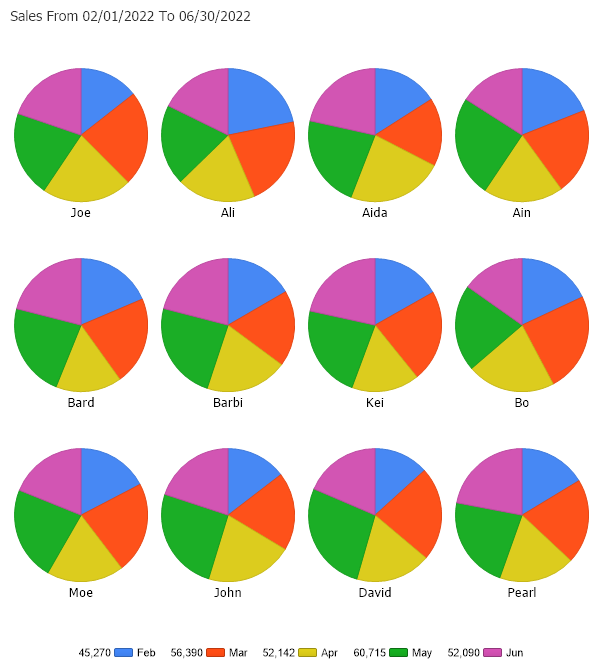

//Add a series Chart.Series.StartDate=new System.DateTime(2022,2,1,0,0,0); Chart.Series.EndDate = new System.DateTime(2022,6,30,23,59,59); Chart.Series.SqlStatement= @"SELECT OrderDate,Total, Name FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# ORDER BY OrderDate"; Chart.SeriesCollection.Add();
<script runat="server"> Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs) 'set global properties Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings("DNCConnectionString") Chart.Title="Sales" Chart.XAxis.Label.Text="%name" Chart.Type = ChartType.Pies Chart.TempDirectory="temp" Chart.Debug=True Chart.Size = "620x680" Chart.DateGrouping = TimeInterval.Months
'Add a series Chart.Series.StartDate = New System.DateTime(2022,2,1,0,0,0) Chart.Series.EndDate = New System.DateTime(2022,6,30,23,59,59) Chart.Series.SqlStatement= "SELECT OrderDate,Total, Name FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# ORDER BY OrderDate" Chart.SeriesCollection.Add()
End Sub </script> <html xmlns="http://www.w3.org/1999/xhtml"><head><title>Sales Report</title></head> <body> <div style="text-align:center"> <dotnet:Chart id="Chart" runat="server"/> </div> </body> </html>
