Sales 4

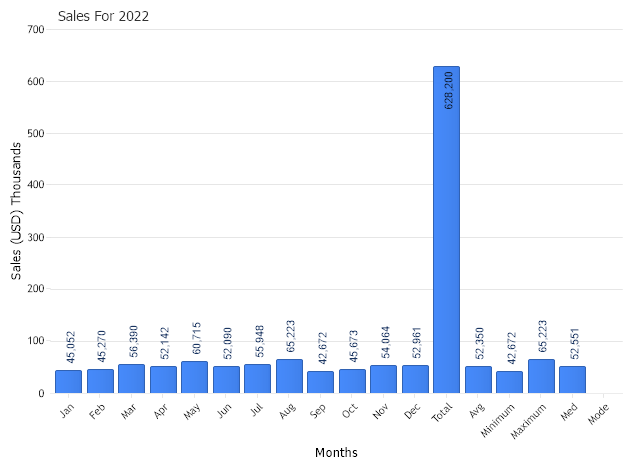

Sales for 2002, adding elements: Max, Min, Sum, Average, Mode, Median. Set scale and decimal points for values.
<%@ Page Language="C#" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
void Page_Load(Object sender,EventArgs e)
{
//set global properties
Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings["DNCConnectionString"];
Chart.Title="Sales";
Chart.XAxis.Label.Text="Months";
Chart.YAxis.Label.Text="USD ";
Chart.TempDirectory="temp";
Chart.Debug=true;
Chart.DefaultSeries.DefaultElement.ShowValue=true;
Chart.LegendBox.Visible = false;
Chart.YAxis=Chart.YAxis.Calculate("Sales (USD) Thousands", new ChangeValueDelegate(MyFunction));
Chart.Series.StartDate=new System.DateTime(2022,1,1,0,0,0);
Chart.Series.EndDate = new System.DateTime(2022,12,31,23,59,59);
Chart.DateGrouping = TimeInterval.Year;
//Add a series
Chart.Series.Name="sales";
Chart.Series.SqlStatement= @"SELECT OrderDate,Total FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# ORDER BY OrderDate";
Chart.Series.Elements.Add(Calculation.Sum,"Total");
Chart.Series.Elements.Add(Calculation.Average,"Avg");
Chart.Series.Elements.Add(Calculation.Minimum,"Minimum");
Chart.Series.Elements.Add(Calculation.Maximum,"Maximum");
Chart.Series.Elements.Add(Calculation.Median,"Med");
Chart.Series.Elements.Add(Calculation.Mode,"Mode");
Chart.SeriesCollection.Add();
}
public static string MyFunction(string value)
{
double dValue = Convert.ToDouble(value);
dValue = dValue/1000;
return Convert.ToString(dValue);
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Sales Report</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
'set global properties
Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings("DNCConnectionString")
Chart.Title="Sales"
Chart.XAxis.Label.Text="Months"
Chart.YAxis.Label.Text="USD "
Chart.TempDirectory="temp"
Chart.Debug=True
Chart.DefaultSeries.DefaultElement.ShowValue=True
Chart.LegendBox.Visible = False
Chart.YAxis=Chart.YAxis.Calculate("Sales (USD) Thousands", New ChangeValueDelegate(AddressOf MyFunction))
Chart.Series.StartDate = New System.DateTime(2022,1,1,0,0,0)
Chart.Series.EndDate = New System.DateTime(2022,12,31,23,59,59)
Chart.DateGrouping = TimeInterval.Year
'Add a series
Chart.Series.Name="sales"
Chart.Series.SqlStatement= "SELECT OrderDate,Total FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# ORDER BY OrderDate"
Chart.Series.Elements.Add(Calculation.Sum,"Total")
Chart.Series.Elements.Add(Calculation.Average,"Avg")
Chart.Series.Elements.Add(Calculation.Minimum,"Minimum")
Chart.Series.Elements.Add(Calculation.Maximum,"Maximum")
Chart.Series.Elements.Add(Calculation.Median,"Med")
Chart.Series.Elements.Add(Calculation.Mode,"Mode")
Chart.SeriesCollection.Add()
End Sub
Public Shared Function MyFunction(ByVal value As String) As String
Dim dValue As Double = Convert.ToDouble(value)
dValue = dValue/1000
Return Convert.ToString(dValue)
End Function
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Sales Report</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
