Sales 3

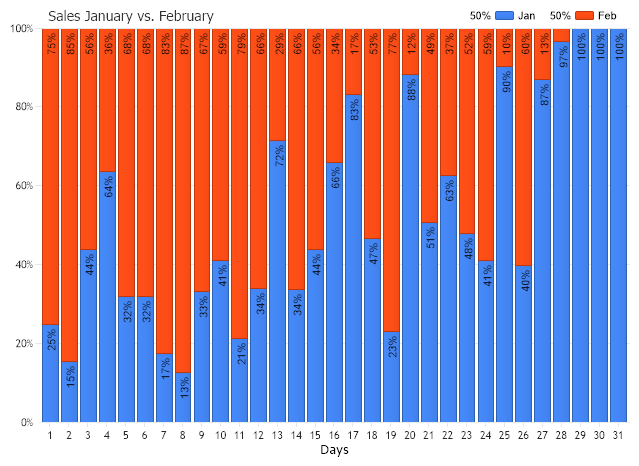

Comparing sales for Jan vs. Feb 2002 by days using ColumnFullStacked.
<%@ Page Language="C#" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
void Page_Load(Object sender,EventArgs e)
{
//set global properties
Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings["DNCConnectionString"];
Chart.Title="Sales January vs. February";
Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend;
Chart.XAxis.Label.Text="Days";
Chart.ShowDateInTitle=false;
Chart.YAxis.Scale = Scale.FullStacked;
Chart.TempDirectory="temp";
Chart.Debug=true;
Chart.DateGrouping = TimeInterval.Month;
Chart.DefaultSeries.DefaultElement.ShowValue=true;
Chart.DefaultSeries.DefaultElement.LabelTemplate="%PercentOfGroup";
//Add series 1
Chart.Series.Name="Jan";
Chart.Series.StartDate=new System.DateTime(2022,1,1,0,0,0);
Chart.Series.EndDate = new System.DateTime(2022,1,31,23,59,59);
Chart.Series.SqlStatement= @"SELECT OrderDate,Total FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# ORDER BY OrderDate";
Chart.SeriesCollection.Add();
//Add series 2
Chart.Series.Name="Feb";
Chart.Series.StartDate=new System.DateTime(2022,2,1,0,0,0);
Chart.Series.EndDate = new System.DateTime(2022,2,28,23,59,59);
Chart.Series.SqlStatement= @"SELECT OrderDate,Total FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# ORDER BY OrderDate";
Chart.SeriesCollection.Add();
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Sales Report</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
'set global properties
Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings("DNCConnectionString")
Chart.Title="Sales January vs. February"
Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend
Chart.XAxis.Label.Text="Days"
Chart.ShowDateInTitle=False
Chart.YAxis.Scale = Scale.FullStacked
Chart.TempDirectory="temp"
Chart.Debug=True
Chart.DateGrouping = TimeInterval.Month
Chart.DefaultSeries.DefaultElement.ShowValue=True
Chart.DefaultSeries.DefaultElement.LabelTemplate="%PercentOfGroup"
'Add series 1
Chart.Series.Name="Jan"
Chart.Series.StartDate = New System.DateTime(2022,1,1,0,0,0)
Chart.Series.EndDate = New System.DateTime(2022,1,31,23,59,59)
Chart.Series.SqlStatement= "SELECT OrderDate,Total FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# ORDER BY OrderDate"
Chart.SeriesCollection.Add()
'Add series 2
Chart.Series.Name="Feb"
Chart.Series.StartDate = New System.DateTime(2022,2,1,0,0,0)
Chart.Series.EndDate = New System.DateTime(2022,2,28,23,59,59)
Chart.Series.SqlStatement= "SELECT OrderDate,Total FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# ORDER BY OrderDate"
Chart.SeriesCollection.Add()
End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Sales Report</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
