SeriesCollection getRandomData() { SeriesCollection SC = new SeriesCollection(); Random myR = new Random(); for (int a = 1; a < 5; a++) { Series s = new Series(); s.Name = "Series " + a; for (int b = 1; b < 4; b++) { Element e = new Element(); e.Name = "Element " + b; e.YDateTimeStart = new DateTime(2023, 4, 4).AddDays(myR.Next(50)); e.YDateTime = e.YDateTimeStart.AddDays(myR.Next(50)); s.Elements.Add(e); } SC.Add(s); } return SC; }
void Page_Load(Object sender,EventArgs e) { // Set the title. //Chart.Title="My Chart";
// Set the chart Type Chart.Type = ChartType.ComboHorizontal;
Function getRandomData() As SeriesCollection Dim SC As SeriesCollection = New SeriesCollection() Dim myR As Random = New Random() For a As Integer = 1 To 4 Dim s As Series = New Series() s.Name = "Series " & a For b As Integer = 1 To 3 Dim e As Element = New Element() e.Name = "Element " & b e.YDateTimeStart = New DateTime(2023, 4, 4).AddDays(myR.Next(50)) e.YDateTime = e.YDateTimeStart.AddDays(myR.Next(50)) s.Elements.Add(e) Next b SC.Add(s) Next a Return SC End Function
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs) ' Set the title. 'Chart.Title="My Chart";
' Set the chart Type Chart.Type = ChartType.ComboHorizontal
' Turn 3D off. Chart.Use3D = False
Chart.ShadingEffectMode = ShadingEffectMode.Seven
' Set a default transparency Chart.DefaultSeries.DefaultElement.Transparency = 20
' Set the x axis label Chart.XAxis.Label.Text="X Axis Label"
' Set the y axis label Chart.YAxis.Label.Text="Y Axis Label"
' Set the directory where the images will be stored. Chart.TempDirectory="temp"
' Set the chart size. Chart.Width = 600 Chart.Height = 350
' Add the random data. Chart.SeriesCollection.Add(getRandomData())

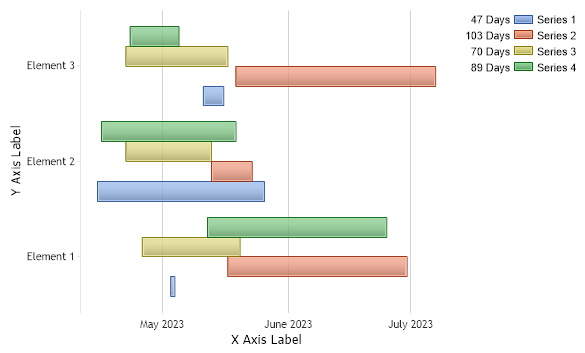

End Sub </script> <html xmlns="http://www.w3.org/1999/xhtml"><head><title>Gallery Sample (Time Gantt Chart in 2D)</title></head> <body> <div style="text-align:center"> <dotnet:Chart id="Chart" runat="server"/> </div> </body> </html>
