Multiple Pies Therms Funnel

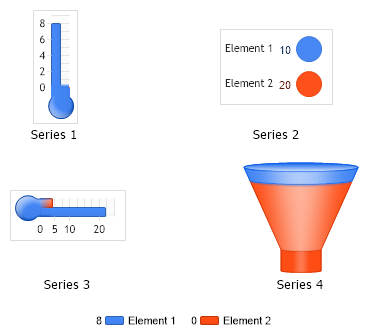

Demonstrates the multiple chart type with pies horizontal and vertical thermometers indicator lights and funnel.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING.Mapping" %>
<script runat="server">

void Page_Load(Object sender,EventArgs e)
{
// Demonstrates the multiple chart type with pies horizontal and vertical thermometers indicator lights and funnel.

Chart.TempDirectory = "temp";
Chart.Debug = true;

Chart.Type = ChartType.Multiple;
Chart.Use3D = true;
Chart.Size = "600x350";
//Chart.Title = ".netCHARTING Sample";

Chart.DefaultSeries.Background.Color = Color.White;
// *DYNAMIC DATA NOTE*
// This sample uses random data to populate the chart. To populate
// a chart with database data see the following resources:
// - Help File > Getting Started > Data Tutorials
// - DataEngine Class in the help file
// - Sample: features/DataEngine.aspx

SeriesCollection mySC = getRandomData();

mySC[0].Type = SeriesTypeMultiple.Gauge;
mySC[0].GaugeType = GaugeType.Vertical;
mySC[0].GaugeLinearStyle = GaugeLinearStyle.Thermometer;
mySC[2].GaugeLinearStyle = GaugeLinearStyle.Thermometer;
mySC[1].Type = SeriesTypeMultiple.Gauge;

mySC[1].GaugeType = GaugeType.IndicatorLight;

mySC[2].Type = SeriesTypeMultiple.Gauge;
mySC[2].GaugeType = GaugeType.Horizontal;

// Add the random data.
Chart.SeriesCollection.Add(mySC);

}

SeriesCollection getRandomData()
{
Random myR = new Random();
SeriesCollection SC = new SeriesCollection();
for(int a = 1; a < 5; a++)
{
Series s = new Series("Series " + a.ToString());
for(int b = 1; b < 3; b++)
{
Element e = new Element("Element " + b.ToString());
e.YValue = myR.Next(50);
e.Length = myR.Next(20);
e.Height = myR.Next(20);
s.Elements.Add(e);
}
SC.Add(s);
}
return SC;
}

</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head><title>.netCHARTING Sample</title></head>
<body>
<div align="center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>

<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING.Mapping" %>
<script runat="server">

Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates the multiple chart type with pies horizontal and vertical thermometers indicator lights and funnel.

Chart.TempDirectory = "temp"
Chart.Debug = True

Chart.Type = ChartType.Multiple
Chart.Use3D = True
Chart.Size = "600x350"
'Chart.Title = ".netCHARTING Sample";

Chart.DefaultSeries.Background.Color = Color.White
' *DYNAMIC DATA NOTE*
' This sample uses random data to populate the chart. To populate
' a chart with database data see the following resources:
' - Help File > Getting Started > Data Tutorials
' - DataEngine Class in the help file
' - Sample: features/DataEngine.aspx

Dim mySC As SeriesCollection = getRandomData()

mySC(0).Type = SeriesTypeMultiple.Gauge
mySC(0).GaugeType = GaugeType.Vertical
mySC(0).GaugeLinearStyle = GaugeLinearStyle.Thermometer
mySC(2).GaugeLinearStyle = GaugeLinearStyle.Thermometer
mySC(1).Type = SeriesTypeMultiple.Gauge

mySC(1).GaugeType = GaugeType.IndicatorLight

mySC(2).Type = SeriesTypeMultiple.Gauge
mySC(2).GaugeType = GaugeType.Horizontal

' Add the random data.
Chart.SeriesCollection.Add(mySC)

End Sub

Function getRandomData() As SeriesCollection
Dim myR As Random = New Random()
Dim SC As SeriesCollection = New SeriesCollection()
For a As Integer = 1 To 4
Dim s As Series = New Series("Series " & a.ToString())
For b As Integer = 1 To 2
Dim e As Element = New Element("Element " & b.ToString())
e.YValue = myR.Next(50)
e.Length = myR.Next(20)
e.Height = myR.Next(20)
s.Elements.Add(e)
Next b
SC.Add(s)
Next a
Return SC
End Function

</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head><title>.netCHARTING Sample</title></head>
<body>
<div align="center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
