Multiple Different Ser Donut Funnel

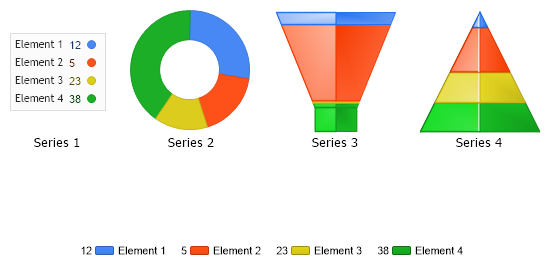

Demonstrates multiple series types in 2D with donut, funnel, pyramid.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Description="dotnetCHARTING Component" %>

<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING.Mapping" %>

<script runat="server">

void Page_Load(Object sender, EventArgs e)
{
// Demonstrates multiple series types in 2D.

Chart.TempDirectory = "temp";
Chart.Debug = true;

Chart.Type = ChartType.Multiple;
Chart.Size = "600x350";
//Chart.Title = ".netCHARTING Sample";

// Demonstrates Multiple series types in 2D.
Chart.DefaultSeries.Type = SeriesTypeMultiple.Pyramid;

// *DYNAMIC DATA NOTE*
// This sample uses random data to populate the chart. To populate
// a chart with database data see the following resources:
// - Help File > Getting Started > Data Tutorials
// - DataEngine Class in the help file
// - Sample: features/DataEngine.aspx

SeriesCollection mySC = getRandomData();

// Add the random data.
Chart.SeriesCollection.Add(mySC);

mySC[0].Type = SeriesTypeMultiple.Gauge;
mySC[0].GaugeType = GaugeType.IndicatorLight;
mySC[1].Type = SeriesTypeMultiple.Donut;
mySC[2].Type = SeriesTypeMultiple.FunnelPyramid;

}

SeriesCollection getRandomData()
{
Random myR = new Random(1);
SeriesCollection SC = new SeriesCollection();
int a = 0;
int b = 0;
for (a = 1; a < 5; a++)
{
Series s = new Series("Series " + a.ToString());
for (b = 1; b < 5; b++)
{
Element e = new Element("Element " + b.ToString());
e.YValue = myR.Next(50);
s.Elements.Add(e);
}
SC.Add(s);
}
return SC;
}

SeriesCollection getLiveData()
{
DataEngine de = new DataEngine("ConnectionString goes here");
de.SqlStatement = "SELECT XAxisColumn, YAxisColumn FROM ....";
return de.GetSeries();
}
