Multi Chartpro

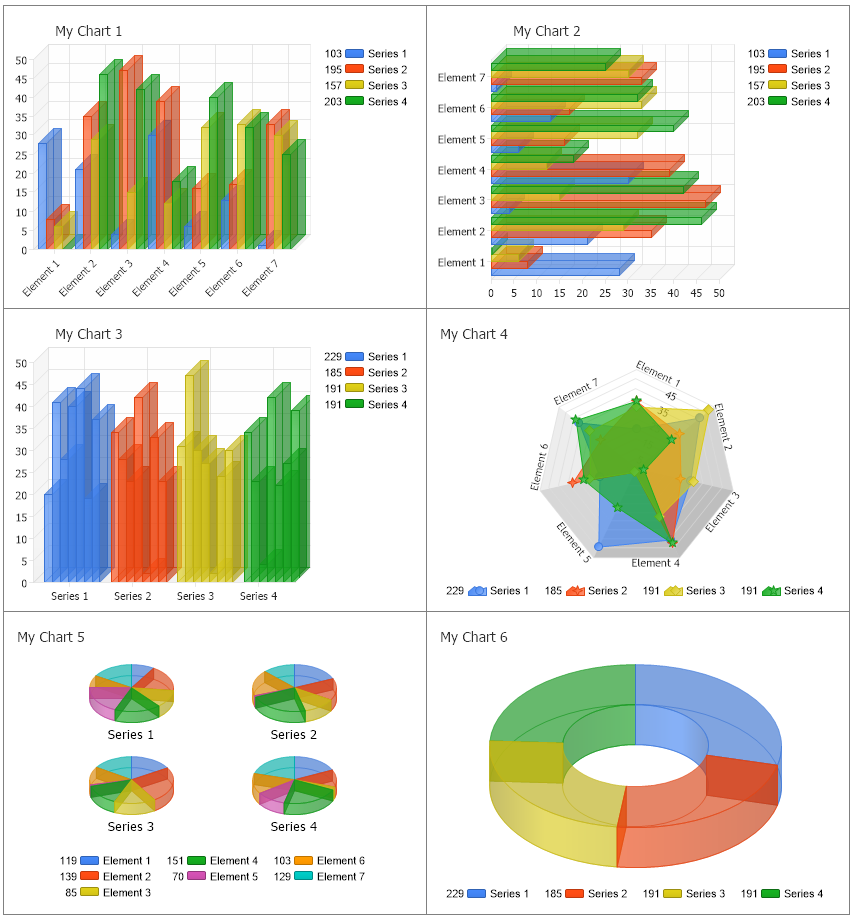

Demonstrates displaying and arranging multiple charts in a single page programmatically.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>

<script runat="server">
void Page_Load(Object sender,EventArgs e)
{
Table tb = new Table();
tb.GridLines=GridLines.Both;
tb.Style.Add("border-collapse","collapse");
Controls.Add(tb);
TableRow tr = new TableRow();
TableCell tc = new TableCell();
tb.Controls.Add(tr);
tr.Controls.Add(tc);

dotnetCHARTING.Chart Chart1 = new dotnetCHARTING.Chart();
tc.Controls.Add(Chart1);

//Set Chart 1 properties
Chart1.Title="My Chart 1";
Chart1.Type = ChartType.Combo;
Chart1.DefaultSeries.DefaultElement.Transparency = 35;
Chart1.TempDirectory="temp";
Chart1.Use3D=true;
Chart1.Debug=true;
Chart1.Width = 420;
Chart1.Height = 300;
// Add the random data.
Chart1.SeriesCollection.Add(getRandomData());

tc = new TableCell();
tr.Controls.Add(tc);
dotnetCHARTING.Chart Chart2 = new dotnetCHARTING.Chart();
tc.Controls.Add(Chart2);

//Set Chart 2 properties
Chart2.Title="My Chart 2";
Chart2.Type = ChartType.ComboHorizontal;
Chart2.DefaultSeries.DefaultElement.Transparency = 35;
Chart2.TempDirectory="temp";
Chart2.Use3D=true;
Chart2.Debug=true;
Chart2.Width = 420;
Chart2.Height = 300;
// Add the random data.
Chart2.SeriesCollection.Add(getRandomData());

tr = new TableRow();
tc = new TableCell();
tb.Controls.Add(tr);
tr.Controls.Add(tc);
dotnetCHARTING.Chart Chart3 = new dotnetCHARTING.Chart();
tc.Controls.Add(Chart3);

//Set Chart 3 properties
Chart3.Title="My Chart 3";
Chart3.Type = ChartType.ComboSideBySide;
Chart3.DefaultSeries.DefaultElement.Transparency = 35;
Chart3.TempDirectory="temp";
Chart3.Use3D=true;
Chart3.Debug=true;
Chart3.Width = 420;
Chart3.Height = 300;
// Add the random data.
Chart3.SeriesCollection.Add(getRandomData());

tc = new TableCell();
tr.Controls.Add(tc);
dotnetCHARTING.Chart Chart4 = new dotnetCHARTING.Chart();
tc.Controls.Add(Chart4);

//Set Chart 4 properties
Chart4.Title="My Chart 4";
Chart4.Type = ChartType.Radar;
Chart4.DefaultSeries.DefaultElement.Transparency = 35;
Chart4.RadarLabelMode = RadarLabelMode.Outside;
Chart4.TempDirectory="temp";
Chart4.Use3D=true;
Chart4.Debug=true;
Chart4.Width = 420;
Chart4.Height = 300;
// Add the random data.
Chart4.SeriesCollection.Add(getRandomData());

tr = new TableRow();
tc = new TableCell();
tb.Controls.Add(tr);
tr.Controls.Add(tc);
dotnetCHARTING.Chart Chart5 = new dotnetCHARTING.Chart();
tc.Controls.Add(Chart5);

//Set Chart 5 properties
Chart5.Title="My Chart 5";
Chart5.Type = ChartType.Pies;
Chart5.DefaultSeries.DefaultElement.Transparency = 35;
Chart5.TempDirectory="temp";
Chart5.Use3D=true;
Chart5.Debug=true;
Chart5.Width = 420;
Chart5.Height = 300;
// Add the random data.
Chart5.SeriesCollection.Add(getRandomData());

tc = new TableCell();
tr.Controls.Add(tc);
dotnetCHARTING.Chart Chart6 = new dotnetCHARTING.Chart();
tc.Controls.Add(Chart6);

//Set Chart 6 properties
Chart6.Title="My Chart 6";
Chart6.Type = ChartType.Donut;
Chart6.DefaultSeries.DefaultElement.Transparency = 35;
Chart6.TempDirectory="temp";
Chart6.Use3D=true;
Chart6.Debug=true;
Chart6.Width = 420;
Chart6.Height = 300;
// Add the random data.
Chart6.SeriesCollection.Add(getRandomData());
}
SeriesCollection getRandomData()
{
SeriesCollection SC = new SeriesCollection();
Random myR = new Random();
for(int a = 1; a < 5; a++)
{
Series s = new Series();
s.Name = "Series " + a;
for(int b = 1; b < 8; b++)
{
Element e = new Element();
e.Name = "Element " + b;
e.YValue = myR.Next(50);
s.Elements.Add(e);
}
SC.Add(s);
}
return SC;
}

</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Multi Chart Programmatically</title></head>
<body style="margin:auto;width:880px;">
</body>

</html>

<%@ Page Language="vb" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>

<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
Dim tb As Table = New Table()
tb.GridLines=GridLines.Both
tb.Style.Add("border-collapse","collapse")
Controls.Add(tb)
Dim tr As TableRow = New TableRow()
Dim tc As TableCell = New TableCell()
tb.Controls.Add(tr)
tr.Controls.Add(tc)

Dim Chart1 As dotnetCHARTING.Chart = New dotnetCHARTING.Chart()
tc.Controls.Add(Chart1)

'Set Chart 1 properties
Chart1.Title="My Chart 1"
Chart1.Type = ChartType.Combo
Chart1.DefaultSeries.DefaultElement.Transparency = 35
Chart1.TempDirectory="temp"
Chart1.Use3D=True
Chart1.Debug=True
Chart1.Width = 420
Chart1.Height = 300
' Add the random data.
Chart1.SeriesCollection.Add(getRandomData())

tc = New TableCell()
tr.Controls.Add(tc)
Dim Chart2 As dotnetCHARTING.Chart = New dotnetCHARTING.Chart()
tc.Controls.Add(Chart2)

'Set Chart 2 properties
Chart2.Title="My Chart 2"
Chart2.Type = ChartType.ComboHorizontal
Chart2.DefaultSeries.DefaultElement.Transparency = 35
Chart2.TempDirectory="temp"
Chart2.Use3D=True
Chart2.Debug=True
Chart2.Width = 420
Chart2.Height = 300
' Add the random data.
Chart2.SeriesCollection.Add(getRandomData())

tr = New TableRow()
tc = New TableCell()
tb.Controls.Add(tr)
tr.Controls.Add(tc)
Dim Chart3 As dotnetCHARTING.Chart = New dotnetCHARTING.Chart()
tc.Controls.Add(Chart3)

'Set Chart 3 properties
Chart3.Title="My Chart 3"
Chart3.Type = ChartType.ComboSideBySide
Chart3.DefaultSeries.DefaultElement.Transparency = 35
Chart3.TempDirectory="temp"
Chart3.Use3D=True
Chart3.Debug=True
Chart3.Width = 420
Chart3.Height = 300
' Add the random data.
Chart3.SeriesCollection.Add(getRandomData())

tc = New TableCell()
tr.Controls.Add(tc)
Dim Chart4 As dotnetCHARTING.Chart = New dotnetCHARTING.Chart()
tc.Controls.Add(Chart4)

'Set Chart 4 properties
Chart4.Title="My Chart 4"
Chart4.Type = ChartType.Radar
Chart4.DefaultSeries.DefaultElement.Transparency = 35
Chart4.RadarLabelMode = RadarLabelMode.Outside
Chart4.TempDirectory="temp"
Chart4.Use3D=True
Chart4.Debug=True
Chart4.Width = 420
Chart4.Height = 300
' Add the random data.
Chart4.SeriesCollection.Add(getRandomData())

tr = New TableRow()
tc = New TableCell()
tb.Controls.Add(tr)
tr.Controls.Add(tc)
Dim Chart5 As dotnetCHARTING.Chart = New dotnetCHARTING.Chart()
tc.Controls.Add(Chart5)

'Set Chart 5 properties
Chart5.Title="My Chart 5"
Chart5.Type = ChartType.Pies
Chart5.DefaultSeries.DefaultElement.Transparency = 35
Chart5.TempDirectory="temp"
Chart5.Use3D=True
Chart5.Debug=True
Chart5.Width = 420
Chart5.Height = 300
' Add the random data.
Chart5.SeriesCollection.Add(getRandomData())

tc = New TableCell()
tr.Controls.Add(tc)
Dim Chart6 As dotnetCHARTING.Chart = New dotnetCHARTING.Chart()
tc.Controls.Add(Chart6)

'Set Chart 6 properties
Chart6.Title="My Chart 6"
Chart6.Type = ChartType.Donut
Chart6.DefaultSeries.DefaultElement.Transparency = 35
Chart6.TempDirectory="temp"
Chart6.Use3D=True
Chart6.Debug=True
Chart6.Width = 420
Chart6.Height = 300
' Add the random data.
Chart6.SeriesCollection.Add(getRandomData())
End Sub
Function getRandomData() As SeriesCollection
Dim SC As SeriesCollection = New SeriesCollection()
Dim myR As Random = New Random()
For a As Integer = 1 To 4
Dim s As Series = New Series()
s.Name = "Series " & a
For b As Integer = 1 To 7
Dim e As Element = New Element()
e.Name = "Element " & b
e.YValue = myR.Next(50)
s.Elements.Add(e)
Next b
SC.Add(s)
Next a
Return SC
End Function

</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Multi Chart Programmatically</title></head>
<body style="margin:auto;width:880px;">
</body>

</html>

Sample FilenamemultiChartpro.aspx
VersionLegacy (Pre 3.0)
Uses DatabaseNo
