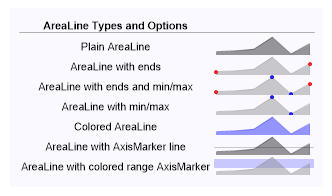

AreaLine Options
Demonstrates several features of the area line microChart.
<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
void Page_Load(Object sender, EventArgs e)
{
// Demonstrates several features of the area line microChart.
Chart.TempDirectory = "temp";
Chart.Background.Color = Color.FromArgb(249,249,255);
Chart.Size = "320x180";
string s = "<block fStyle='Bold'>AreaLine Types and Options<block><hr>";
// A plain area line.
s += "Plain AreaLine <Chart:AreaLine values='5,6,8,23,2,15' >";
// Providing two colors specifies the color of the area line and end point colors.
s += "<row>AreaLine with ends <Chart:AreaLine values='5,6,8,23,2,15' colors='Gray,Red'>";
// Providing three colors specifies the color of the area line, end points, and high/low value colors.
s += "<row>AreaLine with ends and min/max <Chart:AreaLine values='5,6,8,23,2,15' colors='Gray,Red,Blue'>";
// By specifying a transparent color for end points they can be omitted.
s += "<row>AreaLine with min/max <Chart:AreaLine values='5,6,8,23,2,15' colors='Gray,Transparent,Blue'>";
// Specifying only the area line color.
s += "<row>Colored AreaLine <Chart:AreaLine values='5,6,8,23,2,15' color='Blue'>";
// A reference line can be used by specifying a value in the AxisMarker parameter.
s += "<row>AreaLine with AxisMarker line <Chart:AreaLine values='5,6,8,23,2,15' AxisMarker='10'>";
// A portion of the y axis can be marked by using two values in the AxisMarker parameter and it uses the fourth color in the Colors parameter.
s += "<row>AreaLine with colored range AxisMarker <Chart:AreaLine values='5,6,8,23,2,15' AxisMarker='10,20' colors='Gray,Transparent,Transparent,Blue'>";
Chart.ObjectChart = new dotnetCHARTING.Label(s);
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates several features of the area line microChart.
Chart.TempDirectory = "temp"
Chart.Background.Color = Color.FromArgb(249,249,255)
Chart.Size = "320x180"
Dim s As String = "<block fStyle='Bold'>AreaLine Types and Options<block><hr>"
' A plain area line.
s &= "Plain AreaLine <Chart:AreaLine values='5,6,8,23,2,15' >"
' Providing two colors specifies the color of the area line and end point colors.
s &= "<row>AreaLine with ends <Chart:AreaLine values='5,6,8,23,2,15' colors='Gray,Red'>"
' Providing three colors specifies the color of the area line, end points, and high/low value colors.
s &= "<row>AreaLine with ends and min/max <Chart:AreaLine values='5,6,8,23,2,15' colors='Gray,Red,Blue'>"
' By specifying a transparent color for end points they can be omitted.
s &= "<row>AreaLine with min/max <Chart:AreaLine values='5,6,8,23,2,15' colors='Gray,Transparent,Blue'>"
' Specifying only the area line color.
s &= "<row>Colored AreaLine <Chart:AreaLine values='5,6,8,23,2,15' color='Blue'>"
' A reference line can be used by specifying a value in the AxisMarker parameter.
s &= "<row>AreaLine with AxisMarker line <Chart:AreaLine values='5,6,8,23,2,15' AxisMarker='10'>"
' A portion of the y axis can be marked by using two values in the AxisMarker parameter and it uses the fourth color in the Colors parameter.
s &= "<row>AreaLine with colored range AxisMarker <Chart:AreaLine values='5,6,8,23,2,15' AxisMarker='10,20' colors='Gray,Transparent,Transparent,Blue'>"
Chart.ObjectChart = New dotnetCHARTING.Label(s)
End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>
