Limit Primary Series

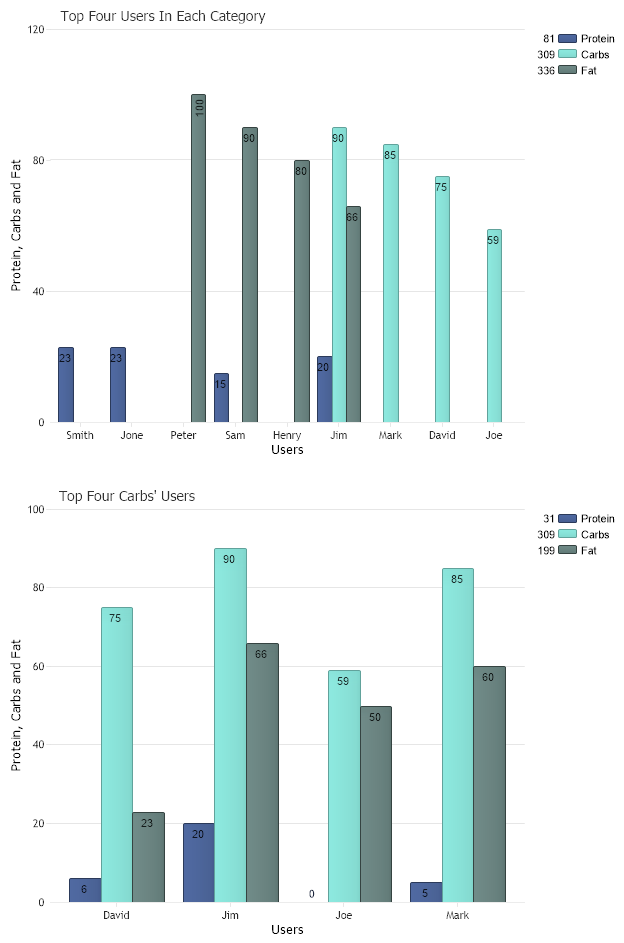

Demonstrates limiting the number of elements in the multiple series relative to a primary series.
<%@ Page Language="C#" Trace="false" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
void Page_Load(Object sender,EventArgs e)
{
//set global properties
Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings["DNCConnectionString"];
Chart.Title="Top Four Users In Each Category";
Chart.XAxis.Label.Text="Users";
Chart.YAxis.Label.Text="Protein, Carbs and Fat";
Chart.TempDirectory="temp";
Chart.Debug=true;
Chart.DefaultSeries.DefaultElement.ToolTip="%yvalue";
Chart.PaletteName = Palette.Two;
Chart.DefaultSeries.Limit="4";
Chart.DefaultSeries.DefaultElement.ShowValue=true;
Chart.Series.SqlStatement= @"SELECT Name,Calories,Protein,Carbs,Fat FROM Eaten ORDER BY Name";
Chart.Series.DataFields ="xAxis=Name,yAxis=Protein,yAxis=Carbs,yAxis=Fat";
Chart.SeriesCollection.Add();
//set global properties
Chart2.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings["DNCConnectionString"];
Chart2.Title="Top Four Carbs' Users";
Chart2.XAxis.Label.Text="Users";
Chart2.YAxis.Label.Text="Protein, Carbs and Fat";
Chart2.TempDirectory="temp";
Chart2.Debug=true;
Chart2.DefaultSeries.DefaultElement.ToolTip="%yvalue";
Chart2.PaletteName = Palette.Two;
Chart2.DefaultSeries.Limit="4";
Chart2.LimitPrimarySeries="Carbs";
Chart2.DefaultSeries.DefaultElement.ShowValue=true;
Chart2.Series.SqlStatement= @"SELECT Name,Calories,Protein,Carbs,Fat FROM Eaten ORDER BY Name";
Chart2.Series.DataFields ="xAxis=Name,yAxis=Protein,yAxis=Carbs,yAxis=Fat";
Chart2.SeriesCollection.Add();
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>Limit Primary Series Sample</title>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
<dotnet:Chart id="Chart2" runat="server"/>
</div>
</body>
</html>
<%@ Page Language="vb" Trace="false" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
'set global properties
Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings("DNCConnectionString")
Chart.Title="Top Four Users In Each Category"
Chart.XAxis.Label.Text="Users"
Chart.YAxis.Label.Text="Protein, Carbs and Fat"
Chart.TempDirectory="temp"
Chart.Debug=True
Chart.DefaultSeries.DefaultElement.ToolTip="%yvalue"
Chart.PaletteName = Palette.Two
Chart.DefaultSeries.Limit="4"
Chart.DefaultSeries.DefaultElement.ShowValue=True
Chart.Series.SqlStatement= "SELECT Name,Calories,Protein,Carbs,Fat FROM Eaten ORDER BY Name"
Chart.Series.DataFields ="xAxis=Name,yAxis=Protein,yAxis=Carbs,yAxis=Fat"
Chart.SeriesCollection.Add()
'set global properties
Chart2.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings("DNCConnectionString")
Chart2.Title="Top Four Carbs' Users"
Chart2.XAxis.Label.Text="Users"
Chart2.YAxis.Label.Text="Protein, Carbs and Fat"
Chart2.TempDirectory="temp"
Chart2.Debug=True
Chart2.DefaultSeries.DefaultElement.ToolTip="%yvalue"
Chart2.PaletteName = Palette.Two
Chart2.DefaultSeries.Limit="4"
Chart2.LimitPrimarySeries="Carbs"
Chart2.DefaultSeries.DefaultElement.ShowValue=True
Chart2.Series.SqlStatement= "SELECT Name,Calories,Protein,Carbs,Fat FROM Eaten ORDER BY Name"
Chart2.Series.DataFields ="xAxis=Name,yAxis=Protein,yAxis=Carbs,yAxis=Fat"
Chart2.SeriesCollection.Add()
End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>Limit Primary Series Sample</title>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
<dotnet:Chart id="Chart2" runat="server"/>
</div>
</body>
</html>
