Items 5

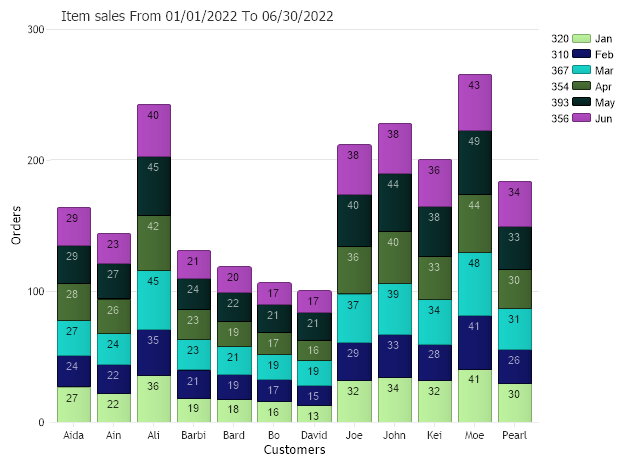

Item sales for Jan-Jun of 2002, as stacked graph. You can pass query string 'palette=2' (0-4) to set the palette, otherwise refresh the browser to set RandomPalette to true and see a new random palette each time.
<%@ Page Language="C#" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
void Page_Load(Object sender,EventArgs e)
{
//set global properties
Chart.Title="Item sales";
Chart.ChartArea.XAxis.Label.Text="Customers";
Chart.ChartArea.YAxis.Label.Text="Orders";
Chart.Type = ChartType.Combo;
Chart.ChartArea.YAxis.Scale = Scale.Stacked;
Chart.Use3D=false;
Chart.TempDirectory="temp";
Chart.Debug=true;
string palette = Request.Params["palette"];
if(palette == null)
Chart.PaletteName=Palette.Random;
else
Chart.PaletteName= (dotnetCHARTING.Palette)Enum.Parse(typeof(dotnetCHARTING.Palette), palette,true);
Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings["DNCConnectionString"];
Chart.DefaultSeries.DefaultElement.ShowValue=true;
//Add Jan series
Chart.Series.Name="Jan";
Chart.Series.StartDate=new System.DateTime(2022,1,1,0,0,0);
Chart.Series.EndDate = new System.DateTime(2022,1,31,23,59,59);
Chart.Series.SqlStatement= @"SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name";
Chart.SeriesCollection.Add();
//Add Feb series
Chart.Series.Name="Feb";
Chart.Series.StartDate=new System.DateTime(2022,2,1,0,0,0);
Chart.Series.EndDate = new System.DateTime(2022,2,28,23,59,59);
Chart.Series.SqlStatement= @"SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name";
Chart.SeriesCollection.Add();
//Add Mar series
Chart.Series.Name="Mar";
Chart.Series.StartDate=new System.DateTime(2022,3,1,0,0,0);
Chart.Series.EndDate = new System.DateTime(2022,3,31,23,59,59);
Chart.Series.SqlStatement= @"SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name";
Chart.SeriesCollection.Add();
//Add Apr series
Chart.Series.Name="Apr";
Chart.Series.StartDate=new System.DateTime(2022,4,1,0,0,0);
Chart.Series.EndDate = new System.DateTime(2022,4,30,23,59,59);
Chart.Series.SqlStatement= @"SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name";
Chart.SeriesCollection.Add();
//Add May series
Chart.Series.Name="May";
Chart.Series.StartDate=new System.DateTime(2022,5,1,0,0,0);
Chart.Series.EndDate = new System.DateTime(2022,5,31,23,59,59);
Chart.Series.SqlStatement= @"SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name";
Chart.SeriesCollection.Add();
//Add June series
Chart.Series.Name="Jun";
Chart.Series.StartDate=new System.DateTime(2022,6,1,0,0,0);
Chart.Series.EndDate = new System.DateTime(2022,6,30,23,59,59);
Chart.Series.SqlStatement= @"SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name";
Chart.SeriesCollection.Add();
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Orders Report</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
'set global properties
Chart.Title="Item sales"
Chart.ChartArea.XAxis.Label.Text="Customers"
Chart.ChartArea.YAxis.Label.Text="Orders"
Chart.Type = ChartType.Combo
Chart.ChartArea.YAxis.Scale = Scale.Stacked
Chart.Use3D=False
Chart.TempDirectory="temp"
Chart.Debug=True
Dim palette As String = Request.Params("palette")
If palette Is Nothing Then
Chart.PaletteName = dotnetCHARTING.Palette.Random
Else
Chart.PaletteName= CType(System.Enum.Parse(GetType(dotnetCHARTING.Palette), palette,True), dotnetCHARTING.Palette)
End If
Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings("DNCConnectionString")
Chart.DefaultSeries.DefaultElement.ShowValue=True
'Add Jan series
Chart.Series.Name="Jan"
Chart.Series.StartDate = New System.DateTime(2022,1,1,0,0,0)
Chart.Series.EndDate = New System.DateTime(2022,1,31,23,59,59)
Chart.Series.SqlStatement= "SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name"
Chart.SeriesCollection.Add()
'Add Feb series
Chart.Series.Name="Feb"
Chart.Series.StartDate = New System.DateTime(2022,2,1,0,0,0)
Chart.Series.EndDate = New System.DateTime(2022,2,28,23,59,59)
Chart.Series.SqlStatement= "SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name"
Chart.SeriesCollection.Add()
'Add Mar series
Chart.Series.Name="Mar"
Chart.Series.StartDate = New System.DateTime(2022,3,1,0,0,0)
Chart.Series.EndDate = New System.DateTime(2022,3,31,23,59,59)
Chart.Series.SqlStatement= "SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name"
Chart.SeriesCollection.Add()
'Add Apr series
Chart.Series.Name="Apr"
Chart.Series.StartDate = New System.DateTime(2022,4,1,0,0,0)
Chart.Series.EndDate = New System.DateTime(2022,4,30,23,59,59)
Chart.Series.SqlStatement= "SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name"
Chart.SeriesCollection.Add()
'Add May series
Chart.Series.Name="May"
Chart.Series.StartDate = New System.DateTime(2022,5,1,0,0,0)
Chart.Series.EndDate = New System.DateTime(2022,5,31,23,59,59)
Chart.Series.SqlStatement= "SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name"
Chart.SeriesCollection.Add()
'Add June series
Chart.Series.Name="Jun"
Chart.Series.StartDate = New System.DateTime(2022,6,1,0,0,0)
Chart.Series.EndDate = New System.DateTime(2022,6,30,23,59,59)
Chart.Series.SqlStatement= "SELECT Name,Sum(1) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Name"
Chart.SeriesCollection.Add()
End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Orders Report</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
