Gantt Date Timedb

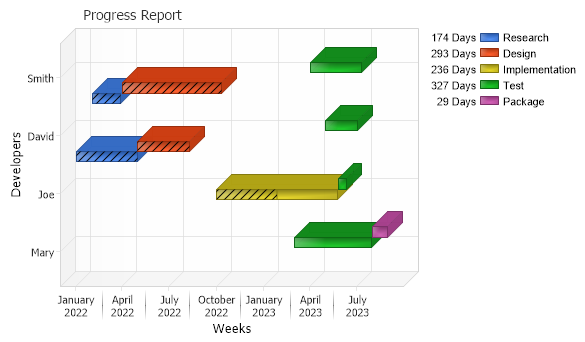

Demonstrates creating a Gantt chart dynamically from a database using a data/time axis.
<%@ Page Language="C#" trace="false" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
void Page_Load(Object sender,EventArgs e)
{
//set global properties
Chart.Title="Progress Report";
Chart.YAxis.Label.Text="Developers";
//Chart.FormatString = "N,0";
Chart.XAxis.Label.Text="Weeks";
Chart.TempDirectory="temp";
Chart.Debug=true;
Chart.Type=ChartType.Gantt;
Chart.Use3D=true;
Chart.ShadingEffect=true;
Chart.OverlapFooter=true;
Chart.XAxis.Scale = Scale.Time;
Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings["DNCConnectionString"];
Chart.DefaultSeries.DataFields="ganttstartdate=startDate,ganttenddate=endDate,ganttname=name,ganttcomplete=completePercentage";
Chart.Size = "600x350";
Chart.ChartArea.Line.Color = Color.LightGray;
//Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend;
//Add a series
Chart.Series.Name="Research";
Chart.Series.SqlStatement= @"SELECT [startDate],[endDate],[name],[completePercentage] FROM ganttSample Where job='Research'";
Chart.SeriesCollection.Add();
//Add a series
Chart.Series.Name="Design";
Chart.Series.SqlStatement= @"SELECT [startDate],[endDate],[name],[completePercentage] FROM ganttSample Where job='Design'";
Chart.SeriesCollection.Add();
//Add a series
Chart.Series.Name="Implementation";
Chart.Series.SqlStatement= @"SELECT [startDate],[endDate],[name],[completePercentage] FROM ganttSample Where job='Implementation'";
Chart.SeriesCollection.Add();
//Add a series
Chart.Series.Name="Test";
Chart.Series.SqlStatement= @"SELECT [startDate],[endDate],[name],[completePercentage] FROM ganttSample Where job='Test'";
Chart.SeriesCollection.Add();
//Add a series
Chart.Series.Name="Package";
Chart.Series.SqlStatement= @"SELECT [startDate],[endDate],[name],[completePercentage] FROM ganttSample Where job='Package'";
Chart.SeriesCollection.Add();
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>Orders Report</title>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
<%@ Page Language="vb" trace="false" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
'set global properties
Chart.Title="Progress Report"
Chart.YAxis.Label.Text="Developers"
'Chart.FormatString = "N,0";
Chart.XAxis.Label.Text="Weeks"
Chart.TempDirectory="temp"
Chart.Debug=True
Chart.Type=ChartType.Gantt
Chart.Use3D=True
Chart.ShadingEffect=True
Chart.OverlapFooter=True
Chart.XAxis.Scale = Scale.Time
Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings("DNCConnectionString")
Chart.DefaultSeries.DataFields="ganttstartdate=startDate,ganttenddate=endDate,ganttname=name,ganttcomplete=completePercentage"
Chart.Size = "600x350"
Chart.ChartArea.Line.Color = Color.LightGray
'Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend;
'Add a series
Chart.Series.Name="Research"
Chart.Series.SqlStatement= "SELECT [startDate],[endDate],[name],[completePercentage] FROM ganttSample Where job='Research'"
Chart.SeriesCollection.Add()
'Add a series
Chart.Series.Name="Design"
Chart.Series.SqlStatement= "SELECT [startDate],[endDate],[name],[completePercentage] FROM ganttSample Where job='Design'"
Chart.SeriesCollection.Add()
'Add a series
Chart.Series.Name="Implementation"
Chart.Series.SqlStatement= "SELECT [startDate],[endDate],[name],[completePercentage] FROM ganttSample Where job='Implementation'"
Chart.SeriesCollection.Add()
'Add a series
Chart.Series.Name="Test"
Chart.Series.SqlStatement= "SELECT [startDate],[endDate],[name],[completePercentage] FROM ganttSample Where job='Test'"
Chart.SeriesCollection.Add()
'Add a series
Chart.Series.Name="Package"
Chart.Series.SqlStatement= "SELECT [startDate],[endDate],[name],[completePercentage] FROM ganttSample Where job='Package'"
Chart.SeriesCollection.Add()
End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>Orders Report</title>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
