PreviousAnnotation Orientation
<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
<script runat="server">
void Page_Load(Object sender,EventArgs e)
{

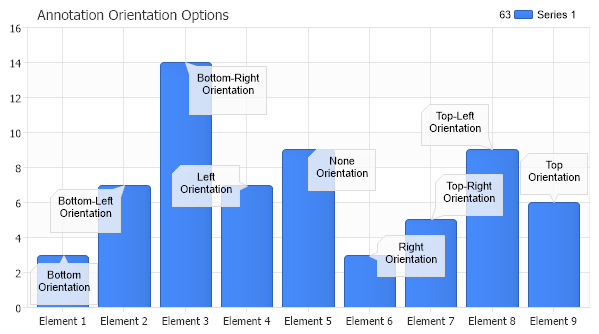

Chart.Title = "Annotation Orientation Options";
Chart.Width = 600;
Chart.Height = 350;
Chart.TempDirectory = "temp";
Chart.Debug = true;
Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend;
Chart.ChartArea.Background.Color = Color.Empty;
Chart.YAxis.AlternateGridBackground.Color = Color.FromArgb(252, 252, 252);
Chart.YAxis.AlternateGridBackground.ShadingEffectMode = ShadingEffectMode.None;
// Demonstrates how to align text inside annotations.
// First we get our data, if you would like to get the data from a database you need to use
// the data engine. See sample: features/dataEngine.aspx. Or the dataEngine tutorial in the help file.
SeriesCollection mySC = getData();
// Create an annotation.
Annotation a1 = new Annotation("Bottom Orientation");
// Set the dotnetCHARTING.Orientation.
a1.Orientation = dotnetCHARTING.Orientation.Bottom;
mySC[0].Elements[0].Annotation = a1;
// Create an annotation.
Annotation a2 = new Annotation("Bottom-Left Orientation");
// Set the dotnetCHARTING.Orientation.
a2.Orientation = dotnetCHARTING.Orientation.BottomLeft;
mySC[0].Elements[1].Annotation = a2;
// Create an annotation.
Annotation a3 = new Annotation("Bottom-Right Orientation");
// Set the dotnetCHARTING.Orientation.
a3.Orientation = dotnetCHARTING.Orientation.BottomRight;
mySC[0].Elements[2].Annotation = a3;
// Create an annotation.
Annotation a4 = new Annotation("Left Orientation");
// Set the dotnetCHARTING.Orientation.
a4.Orientation = dotnetCHARTING.Orientation.Left;
mySC[0].Elements[3].Annotation = a4;
// Create an annotation.
Annotation a5 = new Annotation("None Orientation");
// Set the dotnetCHARTING.Orientation.
a5.Orientation = dotnetCHARTING.Orientation.None;
mySC[0].Elements[4].Annotation = a5;
// Create an annotation.
Annotation a6 = new Annotation("Right Orientation");
// Set the dotnetCHARTING.Orientation.
a6.Orientation = dotnetCHARTING.Orientation.Right;
mySC[0].Elements[5].Annotation = a6;
// Create an annotation.
Annotation a7= new Annotation("Top-Right Orientation");
// Set the dotnetCHARTING.Orientation.
a7.Orientation = dotnetCHARTING.Orientation.TopRight;
mySC[0].Elements[6].Annotation = a7;
// Create an annotation.
Annotation a8 = new Annotation("Top-Left Orientation");
// Set the dotnetCHARTING.Orientation.
a8.Orientation = dotnetCHARTING.Orientation.TopLeft;
mySC[0].Elements[7].Annotation = a8;
// Create an annotation.
Annotation a9 = new Annotation("Top Orientation");
// Set the dotnetCHARTING.Orientation.
a9.Orientation = dotnetCHARTING.Orientation.Top;
mySC[0].Elements[8].Annotation = a9;
// Add the random data.
Chart.SeriesCollection.Add(mySC);
}
SeriesCollection getData()
{
SeriesCollection SC = new SeriesCollection();
Random myR = new Random();
for(int a = 1; a < 2; a++)
{
Series s = new Series();
s.Name = "Series " + a;
//for(int b = 1; b < 8; b++)
//{
Element e = new Element();
e.Name = "Element 1";
e.YValue = 3;
s.Elements.Add(e);
e = new Element();
e.Name = "Element 2";
e.YValue = 7;
s.Elements.Add(e);
e = new Element();
e.Name = "Element 3";
e.YValue = 14;
s.Elements.Add(e);
e = new Element();
e.Name = "Element 4";
e.YValue = 7;
s.Elements.Add(e);
e = new Element();
e.Name = "Element 5";
e.YValue = 9;
s.Elements.Add(e);
e = new Element();
e.Name = "Element 6";
e.YValue = 3;
s.Elements.Add(e);
e = new Element();
e.Name = "Element 7";
e.YValue = 5;
s.Elements.Add(e);
e = new Element();
e.Name = "Element 8";
e.YValue = 9;
s.Elements.Add(e);
e = new Element();
e.Name = "Element 9";
e.YValue = 6;
s.Elements.Add(e);
SC.Add(s);
}
return SC;
}
</script>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server" Width="568px" Height="344px">
</dotnet:Chart>
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
Chart.Title = "Annotation Orientation Options"
Chart.Width = 600
Chart.Height = 350
Chart.TempDirectory = "temp"
Chart.Debug = True
Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend
Chart.ChartArea.Background.Color = Color.Empty
Chart.YAxis.AlternateGridBackground.Color = Color.FromArgb(252, 252, 252)
Chart.YAxis.AlternateGridBackground.ShadingEffectMode = ShadingEffectMode.None
' Demonstrates how to align text inside annotations.
' First we get our data, if you would like to get the data from a database you need to use
' the data engine. See sample: features/dataEngine.aspx. Or the dataEngine tutorial in the help file.
Dim mySC As SeriesCollection = getData()
' Create an annotation.
Dim a1 As Annotation = New Annotation("Bottom Orientation")
' Set the dotnetCHARTING.Orientation.
a1.Orientation = dotnetCHARTING.Orientation.Bottom
mySC(0).Elements(0).Annotation = a1
' Create an annotation.
Dim a2 As Annotation = New Annotation("Bottom-Left Orientation")
' Set the dotnetCHARTING.Orientation.
a2.Orientation = dotnetCHARTING.Orientation.BottomLeft
mySC(0).Elements(1).Annotation = a2
' Create an annotation.
Dim a3 As Annotation = New Annotation("Bottom-Right Orientation")
' Set the dotnetCHARTING.Orientation.
a3.Orientation = dotnetCHARTING.Orientation.BottomRight
mySC(0).Elements(2).Annotation = a3
' Create an annotation.
Dim a4 As Annotation = New Annotation("Left Orientation")
' Set the dotnetCHARTING.Orientation.
a4.Orientation = dotnetCHARTING.Orientation.Left
mySC(0).Elements(3).Annotation = a4
' Create an annotation.
Dim a5 As Annotation = New Annotation("None Orientation")
' Set the dotnetCHARTING.Orientation.
a5.Orientation = dotnetCHARTING.Orientation.None
mySC(0).Elements(4).Annotation = a5
' Create an annotation.
Dim a6 As Annotation = New Annotation("Right Orientation")
' Set the dotnetCHARTING.Orientation.
a6.Orientation = dotnetCHARTING.Orientation.Right
mySC(0).Elements(5).Annotation = a6
' Create an annotation.
Dim a7 As Annotation= New Annotation("Top-Right Orientation")
' Set the dotnetCHARTING.Orientation.
a7.Orientation = dotnetCHARTING.Orientation.TopRight
mySC(0).Elements(6).Annotation = a7
' Create an annotation.
Dim a8 As Annotation = New Annotation("Top-Left Orientation")
' Set the dotnetCHARTING.Orientation.
a8.Orientation = dotnetCHARTING.Orientation.TopLeft
mySC(0).Elements(7).Annotation = a8
' Create an annotation.
Dim a9 As Annotation = New Annotation("Top Orientation")
' Set the dotnetCHARTING.Orientation.
a9.Orientation = dotnetCHARTING.Orientation.Top
mySC(0).Elements(8).Annotation = a9
' Add the random data.
Chart.SeriesCollection.Add(mySC)
End Sub
Function getData() As SeriesCollection
Dim SC As SeriesCollection = New SeriesCollection()
Dim myR As Random = New Random()
For a As Integer = 1 To 1
Dim s As Series = New Series()
s.Name = "Series " & a
'for(int b = 1; b < 8; b++)
'{
Dim e As Element = New Element()
e.Name = "Element 1"
e.YValue = 3
s.Elements.Add(e)
e = New Element()
e.Name = "Element 2"
e.YValue = 7
s.Elements.Add(e)
e = New Element()
e.Name = "Element 3"
e.YValue = 14
s.Elements.Add(e)
e = New Element()
e.Name = "Element 4"
e.YValue = 7
s.Elements.Add(e)
e = New Element()
e.Name = "Element 5"
e.YValue = 9
s.Elements.Add(e)
e = New Element()
e.Name = "Element 6"
e.YValue = 3
s.Elements.Add(e)
e = New Element()
e.Name = "Element 7"
e.YValue = 5
s.Elements.Add(e)
e = New Element()
e.Name = "Element 8"
e.YValue = 9
s.Elements.Add(e)
e = New Element()
e.Name = "Element 9"
e.YValue = 6
s.Elements.Add(e)
SC.Add(s)
Next a
Return SC
End Function
</script>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server" Width="568px" Height="344px">
</dotnet:Chart>
</div>
</body>
</html>
- Sample FilenameannotationOrientation.aspx
- VersionLegacy (Pre 3.0)
- Uses DatabaseNo
