Surface Solid YLines DTFloor 3D 2

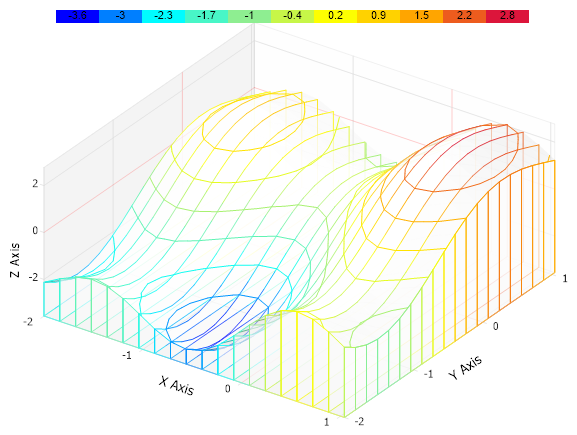

Demonstrates a 3D surfaceY chart with solid fill DrawToFloor.
<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dnc" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING.Mapping" %>
<script runat="server">
void Page_Load(Object sender, EventArgs e)
{
// Demonstrates a 3D surfaceY chart with DrawToFloor.
Chart.Size = "650x450";
Chart.TempDirectory = "temp";
Chart.Debug = true;
Chart.Use3D = true;
Chart.Type = ChartType.Surface;
Chart.LegendBox.Visible = false;
Chart.View3D.AngleOfRotation = 35;
Chart.View3D.AngleOfTilt = 50;
Chart.MarginTop = 25;
Chart.XAxis.Label.Text = "X Axis";
Chart.YAxis.Label.Text = "Y Axis";
Chart.ZAxis.Label.Text = "Z Axis";
Chart.DefaultSeries.Type = SeriesTypeSurface.SurfaceY;
Chart.DefaultElement.DrawToFloor = true;
Chart.DefaultElement.Transparency = 0;
Chart.DefaultSeries.Background.Color = Color.White;
Chart.DefaultSeries.Background.Transparency = 40;
Chart.DefaultSeries.Line.Width = 1;
SeriesCollection mySC = getRData();
Chart.SmartPalette = mySC[0].GetSmartPalette(ElementValue.ZValue, Color.Blue, Color.Aqua, Color.LightGreen, Color.Yellow, Color.Orange, Color.Crimson);
Annotation an = new Annotation(getSwatch(400, Chart.SmartPalette, 10, true));
an.ClearColors();
Chart.Annotations.Add(an);
an.Position = new Point(75, 10);
an.DynamicSize = false;
// Add the random data.
Chart.SeriesCollection.Add(mySC);
Series s2 = new Series();
s2.Type = SeriesTypeSurface.Contour;
s2.Background.Transparency = 80;
s2.Line.Width = 1;
Chart.SeriesCollection.Add(s2);
}
SeriesCollection getRData()
{
int size = 20;
double[][] zVals = new double[size][];
double[] xVals = new double[size];
double[] yVals = new double[size];
// Series s = new Series();
for (int i = 0; i < size; i++)
{
zVals[i] = new double[size];
for (int j = 0; j < size; j++)
{
double x = (double)(-2 + i * .16);
double y = (double)(-2 + j * .16);
xVals[i] = x;
yVals[j] = y;
zVals[i][j] = (Math.Sin(x * 3.2) + Math.Cos(y * 2) + Math.Sin(x * 1.2) + Math.Sin(y * 1.2));
}
}
SeriesCollection SC = new SeriesCollection();
Series s = Series.FromSurfaceData("", xVals, yVals, zVals);
SC.Add(s);
return SC;
}
string getSwatch(int width, SmartPalette sp, int divisions, bool withValues)
{
// Get Maximum Value of the smart palette range
double max = (double)sp.GetScaleRange("*").ValueHigh;
double min = (double)sp.GetScaleRange("*").ValueLow;
string swatch = "", spacers = "";
double step = (max - min) / divisions;
// Width of each division.
int boxWidth = width / divisions;
// Generate swatch string for each division.
for (int i = 0; i <= divisions; i++)
{
spacers += "<Chart:Spacer size='" + boxWidth + "x1'>";
// Get the color of the current division.
string color = getHTMLColor(sp.GetValueColor("", min + (i * (step))));
if (withValues)
swatch += "<block hAlignment='Center' bgColor='" + color + "'>" + Math.Round((min + (i * (step))), 1);
else
swatch += "<block bgColor='" + color + "' fColor='" + color + "'>_";
}
//return the swatch string.
return spacers + "<row>" + swatch;
}
string getHTMLColor(Color c)
{
return "#" + c.R.ToString("X2") + c.G.ToString("X2") + c.B.ToString("X2");
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<style type="text/css">
div, p
{
font-family: Arial, Helvetica, sans-serif;
font-size: x-small;
}
</style>
<body>
<div align="center">
<dnc:Chart ID="Chart" runat="server" />
</div>
</body>
</html>
