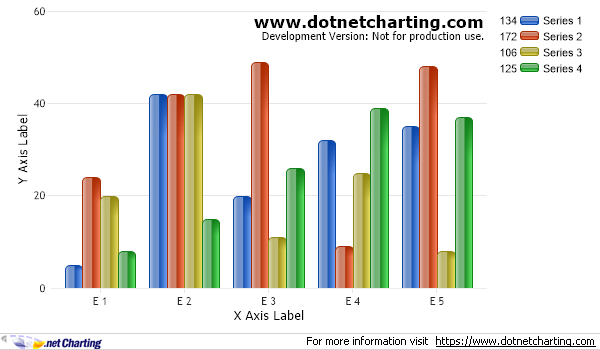

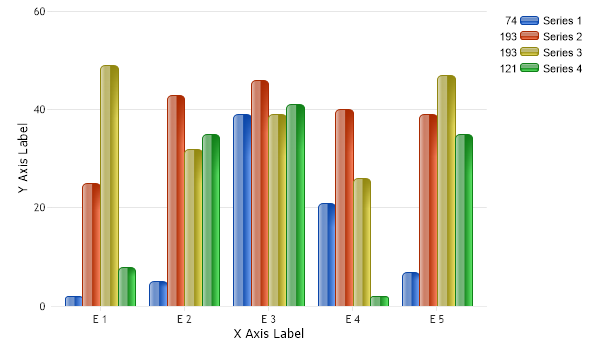

void Page_Load(Object sender,EventArgs e) { // Set the title. //Chart.Title="My Chart";
//Enable streaming Chart.UseFile = false;
// Change the shading mode Chart.ShadingEffectMode = ShadingEffectMode.Two;
// Set the x axis label Chart.ChartArea.XAxis.Label.Text="X Axis Label";
// Set the y axis label Chart.ChartArea.YAxis.Label.Text="Y Axis Label";
// Set he chart size. Chart.Width = 600; Chart.Height = 350;
// Add the random data. Chart.SeriesCollection.Add(getRandomData());
}
SeriesCollection getRandomData() { SeriesCollection SC = new SeriesCollection(); Random myR = new Random(); for(int a = 1; a < 5; a++) { Series s = new Series(); s.Name = "Series " + a.ToString(); for(int b = 1; b < 6; b++) { Element e = new Element(); e.Name = "E " + b.ToString(); e.YValue = myR.Next(50); s.Elements.Add(e); } SC.Add(s); }
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs) ' Set the title. 'Chart.Title="My Chart";
'Enable streaming Chart.UseFile = False
' Change the shading mode Chart.ShadingEffectMode = ShadingEffectMode.Two
' Set the x axis label Chart.ChartArea.XAxis.Label.Text="X Axis Label"
' Set the y axis label Chart.ChartArea.YAxis.Label.Text="Y Axis Label"
' Set he chart size. Chart.Width = 600 Chart.Height = 350
' Add the random data. Chart.SeriesCollection.Add(getRandomData())
End Sub
Function getRandomData() As SeriesCollection Dim SC As SeriesCollection = New SeriesCollection() Dim myR As Random = New Random() For a As Integer = 1 To 4 Dim s As Series = New Series() s.Name = "Series " & a.ToString() For b As Integer = 1 To 5 Dim e As Element = New Element() e.Name = "E " & b.ToString() e.YValue = myR.Next(50) s.Elements.Add(e) Next b SC.Add(s) Next a
