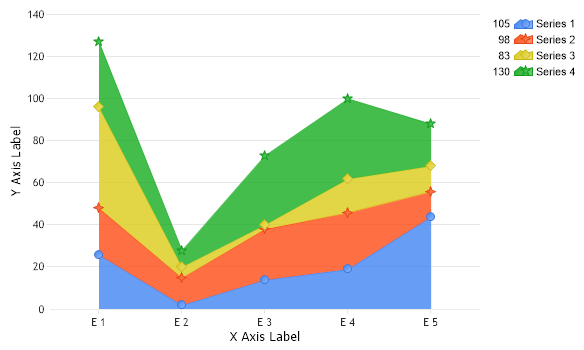

SeriesCollection getRandomData() { SeriesCollection SC = new SeriesCollection(); Random myR = new Random(); for(int a = 1; a < 5; a++) { Series s = new Series(); s.Name = "Series " + a; for(int b = 1; b < 6; b++) { Element e = new Element(); e.Name = "E " + b; e.YValue = myR.Next(50); s.Elements.Add(e); } SC.Add(s); }
return SC; }
void Page_Load(Object sender,EventArgs e) { // Set the title. //Chart.Title="My Chart";
// Set the Depth Chart.Depth = 5;
// Set 3D Chart.Use3D = false;
// set the x axis clustering Chart.XAxis.ClusterColumns = false;
// Set a default transparency Chart.DefaultSeries.DefaultElement.Transparency = 20;
// Set the Default Series Type Chart.DefaultSeries.Type = SeriesType.AreaLine;
// Set the y Axis Scale Chart.YAxis.Scale = Scale.Stacked;
// Set the x axis label Chart.XAxis.Label.Text="X Axis Label";
// Set the y axis label Chart.YAxis.Label.Text="Y Axis Label";
// Set the directory where the images will be stored. Chart.TempDirectory="temp";
// Set he chart size. Chart.Width = 600; Chart.Height = 350;
// Add the random data. Chart.SeriesCollection.Add(getRandomData());
Function getRandomData() As SeriesCollection Dim SC As SeriesCollection = New SeriesCollection() Dim myR As Random = New Random() For a As Integer = 1 To 4 Dim s As Series = New Series() s.Name = "Series " & a For b As Integer = 1 To 5 Dim e As Element = New Element() e.Name = "E " & b e.YValue = myR.Next(50) s.Elements.Add(e) Next b SC.Add(s) Next a
Return SC End Function
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs) ' Set the title. 'Chart.Title="My Chart";
' Set the Depth Chart.Depth = 5
' Set 3D Chart.Use3D = False
' set the x axis clustering Chart.XAxis.ClusterColumns = False
' Set a default transparency Chart.DefaultSeries.DefaultElement.Transparency = 20
' Set the Default Series Type Chart.DefaultSeries.Type = SeriesType.AreaLine
' Set the y Axis Scale Chart.YAxis.Scale = Scale.Stacked
' Set the x axis label Chart.XAxis.Label.Text="X Axis Label"
' Set the y axis label Chart.YAxis.Label.Text="Y Axis Label"
' Set the directory where the images will be stored. Chart.TempDirectory="temp"
' Set he chart size. Chart.Width = 600 Chart.Height = 350
' Add the random data. Chart.SeriesCollection.Add(getRandomData())
End Sub </script> <html xmlns="http://www.w3.org/1999/xhtml"><head><title>Gallery Sample</title></head> <body> <div style="text-align:center"> <dotnet:Chart id="Chart" runat="server"/> </div> </body> </html>
