Aqua Bubble Shape

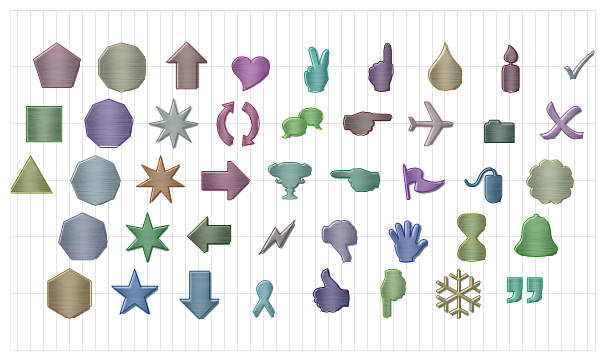

Demonstrates shaded BubbleShape series with shading effect mode two.
<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING.Mapping" %>
<script runat="server">
void Page_Load(Object sender,EventArgs e)
{
// Demonstrates shaded BubbleShape series with shading effect mode two.
Chart.TempDirectory = "temp";
Chart.Debug = true;
Chart.Type = ChartType.Combo;
Chart.Size = "600x350";
//Chart.Title = ".netCHARTING Sample";
Chart.DefaultSeries.Type = SeriesType.BubbleShape;
Chart.ShadingEffectMode = ShadingEffectMode.Two;
Chart.DefaultElement.ShapeType = ShapeType.None;
Chart.YAxis.ClearValues = true;
Chart.XAxis.ClearValues = true;
Chart.YAxis.ScaleRange = new ScaleRange(-1, 5);
// *DYNAMIC DATA NOTE*
// This sample uses random data to populate the chart. To populate
// a chart with database data see the following resources:
// - Help File > Getting Started > Data Tutorials
// - DataEngine Class in the help file
// - Sample: features/DataEngine.aspx
SeriesCollection mySC = getRandomData();
Chart.MaximumBubbleSize = 50;
Chart.LegendBox.Visible = false;
// Add the random data.
Chart.SeriesCollection.Add(mySC);
mySC[0].PaletteName = Palette.Three;
string[] shapeNames = new string[] {"Triangle",
"Cube",
"Pentagon",
"Hexagon",
"Heptagon",
"Octagon",
"Nonagon",
"Decagon",
"FivePointStar",
"SixPointStar",
"SevenPointStar",
"EightPointStar",
"ArrowUp",
"ArrowDown",
"ArrowLeft",
"ArrowRight",
"Refresh",
"Heart",
"Ribbon",
"Zap",
"Trophy",
"Chat",
"Peace",
"ThumbsUp",
"ThumbsDown",
"PointLeft",
"PointRight",
"PointUp",
"PointDown",
"Hand",
"Flag",
"Plane",
"Drop",
"Flake",
"Hourglass",
"Mouse",
"Folder",
"Candle",
"Quote",
"Bell",
"Clover",
"X",
"Check" };
mySC[0][0].Name = "";
for(int i = 1; i < mySC[0].Elements.Count-1; i++)
{
mySC[0][i].ShapeType = (ShapeType)ShapeType.Parse(typeof(ShapeType),shapeNames[i-1]);
mySC[0][i].Name = shapeNames[i-1];
}
}
SeriesCollection getRandomData()
{
Random myR = new Random(1);
SeriesCollection SC = new SeriesCollection();
for(int a = 1; a < 2; a++)
{
Series s = new Series("Series " + a.ToString());
for(int b = 1; b < 46; b++)
{
Element e = new Element("Element " + b.ToString());
e.YValue = b%5;
s.Elements.Add(e);
e.BubbleSize = 5;
}
SC.Add(s);
}
return SC;
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head><title>.netCHARTING Sample</title></head>
<body>
<div align="center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING.Mapping" %>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates shaded BubbleShape series with shading effect mode two.
Chart.TempDirectory = "temp"
Chart.Debug = True
Chart.Type = ChartType.Combo
Chart.Size = "600x350"
'Chart.Title = ".netCHARTING Sample";
Chart.DefaultSeries.Type = SeriesType.BubbleShape
Chart.ShadingEffectMode = ShadingEffectMode.Two
Chart.DefaultElement.ShapeType = ShapeType.None
Chart.YAxis.ClearValues = True
Chart.XAxis.ClearValues = True
Chart.YAxis.ScaleRange = New ScaleRange(-1, 5)
' *DYNAMIC DATA NOTE*
' This sample uses random data to populate the chart. To populate
' a chart with database data see the following resources:
' - Help File > Getting Started > Data Tutorials
' - DataEngine Class in the help file
' - Sample: features/DataEngine.aspx
Dim mySC As SeriesCollection = getRandomData()
Chart.MaximumBubbleSize = 50
Chart.LegendBox.Visible = False
' Add the random data.
Chart.SeriesCollection.Add(mySC)
mySC(0).PaletteName = Palette.Three
Dim shapeNames As String() = New String() {"Triangle", "Cube", "Pentagon", "Hexagon", "Heptagon", "Octagon", "Nonagon", "Decagon", "FivePointStar", "SixPointStar", "SevenPointStar", "EightPointStar", "ArrowUp", "ArrowDown", "ArrowLeft", "ArrowRight", "Refresh", "Heart", "Ribbon", "Zap", "Trophy", "Chat", "Peace", "ThumbsUp", "ThumbsDown", "PointLeft", "PointRight", "PointUp", "PointDown", "Hand", "Flag", "Plane", "Drop", "Flake", "Hourglass", "Mouse", "Folder", "Candle", "Quote", "Bell", "Clover", "X", "Check" }
mySC(0)(0).Name = ""
For i As Integer = 1 To mySC(0).Elements.Count-2
mySC(0)(i).ShapeType = CType(ShapeType.Parse(GetType(ShapeType),shapeNames(i-1)), ShapeType)
mySC(0)(i).Name = shapeNames(i-1)
Next i
End Sub
Function getRandomData() As SeriesCollection
Dim myR As Random = New Random(1)
Dim SC As SeriesCollection = New SeriesCollection()
For a As Integer = 1 To 1
Dim s As Series = New Series("Series " & a.ToString())
For b As Integer = 1 To 45
Dim e As Element = New Element("Element " & b.ToString())
e.YValue = b Mod 5
s.Elements.Add(e)
e.BubbleSize = 5
Next b
SC.Add(s)
Next a
Return SC
End Function
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head><title>.netCHARTING Sample</title></head>
<body>
<div align="center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
