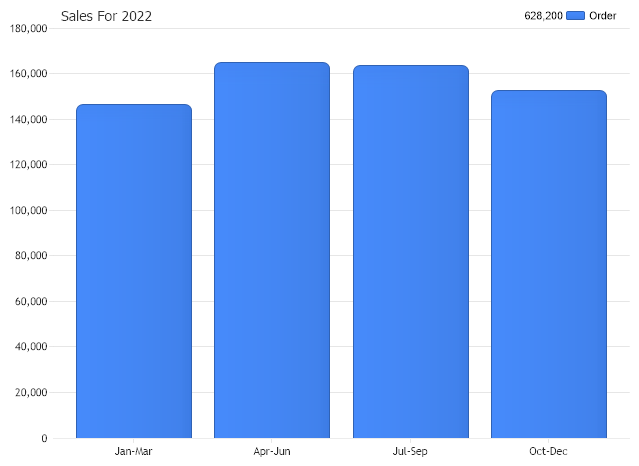

<script runat="server"> void Page_Load(Object sender,EventArgs e) { //set global properties Chart.Title="Sales"; Chart.TempDirectory="temp"; Chart.Debug=true; Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings["DNCConnectionString"]; Chart.DefaultSeries.StartDate=new System.DateTime(2022,1,1,0,0,0); Chart.DefaultSeries.EndDate = new System.DateTime(2022,12,31,23,59,59); Chart.DateGrouping = TimeInterval.Quarter; Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend; //Add a series Chart.Series.Name="Order"; Chart.Series.SqlStatement= @"SELECT OrderDate,Sum(Total) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# Group By OrderDate ORDER BY OrderDate"; Chart.SeriesCollection.Add();
<script runat="server"> Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs) 'set global properties Chart.Title="Sales" Chart.TempDirectory="temp" Chart.Debug=True Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings("DNCConnectionString") Chart.DefaultSeries.StartDate = New System.DateTime(2022,1,1,0,0,0) Chart.DefaultSeries.EndDate = New System.DateTime(2022,12,31,23,59,59) Chart.DateGrouping = TimeInterval.Quarter Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend 'Add a series Chart.Series.Name="Order" Chart.Series.SqlStatement= "SELECT OrderDate,Sum(Total) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# Group By OrderDate ORDER BY OrderDate" Chart.SeriesCollection.Add()
End Sub </script> <html xmlns="http://www.w3.org/1999/xhtml"><head><title>Date Grouping By Quarter Sample</title></head> <body> <div style="text-align:center"> <dotnet:Chart id="Chart" runat="server"/> </div> </body> </html>
