//Add a series Chart.Series.Name="Items"; Chart.Series.SqlStatement= @"SELECT OrderDate,Sum(Quantity) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Orders.OrderDate ORDER BY Orders.OrderDate"; Chart.SeriesCollection.Add();

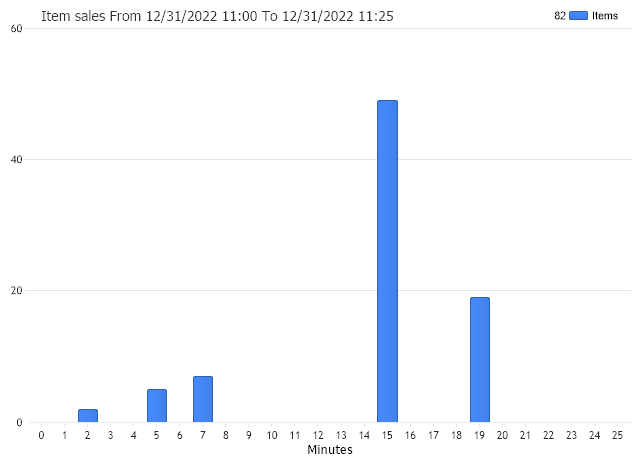

<script runat="server"> Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs) 'set global properties Chart.Title="Item sales" Chart.ChartArea.XAxis.Label.Text="Minutes" Chart.TempDirectory="temp" Chart.Debug=True Chart.DateGrouping = TimeInterval.Minutes Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend
Chart.DefaultSeries.ConnectionString = ConfigurationManager.AppSettings("DNCConnectionString") Chart.DefaultSeries.StartDate = New System.DateTime(2022,12,31,11,00,00) Chart.DefaultSeries.EndDate = New System.DateTime(2022,12,31,11,25,59) Chart.OverlapFooter=False
'Add a series Chart.Series.Name="Items" Chart.Series.SqlStatement= "SELECT OrderDate,Sum(Quantity) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Orders.OrderDate ORDER BY Orders.OrderDate" Chart.SeriesCollection.Add()
End Sub </script> <html xmlns="http://www.w3.org/1999/xhtml"> <head> <title>Date Grouping By Minutes Sample</title> </head> <body> <div style="text-align:center"> <dotnet:Chart id="Chart" runat="server"/> </div> </body> </html>
