Progress Gauge Options

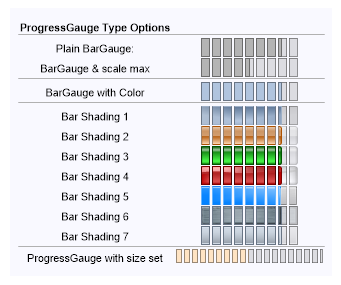

Demonstrates several features of the ProgressGauge microChart.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING.Mapping" %>

<script runat="server">

void Page_Load(Object sender, EventArgs e)
{
// Demonstrates several features of the ProgressGauge microChart.

Chart.TempDirectory = "temp";
Chart.Background.Color = Color.FromArgb(249,249,255);
Chart.Size = "340x280";

string s = "<block fStyle='Bold'>ProgressGauge Type Options<block><hr>";
s += "Plain BarGauge: <Chart:ProgressGauge value='10'>";

// Setting a scale maximum value
s += "<row>BarGauge & scale max <Chart:ProgressGauge value='10' max='20'><hr>";

// Specifying a color
s += "<row>BarGauge with Color <Chart:ProgressGauge value='10' color='LightSteelBlue' ><hr>";

// Bar Gauge Shading Effect Modes.
s += "<row>Bar Shading 1 <Chart:ProgressGauge value='10' shading='1' color='LightSteelBlue'>";
s += "<row>Bar Shading 2 <Chart:ProgressGauge value='10' shading='2' color='PeachPuff'>";
s += "<row>Bar Shading 3 <Chart:ProgressGauge value='10' shading='3' color='DarkGreen'>";
s += "<row>Bar Shading 4 <Chart:ProgressGauge value='10' shading='4' color='DarkRed'>";
s += "<row>Bar Shading 5 <Chart:ProgressGauge value='10' shading='5' color='DodgerBlue'>";
s += "<row>Bar Shading 6 <Chart:ProgressGauge value='10' shading='6' color='LightSteelBlue'>";
s += "<row>Bar Shading 7 <Chart:ProgressGauge value='10' shading='7' color='LightSteelBlue'><hr>";

// Specifying a size
s += "<row>ProgressGauge with size set<Chart:ProgressGauge value='10' max='20' width='150' height='15' color='Bisque'>";
Chart.ObjectChart = new dotnetCHARTING.Label(s);
}

</script>

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>

<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING.Mapping" %>

<script runat="server">

Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates several features of the ProgressGauge microChart.

Chart.TempDirectory = "temp"
Chart.Background.Color = Color.FromArgb(249,249,255)
Chart.Size = "340x280"

Dim s As String = "<block fStyle='Bold'>ProgressGauge Type Options<block><hr>"
s &= "Plain BarGauge: <Chart:ProgressGauge value='10'>"

' Setting a scale maximum value
s &= "<row>BarGauge & scale max <Chart:ProgressGauge value='10' max='20'><hr>"

' Specifying a color
s &= "<row>BarGauge with Color <Chart:ProgressGauge value='10' color='LightSteelBlue' ><hr>"

' Bar Gauge Shading Effect Modes.
s &= "<row>Bar Shading 1 <Chart:ProgressGauge value='10' shading='1' color='LightSteelBlue'>"
s &= "<row>Bar Shading 2 <Chart:ProgressGauge value='10' shading='2' color='PeachPuff'>"
s &= "<row>Bar Shading 3 <Chart:ProgressGauge value='10' shading='3' color='DarkGreen'>"
s &= "<row>Bar Shading 4 <Chart:ProgressGauge value='10' shading='4' color='DarkRed'>"
s &= "<row>Bar Shading 5 <Chart:ProgressGauge value='10' shading='5' color='DodgerBlue'>"
s &= "<row>Bar Shading 6 <Chart:ProgressGauge value='10' shading='6' color='LightSteelBlue'>"
s &= "<row>Bar Shading 7 <Chart:ProgressGauge value='10' shading='7' color='LightSteelBlue'><hr>"

' Specifying a size
s &= "<row>ProgressGauge with size set<Chart:ProgressGauge value='10' max='20' width='150' height='15' color='Bisque'>"
Chart.ObjectChart = New dotnetCHARTING.Label(s)
End Sub

</script>

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>

Sample FilenameGallery/MicroProgressGaugeOptions.aspx
Version5.2
Uses DatabaseNo
