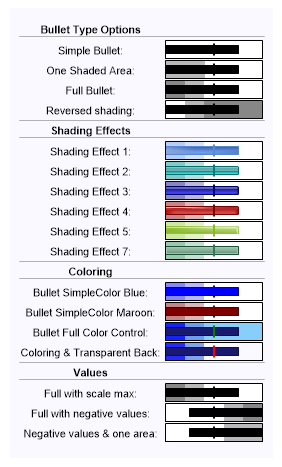

Bullet Options
Demonstrates several features of the bullet microChart.
<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
void Page_Load(Object sender, EventArgs e)
{
// Demonstrates several features of the bullet microChart.
Chart.TempDirectory = "temp";
Chart.Background.Color = Color.FromArgb(249,249,255);
Chart.Size = "280x460";
// Bullet types.
string s = "<block fStyle='Bold'>Bullet Type Options<block><hr>";
s += "Simple Bullet: <Chart:Bullet values='15,10' >";
s += "<row>One Shaded Area: <Chart:Bullet values='15,10,8' >";
s += "<row>Full Bullet: <Chart:Bullet values='15,10,4,8' >";
s += "<row>Reversed shading: <Chart:Bullet values='15,10,8,4' ><hr>";
// Bullet ShadingEffect modes.
s += "<block fStyle='Bold'>Shading Effects<block><hr>";
s += "<row>Shading Effect 1: <Chart:Bullet values='15,10,4,8' shading='1' color='CornflowerBlue'>";
s += "<row>Shading Effect 2: <Chart:Bullet values='15,10,4,8' shading='2' color='DarkCyan'>";
s += "<row>Shading Effect 3: <Chart:Bullet values='15,10,4,8' shading='3' color='Navy'>";
s += "<row>Shading Effect 4: <Chart:Bullet values='15,10,4,8' shading='4' color='DarkRed'>";
s += "<row>Shading Effect 5: <Chart:Bullet values='15,10,4,8' shading='5' color='YellowGreen'>";
s += "<row>Shading Effect 7: <Chart:Bullet values='15,10,4,8' shading='7' color='SeaGreen'><hr>";
// Specifying colors
s += "<block fStyle='Bold'>Coloring<block><hr>";
s += "<row>Bullet SimpleColor Blue: <Chart:Bullet values='15,10,4,8' color='Blue'>";
s += "<row>Bullet SimpleColor Maroon: <Chart:Bullet values='15,10,4,8' color='Maroon'>";
s += "<row>Bullet Full Color Control: <Chart:Bullet values='15,10,4,8' Colors='MidnightBlue,Green,Blue,CornflowerBlue,LightSkyBlue'>";
s += "<row>Coloring & Transparent Back: <Chart:Bullet values='15,10,4,8' Colors='MidnightBlue,Red,Blue,CornflowerBlue,Transparent'><hr>";
// Using negative values
s += "<block fStyle='Bold'>Values<block><hr>";
s += "<row>Full with scale max: <Chart:Bullet values='15,10,4,8' max='20'>";
s += "<row>Full with negative values: <Chart:Bullet values='-15,-10,-4,-8' >";
s += "<row>Negative values & one area: <Chart:Bullet values='-15,-10,-8' >";
Chart.ObjectChart = new dotnetCHARTING.Label(s);
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates several features of the bullet microChart.
Chart.TempDirectory = "temp"
Chart.Background.Color = Color.FromArgb(249,249,255)
Chart.Size = "280x460"
' Bullet types.
Dim s As String = "<block fStyle='Bold'>Bullet Type Options<block><hr>"
s &= "Simple Bullet: <Chart:Bullet values='15,10' >"
s &= "<row>One Shaded Area: <Chart:Bullet values='15,10,8' >"
s &= "<row>Full Bullet: <Chart:Bullet values='15,10,4,8' >"
s &= "<row>Reversed shading: <Chart:Bullet values='15,10,8,4' ><hr>"
' Bullet ShadingEffect modes.
s &= "<block fStyle='Bold'>Shading Effects<block><hr>"
s &= "<row>Shading Effect 1: <Chart:Bullet values='15,10,4,8' shading='1' color='CornflowerBlue'>"
s &= "<row>Shading Effect 2: <Chart:Bullet values='15,10,4,8' shading='2' color='DarkCyan'>"
s &= "<row>Shading Effect 3: <Chart:Bullet values='15,10,4,8' shading='3' color='Navy'>"
s &= "<row>Shading Effect 4: <Chart:Bullet values='15,10,4,8' shading='4' color='DarkRed'>"
s &= "<row>Shading Effect 5: <Chart:Bullet values='15,10,4,8' shading='5' color='YellowGreen'>"
s &= "<row>Shading Effect 7: <Chart:Bullet values='15,10,4,8' shading='7' color='SeaGreen'><hr>"
' Specifying colors
s &= "<block fStyle='Bold'>Coloring<block><hr>"
s &= "<row>Bullet SimpleColor Blue: <Chart:Bullet values='15,10,4,8' color='Blue'>"
s &= "<row>Bullet SimpleColor Maroon: <Chart:Bullet values='15,10,4,8' color='Maroon'>"
s &= "<row>Bullet Full Color Control: <Chart:Bullet values='15,10,4,8' Colors='MidnightBlue,Green,Blue,CornflowerBlue,LightSkyBlue'>"
s &= "<row>Coloring & Transparent Back: <Chart:Bullet values='15,10,4,8' Colors='MidnightBlue,Red,Blue,CornflowerBlue,Transparent'><hr>"
' Using negative values
s &= "<block fStyle='Bold'>Values<block><hr>"
s &= "<row>Full with scale max: <Chart:Bullet values='15,10,4,8' max='20'>"
s &= "<row>Full with negative values: <Chart:Bullet values='-15,-10,-4,-8' >"
s &= "<row>Negative values & one area: <Chart:Bullet values='-15,-10,-8' >"
Chart.ObjectChart = New dotnetCHARTING.Label(s)
End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>
