Custom Type Images

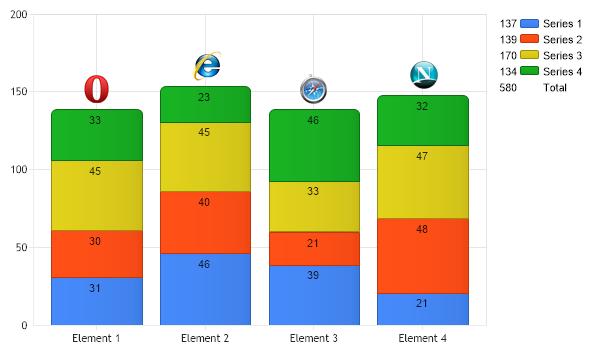

Demonstrates how to label the total values of column stacks. Chart.

Download Show C# Code Show VB Code

<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
<script runat="server">

void Page_Load(Object sender,EventArgs e)
{

Chart.Type = ChartType.Combo;//Horizontal;
Chart.Size = "600x350";
Chart.TempDirectory = "temp";
Chart.Debug = true;
//Chart.Title = ".netCHARTING Sample";

// Demonstrates how to label the total values of column stacks.

Chart.DefaultElement.ShowValue = true;
Chart.YAxis.Scale = Scale.Stacked;
Chart.YAxis.Maximum = 200;

// *DYNAMIC DATA NOTE*
// This sample uses random data to populate the chart. To populate
// a chart with database data see the following resources:
// - Classic samples folder
// - Help File > Data Tutorials
// - Sample: features/DataEngine.aspx
SeriesCollection mySC = getRandomData();

// Clear the secondary alignment options of element labels.
foreach(Series ser in mySC)
{
ser.DefaultElement.SmartLabel.AlignmentSecondary.Clear();
foreach(Element el in ser.Elements)
{
el.SmartLabel.AlignmentSecondary.Clear();
}
}

//Chart.DefaultElement.SmartLabel.Text = "<img:../../images/us.png>";

// Create a total series that is invisible. Just used to place the totals labels.
Series total = mySC.Calculate("Total",Calculation.Sum);
total[0].SmartLabel.Text = "<img:../../images/browserO.png>";
total[1].SmartLabel.Text = "<img:../../images/browserIE.png>";
total[2].SmartLabel.Text = "<img:../../images/browserS.png>";
total[3].SmartLabel.Text = "<img:../../images/browserN.png>";
total.Type = SeriesType.Marker;

total.DefaultElement.Marker.Type = ElementMarkerType.None;

// Add the random data.
Chart.SeriesCollection.Add(mySC);
Chart.SeriesCollection.Add(total);

}

SeriesCollection getRandomData()
{
SeriesCollection SC = new SeriesCollection();
Random myR = new Random(7);
for(int a = 1; a < 5; a++)
{
Series s = new Series();
s.Name = "Series " + a.ToString();
for(int b = 1; b < 5; b++)
{
Element e = new Element();
e.Name = "Element " + b.ToString();
e.YValue = myR.Next(20,50);
s.Elements.Add(e);
}
SC.Add(s);
}

return SC;
}
</script>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server" Width="568px" Height="344px">
</dotnet:Chart>
</div>
</body>
</html>

<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
<script runat="server">

Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)

Chart.Type = ChartType.Combo 'Horizontal;
Chart.Size = "600x350"
Chart.TempDirectory = "temp"
Chart.Debug = True
'Chart.Title = ".netCHARTING Sample";

' Demonstrates how to label the total values of column stacks.

Chart.DefaultElement.ShowValue = True
Chart.YAxis.Scale = Scale.Stacked
Chart.YAxis.Maximum = 200

' *DYNAMIC DATA NOTE*
' This sample uses random data to populate the chart. To populate
' a chart with database data see the following resources:
' - Classic samples folder
' - Help File > Data Tutorials
' - Sample: features/DataEngine.aspx
Dim mySC As SeriesCollection = getRandomData()

' Clear the secondary alignment options of element labels.
For Each ser As Series In mySC
ser.DefaultElement.SmartLabel.AlignmentSecondary.Clear()
For Each el As Element In ser.Elements
el.SmartLabel.AlignmentSecondary.Clear()
Next el
Next ser

'Chart.DefaultElement.SmartLabel.Text = "<img:../../images/us.png>";

' Create a total series that is invisible. Just used to place the totals labels.
Dim total As Series = mySC.Calculate("Total",Calculation.Sum)
total(0).SmartLabel.Text = "<img:../../images/browserO.png>"
total(1).SmartLabel.Text = "<img:../../images/browserIE.png>"
total(2).SmartLabel.Text = "<img:../../images/browserS.png>"
total(3).SmartLabel.Text = "<img:../../images/browserN.png>"
total.Type = SeriesType.Marker

total.DefaultElement.Marker.Type = ElementMarkerType.None

' Add the random data.
Chart.SeriesCollection.Add(mySC)
Chart.SeriesCollection.Add(total)

End Sub

Function getRandomData() As SeriesCollection
Dim SC As SeriesCollection = New SeriesCollection()
Dim myR As Random = New Random(7)
For a As Integer = 1 To 4
Dim s As Series = New Series()
s.Name = "Series " & a.ToString()
For b As Integer = 1 To 4
Dim e As Element = New Element()
e.Name = "Element " & b.ToString()
e.YValue = myR.Next(20,50)
s.Elements.Add(e)
Next b
SC.Add(s)
Next a

Return SC
End Function
</script>
</head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server" Width="568px" Height="344px">
</dotnet:Chart>
</div>
</body>
</html>
